Installing a New Video Card
1. Do not forget to replace the master and slave cable if you are replacing two video
cards (see Figure 6 - 29 on page 6 -
2. Prepare to fit the video card into the slot by holding it at about a 30° angle.
3. The card needs to be fully into the slot, and the video card and socket have a
guide-key and pin which align to allow the card to fit securely.
26).
Upgrading The Computer
Contact Warning
Be careful not to touch
the metal pins on the
VGA card's connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module's
mance.

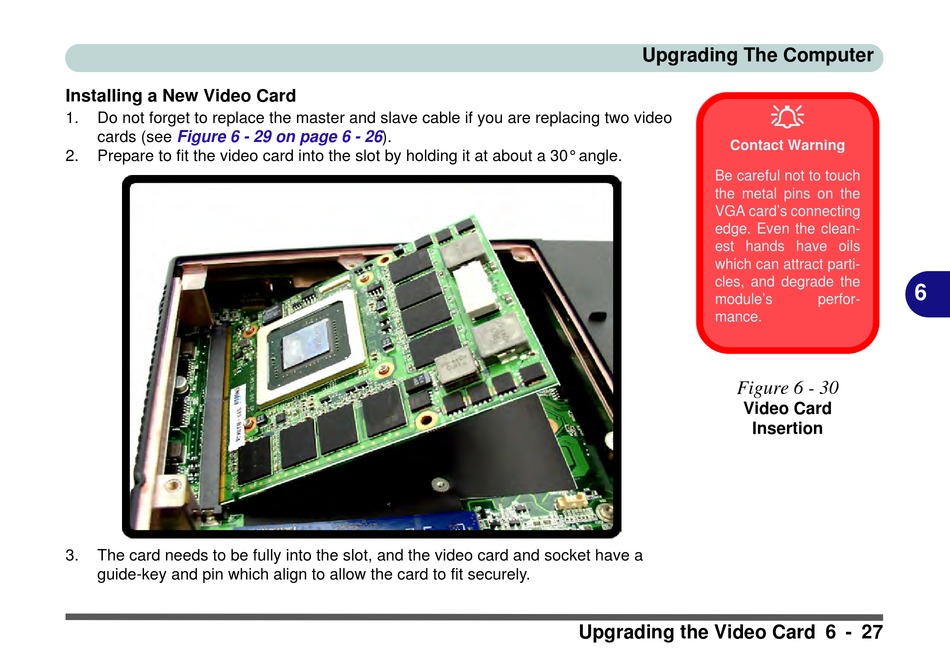

Figure 6 - 30
Video Card
Insertion
Upgrading the Video Card 6 - 27

6
perfor-
