Upgrading The Computer

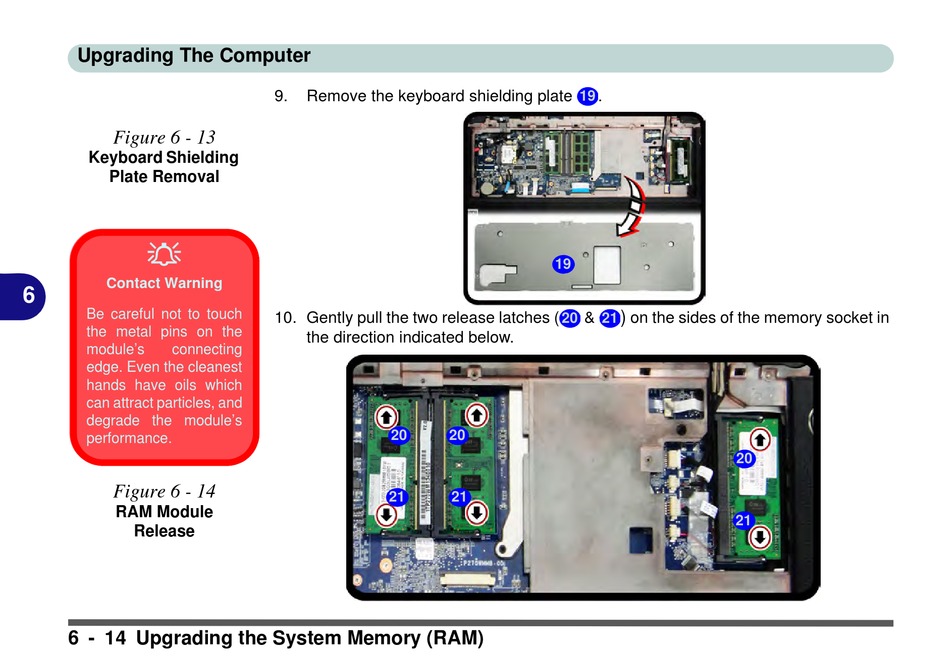

Figure 6 - 13
Keyboard Shielding
Plate Removal

Contact Warning
6
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module's
performance.
Figure 6 - 14
RAM Module
Release
6 - 14 Upgrading the System Memory (RAM)
9. Remove the keyboard shielding plate
10. Gently pull the two release latches (
the direction indicated below.
20 20
21 21
.
19
19
)
& on the sides of the memory socket in
20 21
20
21
