System Map: Left View

1
Note that the HDMI Port supports video and audio signals to attached external displays (al-
so see "HDMI Audio Configuration" on page C -
disabled when you are connecting to an external display through an HDMI connection (see
page 7 - 110).
USB 3.0 ports are denoted by their blue color; USB 2.0 ports are colored black. Note that
the USB 3.0 port requires a driver installation (see
erational under DOS.
6
The powered USB 3.0
for operating devices) when the system is off but still powered by the AC/DC adapter
plugged into a working outlet, or powered by the battery with a capacity level above 20%
(this may not work with certain devices - see page
Fn + power button (press for around 1 to 2 seconds to toggle).
4 5
3
2

HDMI Port
18). Note that THX TruStudio Pro will be
USB 3.0 Ports & USB Port Power
"USB 3.0" on page 4 -
/e-SATA port can supply power (for charging devices only, not
8 - 12). Toggle power to this port by using
7
6
5
8
7) and is not op-
System Map: Left View 1 - 17
Quick Start Guide

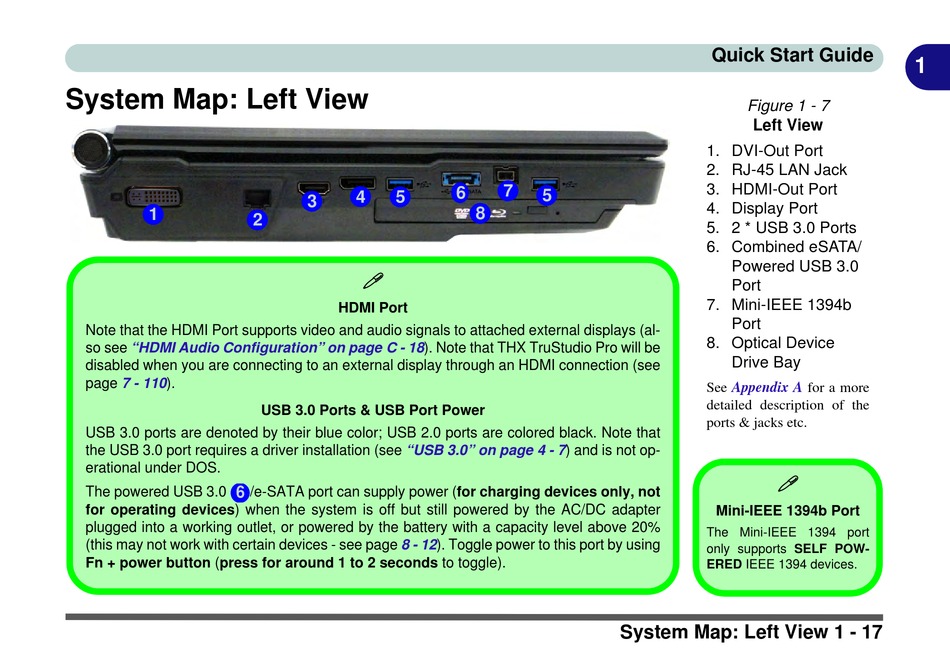

Figure 1 - 7
Left View
1. DVI-Out Port
2. RJ-45 LAN Jack
3. HDMI-Out Port
4. Display Port
5. 2 * USB 3.0 Ports
6. Combined eSATA/
Powered USB 3.0
Port
7. Mini-IEEE 1394b
Port
8. Optical Device
Drive Bay
See Appendix A for a more
detailed description of the
ports & jacks etc.

Mini-IEEE 1394b Port
The Mini-IEEE 1394 port
only supports SELF POW-
ERED IEEE 1394 devices.
1
