Storage Devices, Mouse, Audio & Printer
2

Power Safety
Before attempting to ac-
cess any of the internal
components of
computer please ensure
that the machine is not
connected to the AC
power, and that the ma-
chine is turned off. Also
ensure that all peripher-
al cables, including
phone lines, are discon-
nected from the comput-
er.

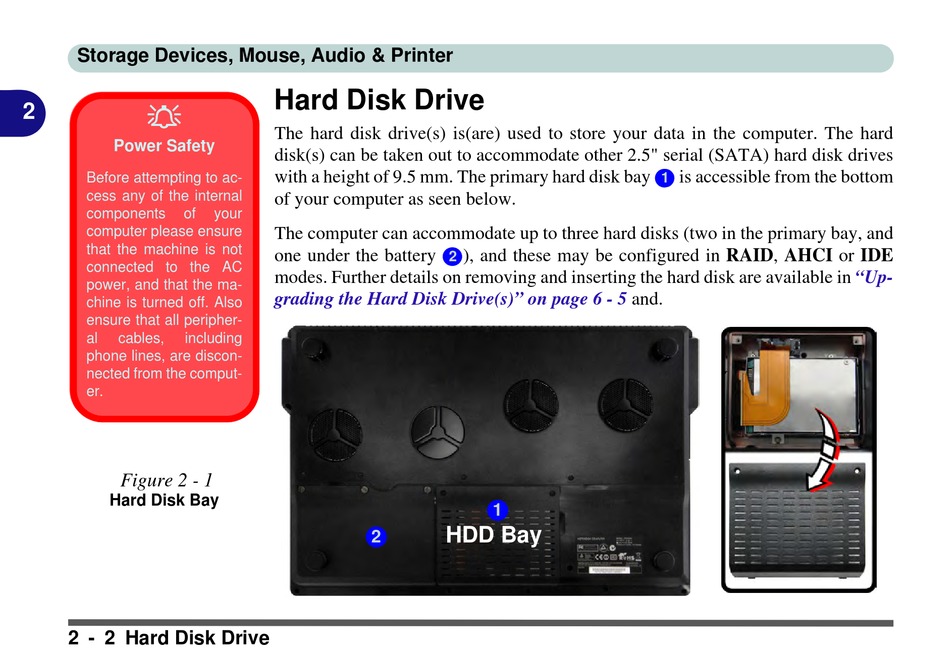

Figure 2 - 1
Hard Disk Bay

2 - 2 Hard Disk Drive

Hard Disk Drive
The hard disk drive(s) is(are) used to store your data in the computer. The hard
disk(s) can be taken out to accommodate other 2.5" serial (SATA) hard disk drives
with a height of 9.5 mm. The primary hard disk bay
of your computer as seen below.
your
The computer can accommodate up to three hard disks (two in the primary bay, and
one under the battery
modes. Further details on removing and inserting the hard disk are available in
grading the Hard Disk Drive(s)" on page 6 - 5
2
), and these may be configured in RAID, AHCI or IDE
2
1
HDD Bay
is accessible from the bottom
1
and.
"Up-
