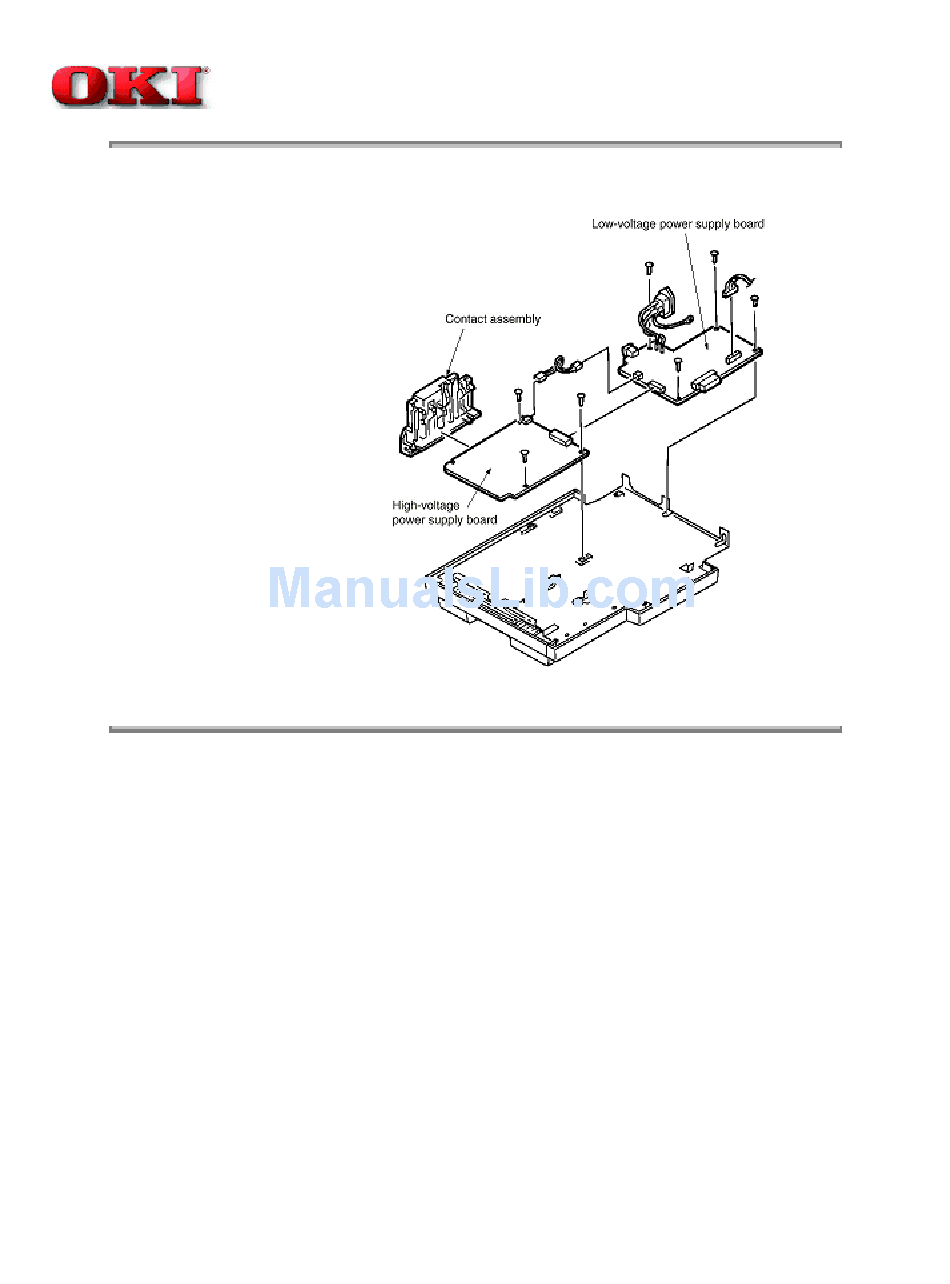

4.3.13 Contact Assembly and High-/Low Voltage Power Supply Boards
1. Remove the high-/low voltage power
supply boards by unscrewing seven
screws.
Caution: Remove both boards at the
same time. Unscrew one ground
screw and remove the ground cable
from the AC inlet.
2. Disconnect two connectors to
separate two boards.
3. Remove the contact assembly.
Caution: Never touch the pattern on
the low-voltage board.
