40 C 1: I
HAPTER NTRODUCTION
Analog Terminal
Adapters

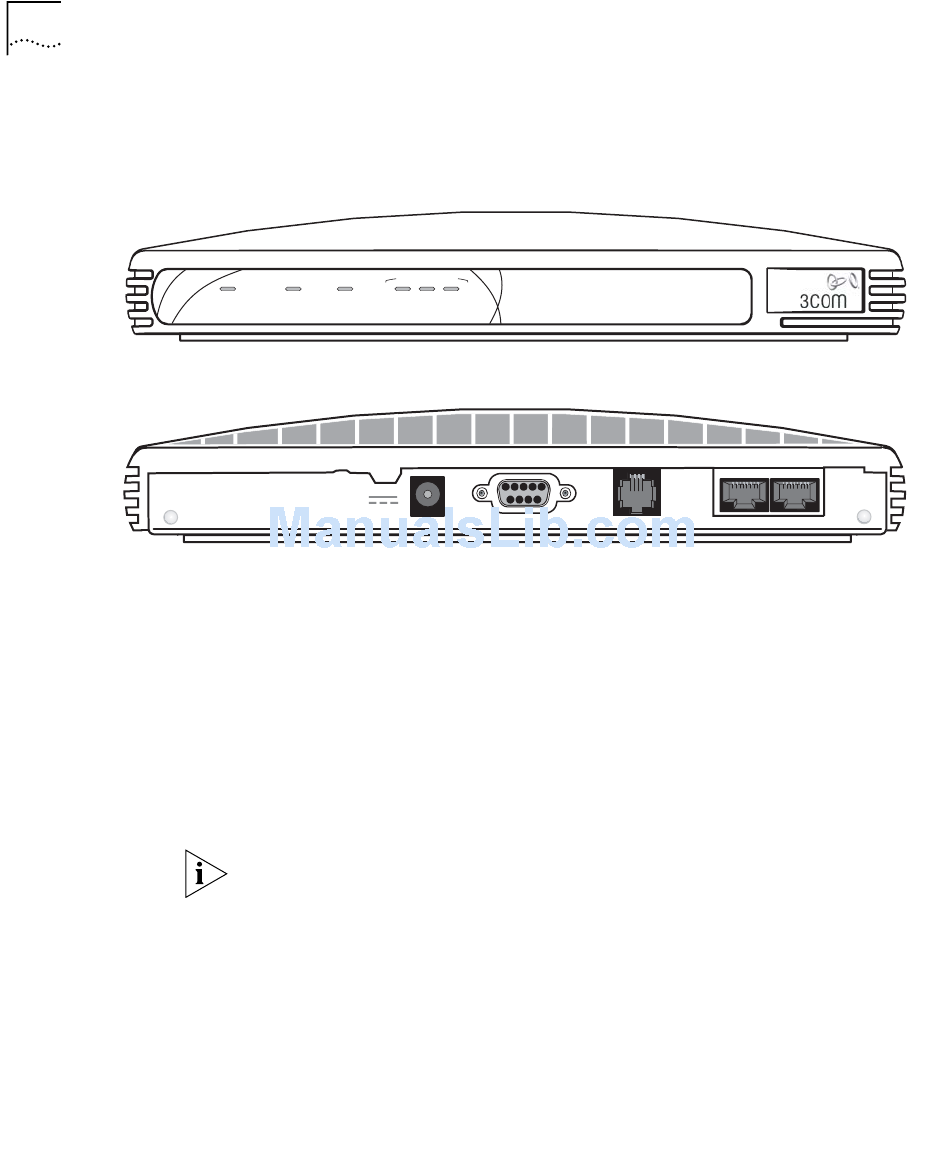

Figure 16 Analog Terminal Adapter (3C10400) — Front View
Figure 17 Analog Terminal Adapter (3C10400) — Rear View
The single-port Analog Terminal Adapter (ATA) is a desktop box that
connects an analog telephone or fax machine to an NBX system.
Power PC LAN
Link Link
24 VDC
The Analog Terminal Adapter (3C10400) has the same functions as the
3C10120B plus these features:
Power Over Ethernet (PoE) — The 3C10400 ATA can accept power
■
over the Ethernet cable. It meets the IEEE 802.3af standard for Power
over Ethernet. It can also accept power from an AC power adapter
plugged into a wall socket.
Diagnostic Port — The 3C10400 ATA has an RS232 DB9 connector
■
to which you can connect a serial cable. Using a terminal emulation
program such as Hyperterm, you can access the ATA and use
diagnostic and troubleshooting commands.
Only qualified 3Com service personnel should use the serial diagnostic
port.
The Analog Terminal Adapter
Power Light — The light below the icon for power indicates that the
■
ATA is receiving power.
POTS Status Lights (S1, S2, S3) — The POTS (Plain Old Telephone
■
Service) status lights indicate the status of the Analog Port. S3 turns
on when the analog telephone is in use. S2 blinks briefly every ten
seconds when an analog telephone is connected to the ATA. If no
POTS Status
IOIO1
(3C10400)
NBX Analog Terminal Adapter
LAN
POTS
has these lights and connectors:
PC
