116 C 3: T
HAPTER ELEPHONES AND
A C
TTENDANT ONSOLES

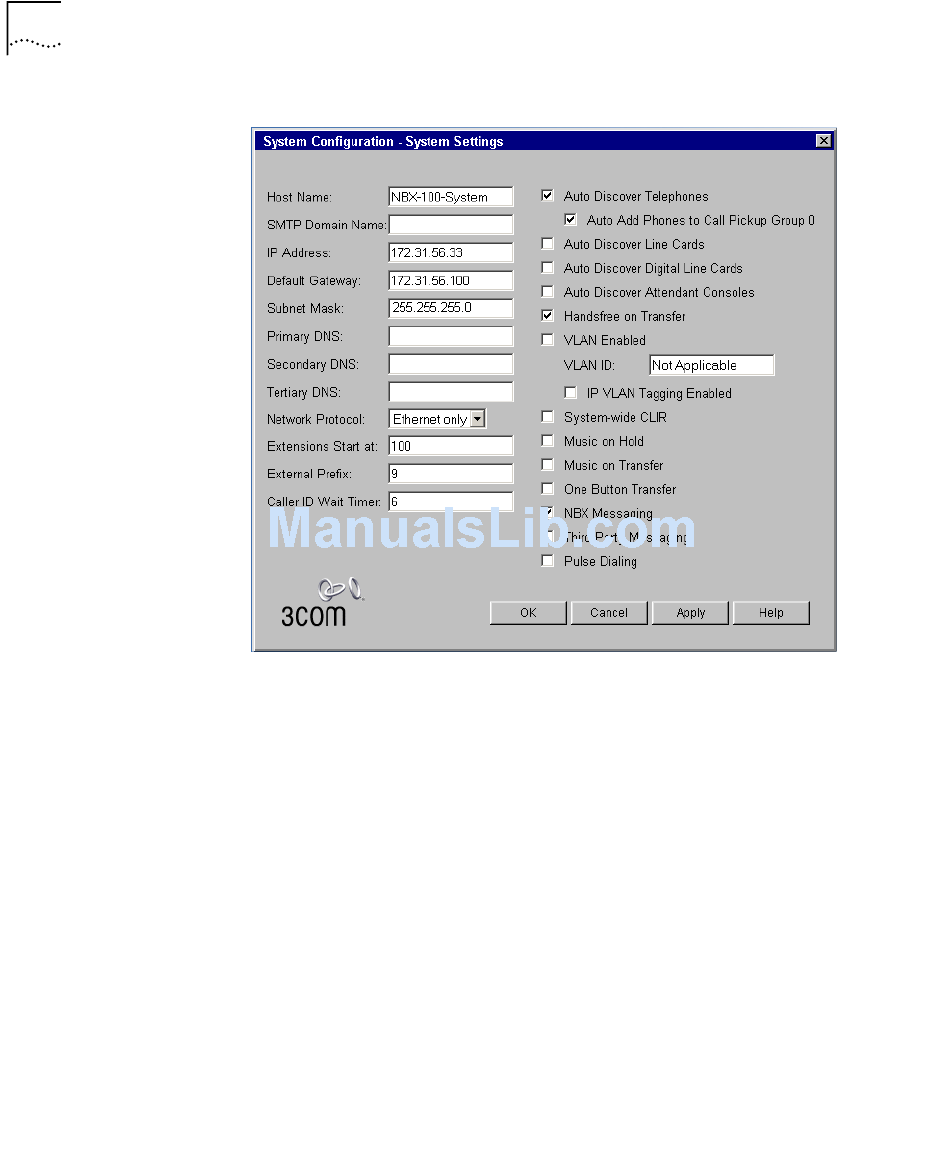

Figure 41 System Settings — System-wide Dialog Box
1 Clear all check boxes associated with Auto Discover.
2 Enable Auto Discover Attendant Consoles and click OK.
3 Wait 2 minutes (more on a SuperStack 3 NBX system that has many
devices) for the NBX system to Auto Discover the Attendant Console and
assign the extensions of all known telephones to its buttons.
When you Auto Discover an Attendant Console, the NBX system
associates it with a telephone based on the following factors:
If there are no other Attendant Consoles on the system, the Auto
■
Discover process associates the new Attendant Console with the
3Com Business or Basic Telephone that has the lowest extension
number.
If one or more Attendant Consoles are already configured in the
■
system, the Auto Discover process finds all 3Com Telephones that
currently have an associated Attendant Console and associates the
new Attendant Console with the telephone that has the lowest
extension number. For example, if the existing Attendant Console is
