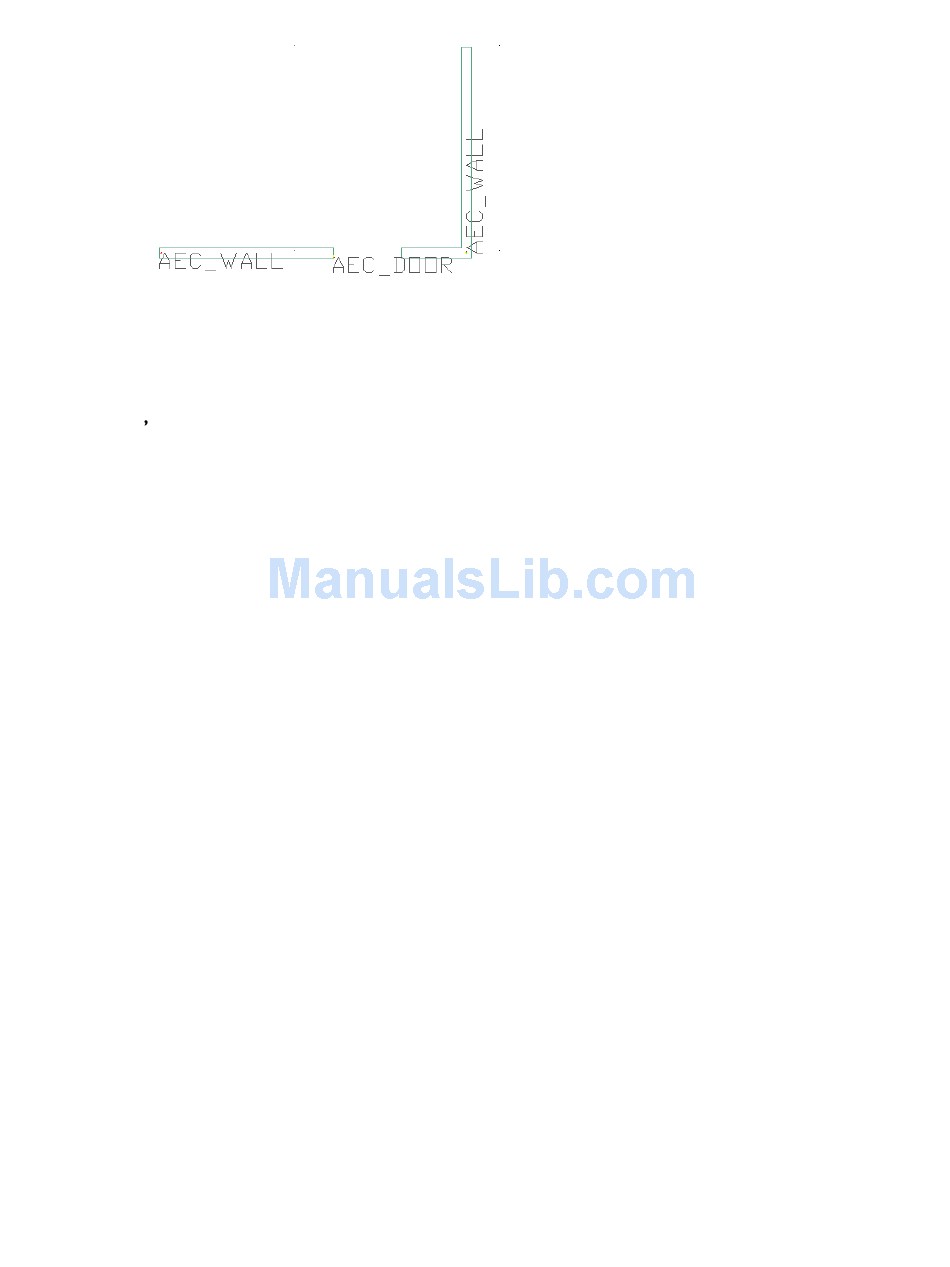

Displaying the names of objects, including those that are not shown

4 To turn off object names, enter displaydxfname.

5 Enter n (No).

Object Linetype Displayed Incorrectly

Why doesn t the linetype for my object display the way I expect?

The linetype scale for components of AEC objects works with the AutoCAD linetype scale specified in the LTSCALE

variable to control the linetype of AEC objects. The default value for linetype scale of all components of AEC objects

is 1.0. This value is multiplied by the current value for LTSCALE to produce the linetype scale of object components.

For example, if the LTSCALE value is 48.0, and the linetype scale in the display properties of an object is 1.0 for an

object component, then the linetype scale of the component is 48.0. If you change the linetype scale in the display

properties to 2.0, the linetype scale of the component is effectively 96, or 2.0 x 48.

Object Linetype Displayed Incorrectly | 487
