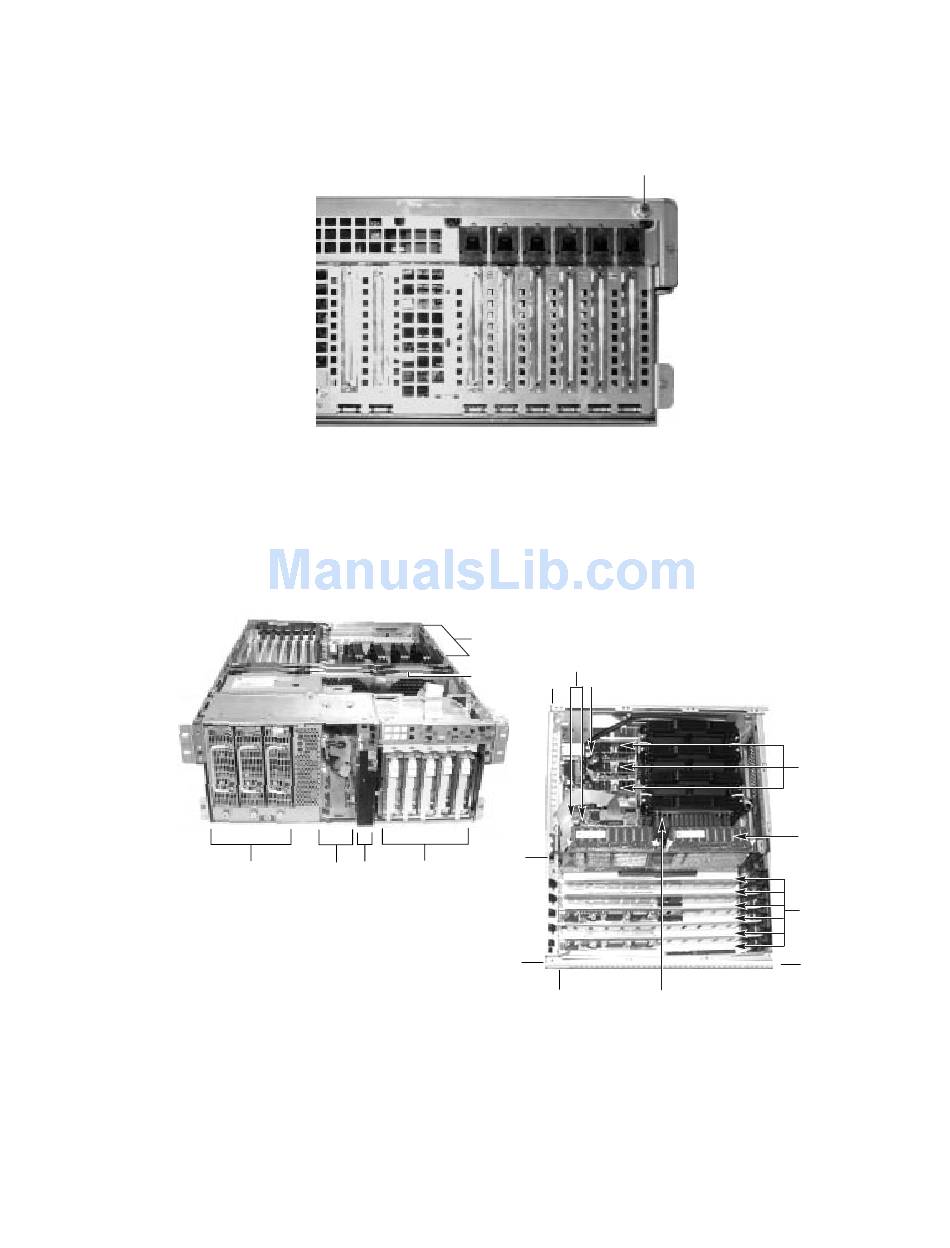

The top cover is held in place by two thumbscrews, each located at the top rear corner of the
chassis. One of two thumbscrews is noted by "A" in Figure 15.
A bezel snaps on to the front of the chassis and allows adequate airflow to cool the system
components. The door in the bezel provides user access to hard drives and the peripheral bay.
Access to the power supplies is provided by removing the front bezel completely. Figure 16 gives
an overhead view of the system with the top cover and front bezel removed.
C
Figure 16. SRKA4 MP Server
System Without Covers and Bezel
36
Figure 15. One of Two Thumbscrews Securing Top Cover
A1 A2 B
A
OM09935
E
E3
D
E7
I
E5
H
G
Figure 16a. Overhead View of System
and E-Bay
SRKA4/ISP4400 Server System Product Guide
E6
E2
E4
F
E1
OM09946
