Rear Panel I/O Ports and Features

M
A.
B.
C. Hot-plug 64-bit, 33 MHz PCI add-in board slots
D. Hot-plug 64-bit, 66/33 MHz PCI add-in board slots
E.
F.
G. USB ports 0 (upper) and 1 (lower), 4-pin connectors
H. NIC RJ45 connector
I.
J.
K.
L.
M. PS/2-compatible mouse connector
N. HW push button
O. PCI green and amber LEDs on the inside of the chassis
A Detailed Description of Chassis Features
B
A
L K G
I F
J H

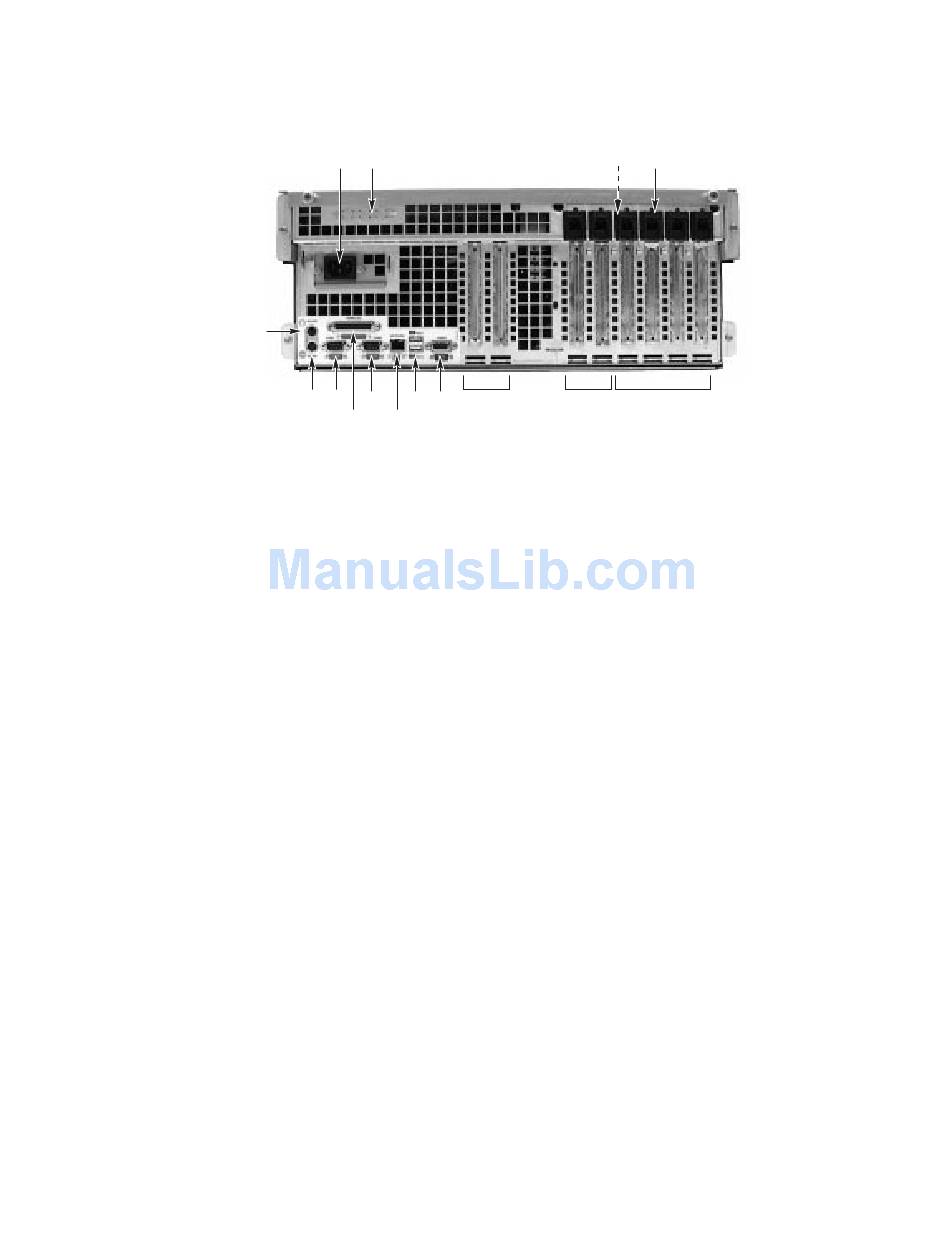

Figure 22. Rear Panel I/O Ports and Features
AC input power connector
Two optional external SCSI connector ports
The figure shows only one connector port, but your system has two
Non-hot-plug 32-bit, 33 MHz PCI add-in board slots
These slots can also accept an optional Intelligent Chassis Management
Bus (ICMB) SEMCONN 6-pin connector in/out connector, port 1
Video connector
Serial port 2 (COM2), 9-pin RS-232 connector
IEEE 1284 compliant, 25-pin bi-directional parallel connector
Serial port 1 (COM1), 9-pin RS-232 connector
PS/2-compatible keyboard connector
O
N
D
E C
