1. Open the front bezel door by simultaneously pulling out on the raised lip of the front bezel
door latch. In Figure 9, the door latch is noted by "A"; the tab used to secure the front bezel
door is noted by "B".

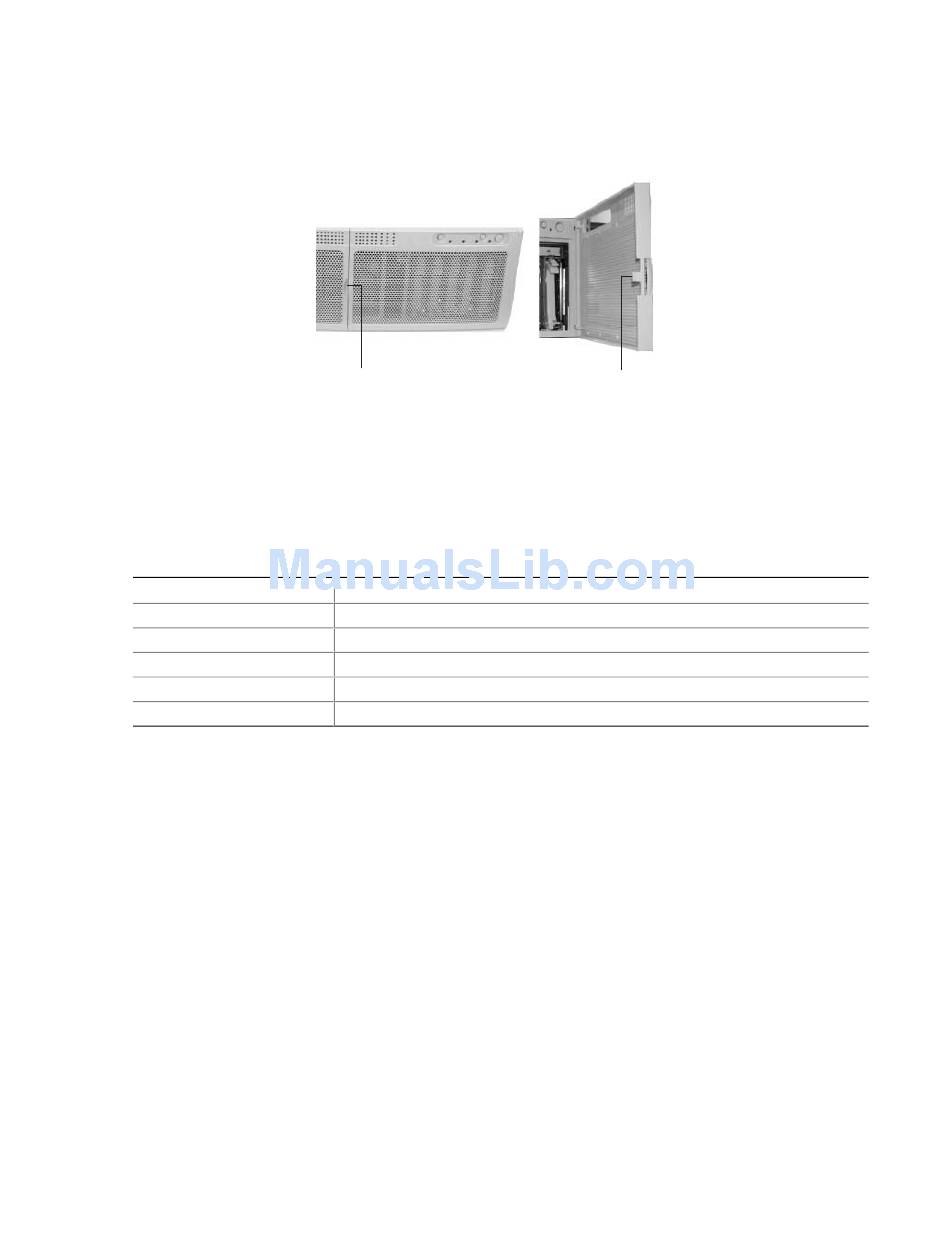

Figure 9. Front of Chassis with
2. Determine what drive needs to be removed. If necessary, use the LED states below to make
this determination.
Table 3.

LED States for Each Hard Drive

LED State
Solid green
Flashing green
Solid yellow
Flashing yellow
Off
3. Depress the handle lock with your thumb.
4. Gently pull the locking handle away from the chassis until the handle disengages.
Removing and Installing User Serviceable Components
A
Bezel Door Closed
Status
The hard drive is present and powered on.
The hard drive is active.
There is an asserted fault status on the hard drive.
A rebuild of the hard drive is in progress.
The hard drive is not powered on.
B
OM09941
Figure 9a. Front Right Side of
Chassis with Bezel Door Open
27
