Peripheral Devices

Removing a Drive from the Configurable Media Bay

The configurable media bay holds either a 1.44 MB, 3.5-inch diskette drive OR both a .5-inch
slim-line floppy and .5-inch slim-line CD-ROM drive. The drives are secured to the media bay by
a screw.

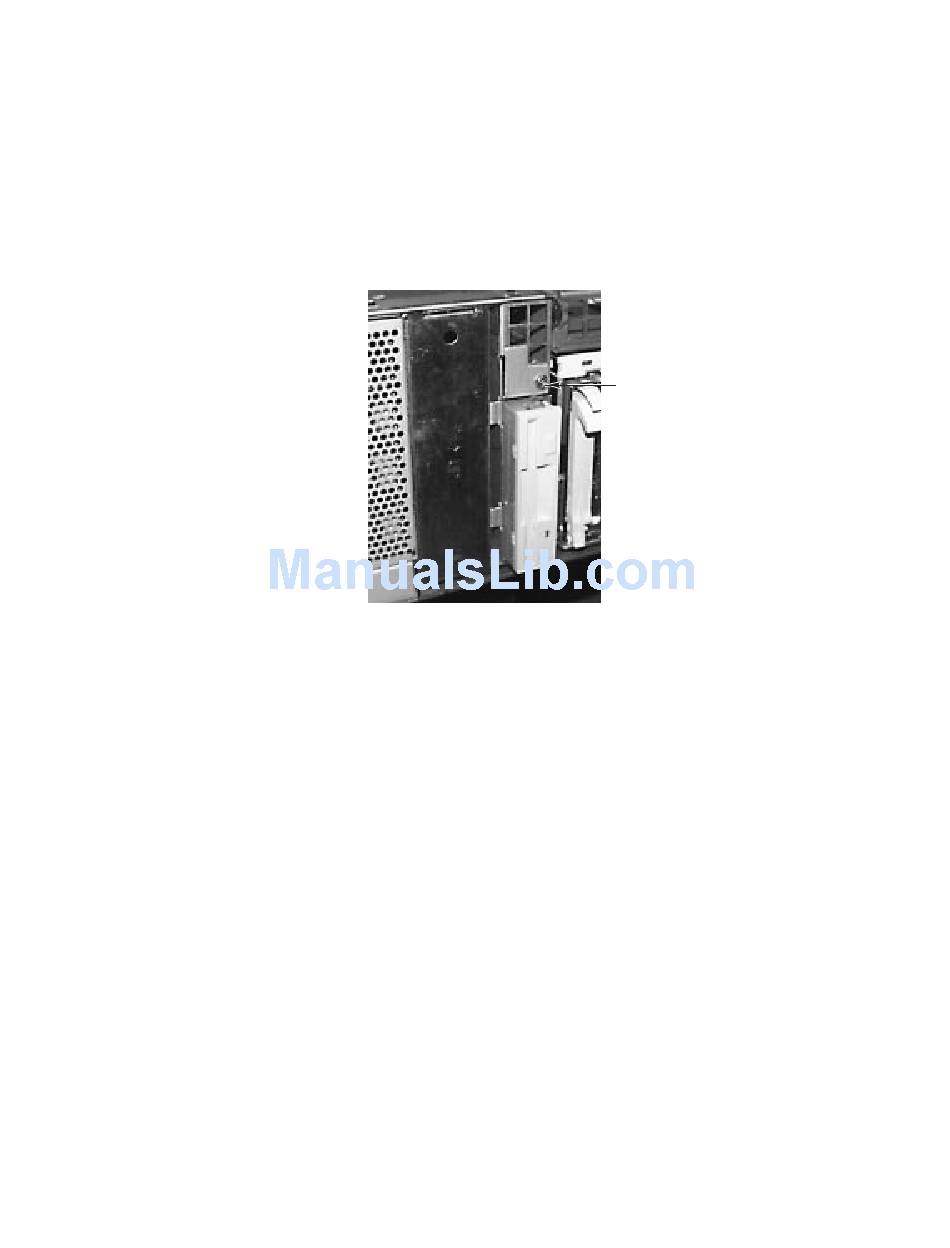

Figure 34. 3.5-inch Floppy Drive in the Configurable Media Bay
1. Observe the safety and ESD precautions at the beginning of this chapter.
2. Turn off the system by using the power on/off switch on the front panel AND unplug the
AC power cord.
3. Remove the front cover. See "Removing the Front Cover" on page 50.
4. Disconnect the power and signal cables from the back of the drive.
5. Remove and save the screw that secures the drive to the bay. The screw is noted by "A" in
Figure 34.
6. Slide the drive out. If the drive will be used again, place it in an antistatic protective wrapper.
7. Install the front cover. See "Installing the Front Cover" on page 51.

Installing a Drive in the Configurable Media Bay

1. Observe the safety and ESD precautions at the beginning of this chapter.
2. Remove the front cover. See "Removing the Front Cover" on page 50.
3. Turn off the system by using the power on/off switch on the front panel AND unplug the
AC power cord.
4. Connect the power and signal cables to the drive.
5. Insert and tighten the screw that secures the drive to the bay.
6. Install the front cover. See "Installing the Front Cover" on page 51.
