7. Insert the replacement power supply at an angle into the server system, sliding the
power connector side in first to fit it through the cut-out area at the rear of the
system (see letter "A" in the figure below).
8. Set the front of the power supply down pushing the power supply back so it fits
behind the foot at the bottom of the chassis (see letter "B" in the figure below).

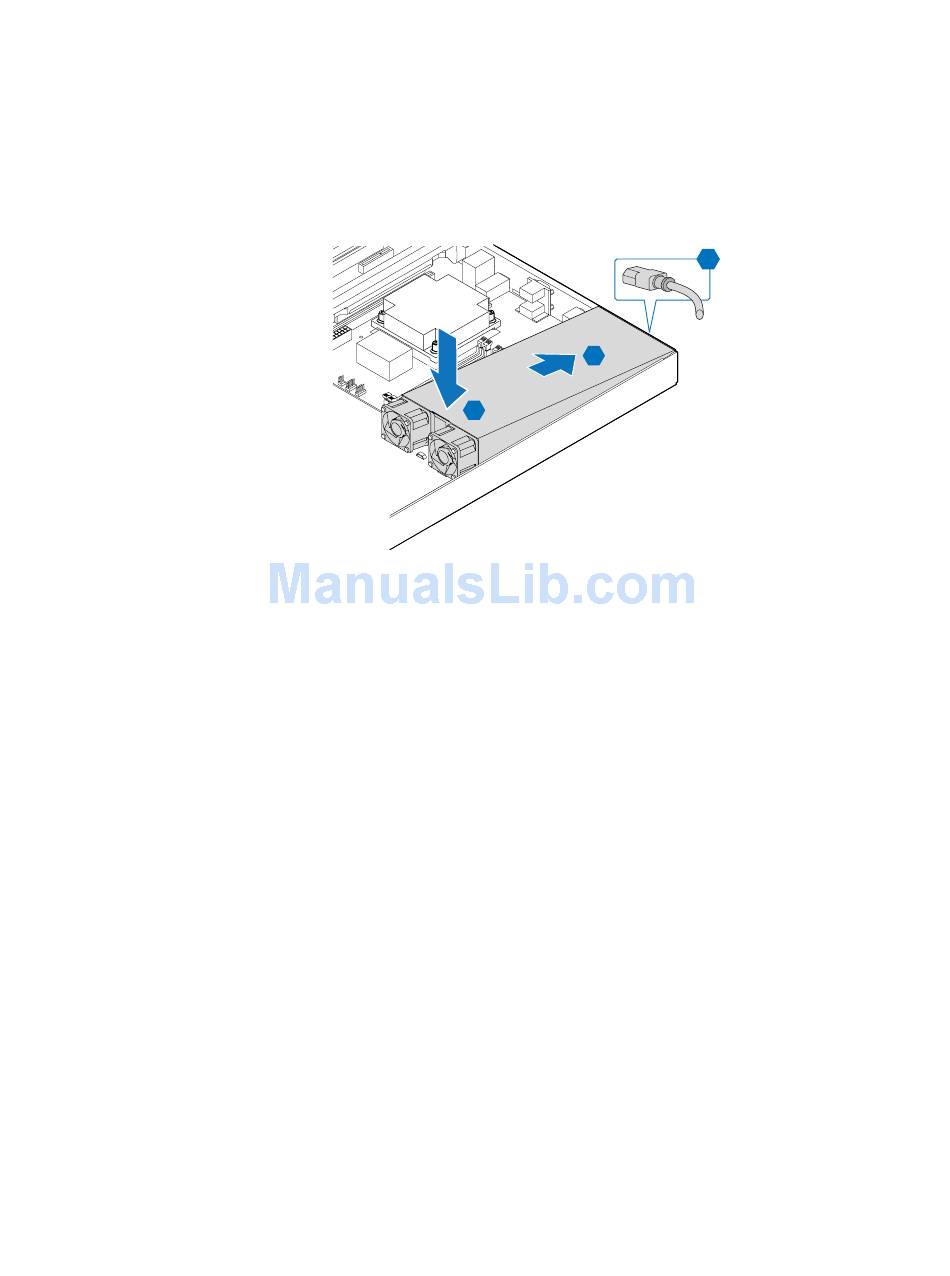

Figure 71. Installing Power Supply Module into the Server System
9. Connect the power supply cables to the server board and peripherals.
10. Install the server system cover. For instructions, see
Cover".
11. Plug all peripheral devices and the AC power cable into the server (see letter "C" in
the figure above).
