Data Cable Routing (SR1530AH / SR1530AHLX)

A
B
C
D
A. Front panel USB
B. SATA 0 to HDD0
C. SATA 1 to HDD1
®
Intel Server System SR1530AH / SR1530AHLX / SR1530HAHLX
E
E
Optical Device
C
HDD 0
A
D.
E.

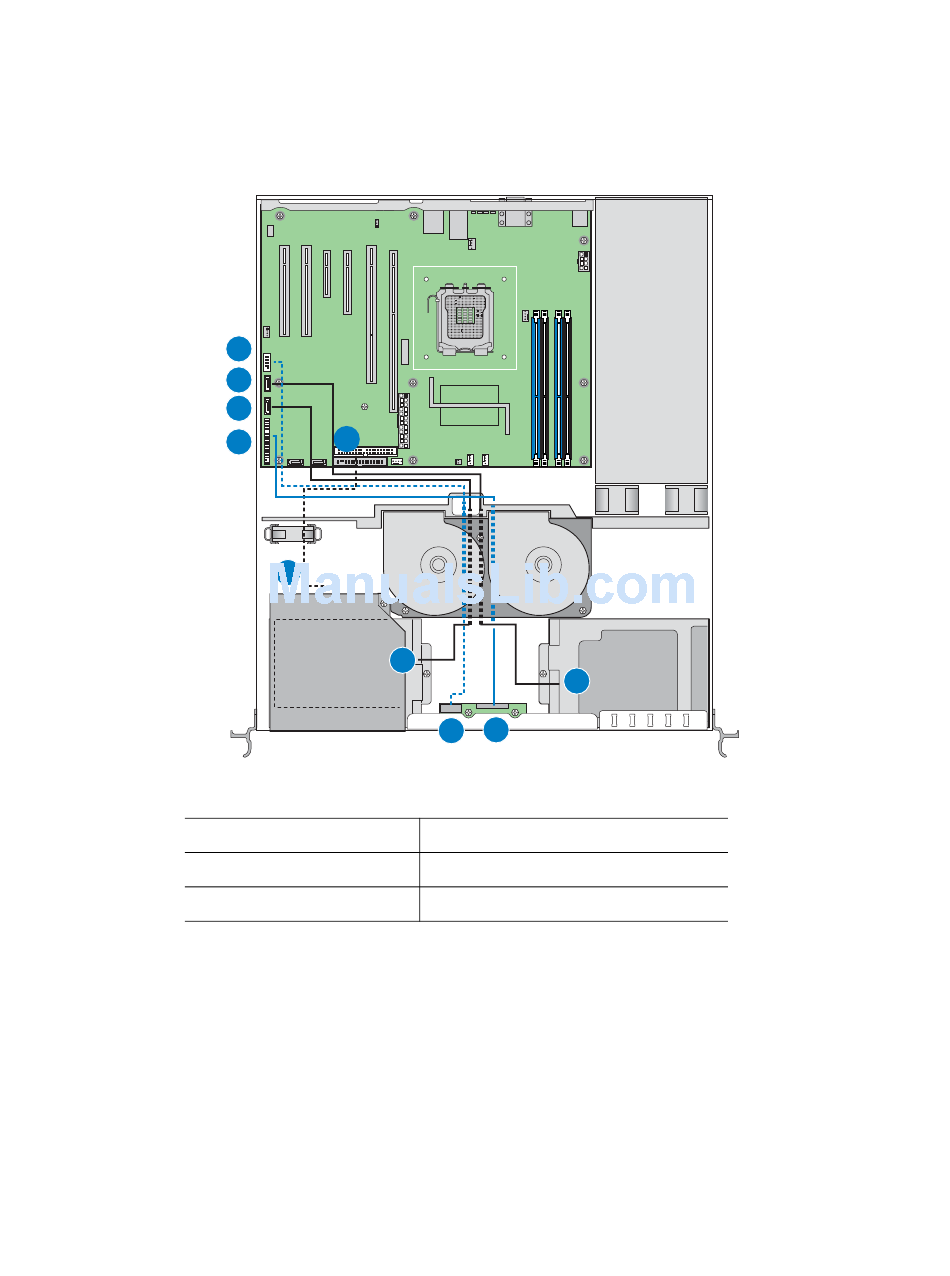

Figure 89. Data Cable Routing (SR1530AH / SR1530AHLX)

HDD 1
B
D
Front panel
Optical drive
AF001206
