Removing a Slimline Optical Drive

1. Observe the safety and ESD precautions at the beginning of this book. See
Information" on page
2. Power down the server and unplug all peripheral devices and the AC power cable.
3. Remove the server system cover. For instructions, see
System Cover" on page
4. Remove the bezel if it is installed. For instructions, see
Bezel" on page
5. SR1530AH/SR1530AHLX: Note the orientation of the PCI cooling fan that is
located behind the optical drive bay, then lift the fan from the mounting pegs. It is
not necessary to disconnect the fan cable. See letter "A" in

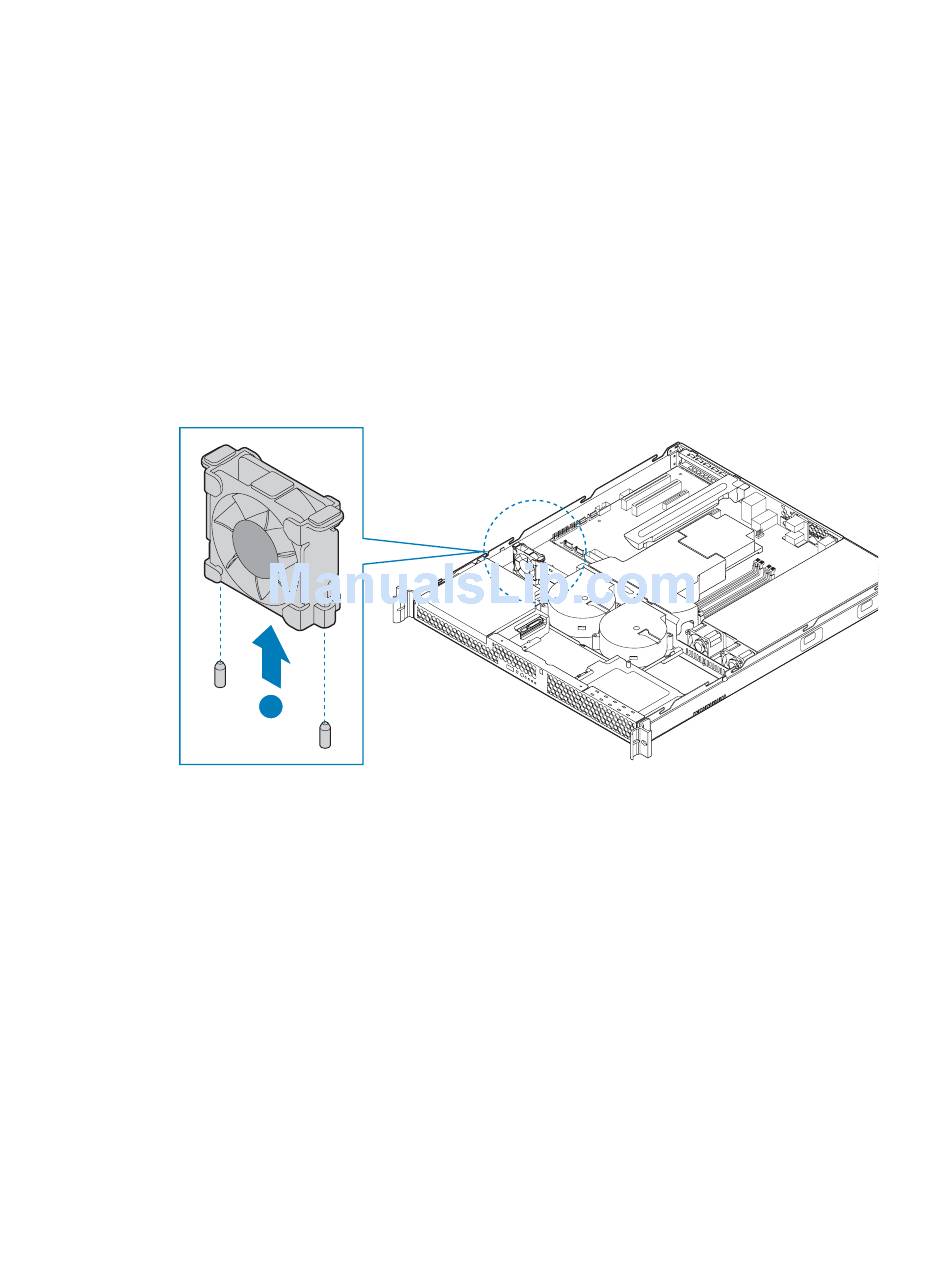

Figure 48. Lifting PCI Cooling Fan from Mounting Pegs (SR1530AH/
6. Disconnect the optical drive power and data cables. See letters "A" and "B" in
Figure
7. Remove the screw that holds the optical drive bracket to the server chassis. See
letter "C" in the figure below. Save this screw. You will reinstall it later.
8. Slide the optical drive out through the front of the system. See letter "D" in the
figure.
