9. Remove the nine screws from the server board (see letter "A") and lift the server
board from the server system (see letter "B").
10. Replace the server board. For instructions, see
page
11. Install the processor. For instructions, see
12. Install the DIMMs. For instructions, see
13. Install the PCI riser assembly. For instructions, see
Assembly" on page
14. Reconnect all cables to the server board. For a full cabling diagram, see
on page 96
15. Install the processor air duct. For instructions, see
Duct" on page
16. Install the server system cover. For instructions, see
Cover".
17. Plug all peripheral devices and the AC power cable into the server.
68
A

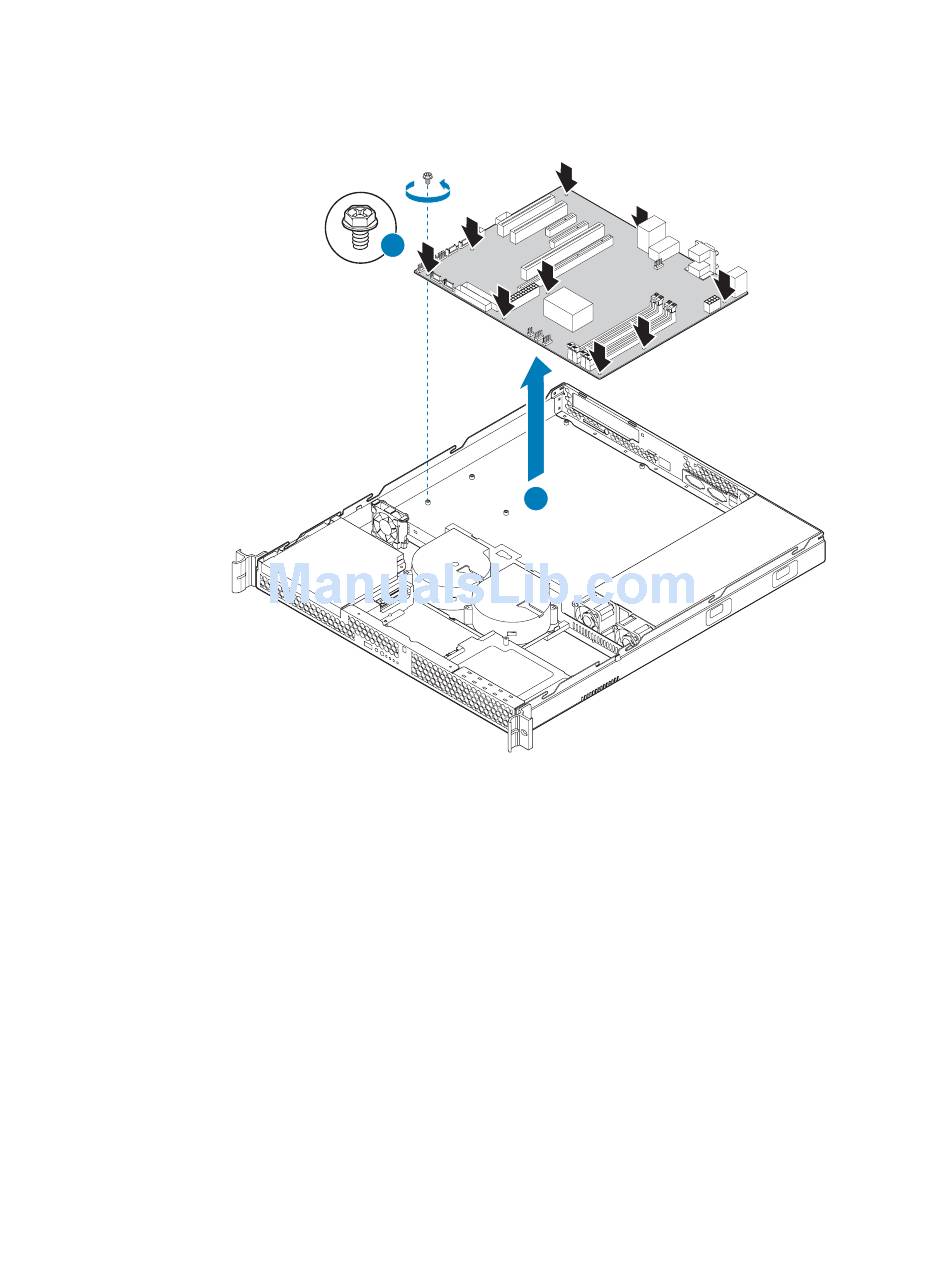

Figure 63. Removing the Server Board

69.
61.
33.
®
Intel
B
"Installing the Server Board" on
"Installing the Processor" on page
"Installing DIMMs" on page
"Installing the PCI Riser
"Installing the Processor Air
Server System SR1530AH / SR1530AHLX / SR1530HAHLX
AF000677
34.
Figure 88
"Installing the Server System
38.
