Removing a Power Supply Module

To remove a power supply module:
1. Disconnect the AC power cord for the supply from the wall outlet or power source.
2. Remove the four screws that secure the power supply (Figure 27).
CAUTION
To avoid damaging the module, do not tilt or twist the power supply module
as you pull it from the power supply bay. The module disengaging from its
connector causes the initial resistance you will feel. Use even, steady force
to remove the supply.
3. Pull the latch handle to release the power supply module and carefully pull the module out of
the power supply bay.
4. Unplug the power cord from the power supply.
5. If you are not going to install a replacement module, you must install a filler panel in the vacant
slot.
Installing and Removing Components
B
A
A Screws B

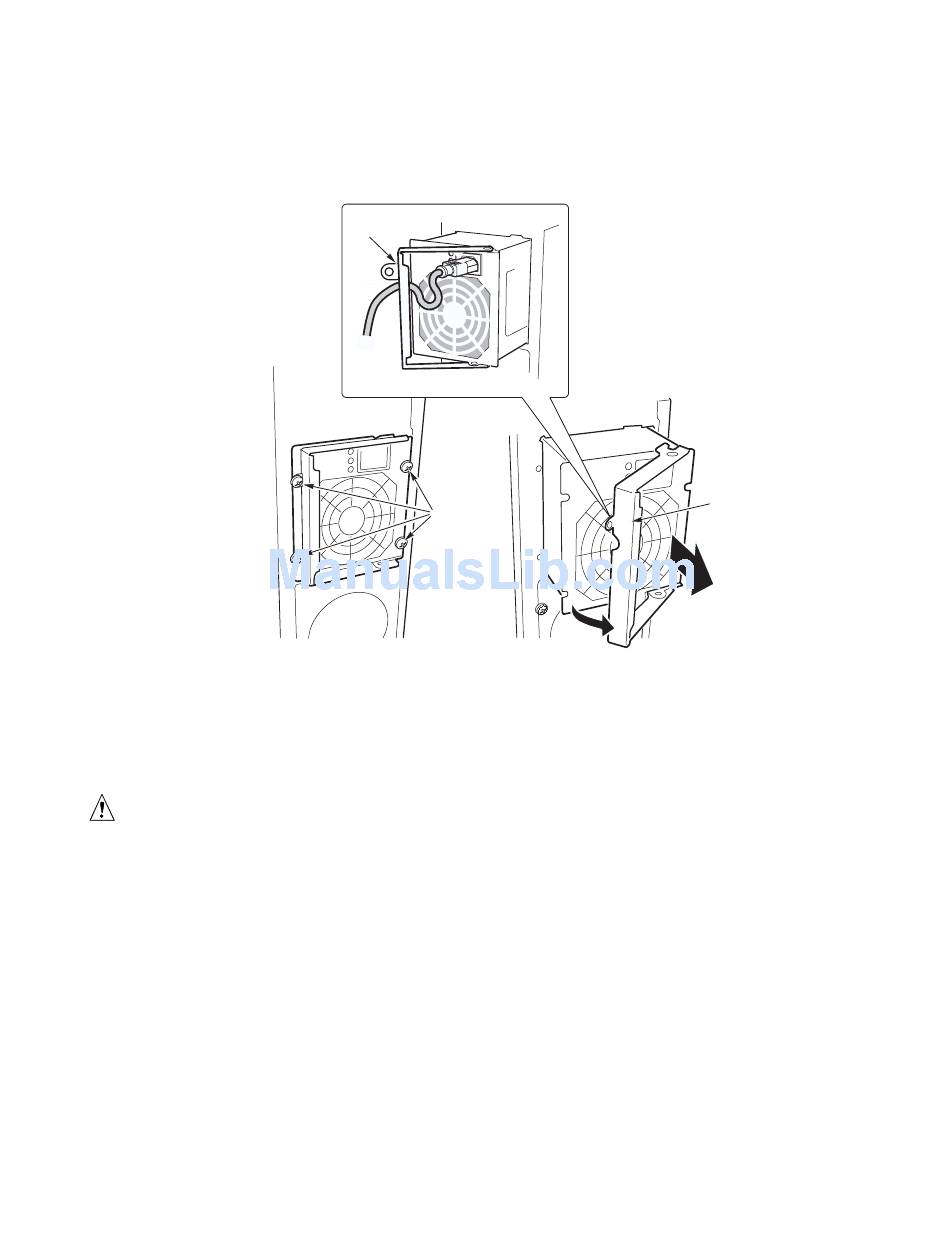

Figure 27. Removing a Power Supply Module
OM13394
Latch handle
