Removing The Memory Board - Intel SPSH4 - Server Platform - 0 MB RAM Product Manual

Removing the Memory Board

To remove the memory board:
1. Grasp the bracket on the top edge of the memory board and pull straight up until the board
disengages from the connector on the processor board (Figure 6).
2. Lift the memory board out of the chassis.
Installing and Removing Components

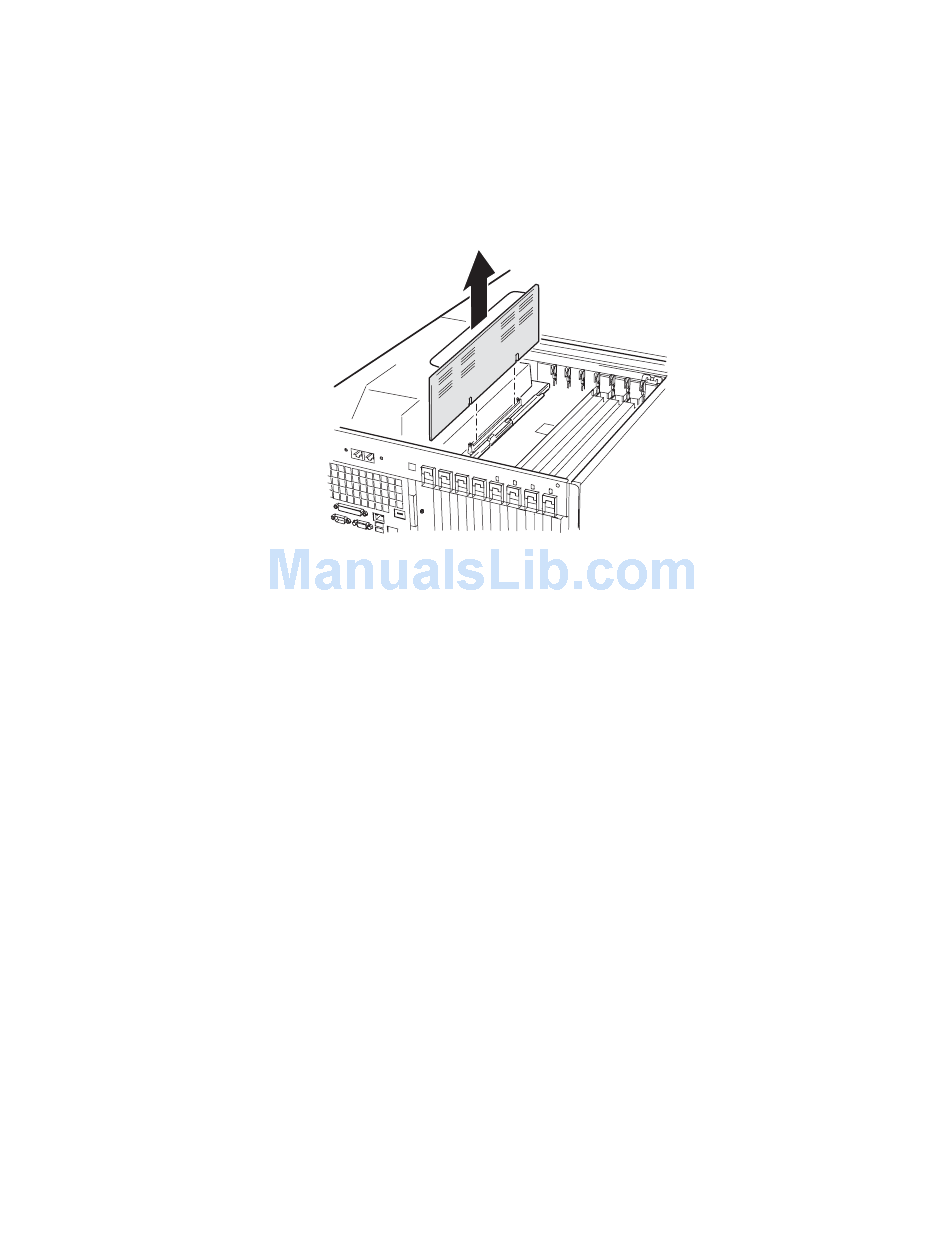

Figure 6. Removing the Memory Board
OM13385
69
