Removing DIMMs

1. Remove the memory board (page 69). Place the board component-side up on a nonconductive,
static-free surface.
2. Locate the DIMM you want to remove and gently push down on the plastic ejector levers
(Figure 20, A) to eject the DIMM from its socket.
3. Hold the DIMM only by its edges, being careful not to touch its components or gold edge
connectors. Carefully lift it away from the socket and store it in an antistatic package.
84
A

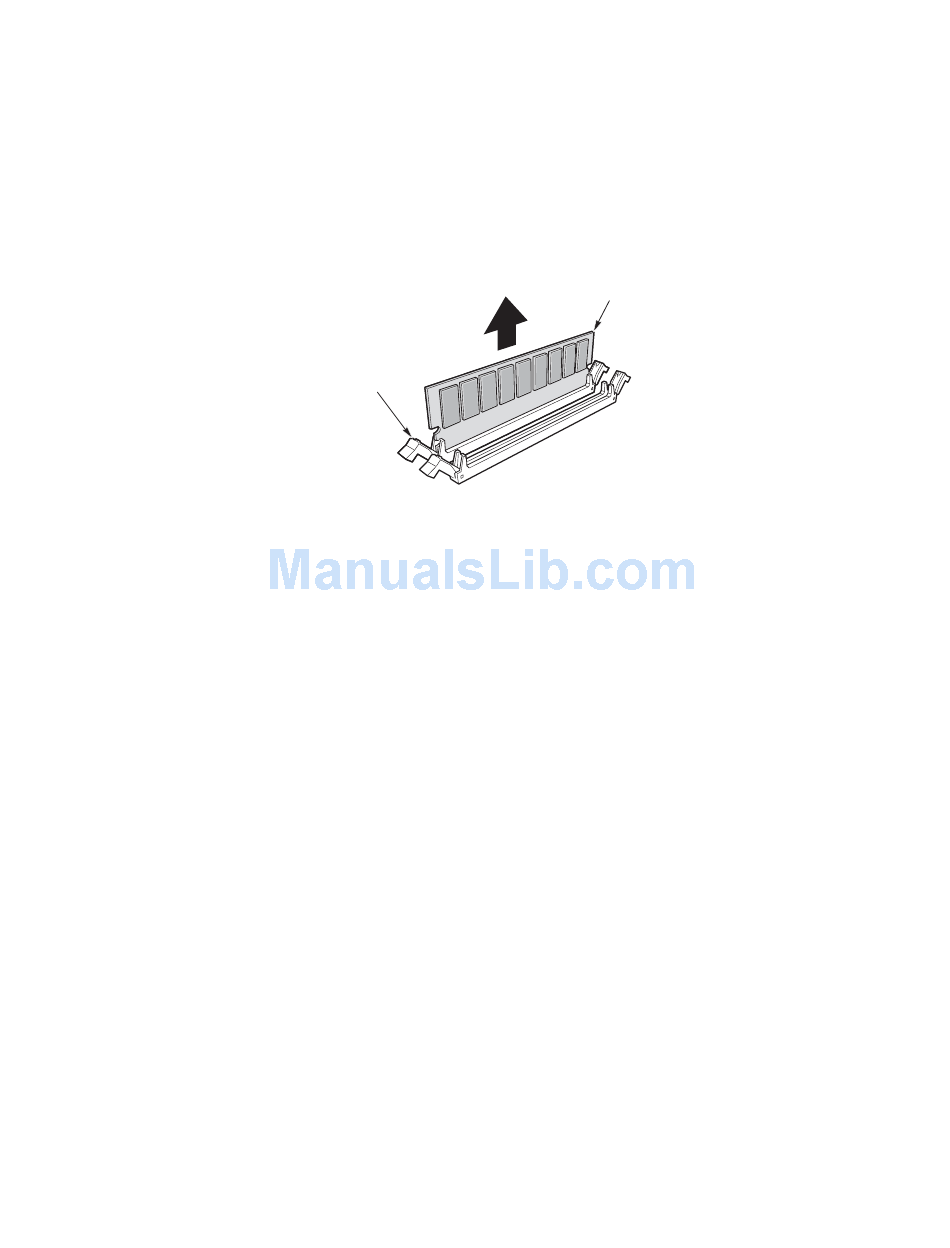

Figure 20. Removing DIMMs
B
OM13271
