Checking the Status Indicators for a Hot-Plug Add-In Board

A bank of LED indicators on the back panel of the electronics bay indicates the status of the hot-
plug PCI add-in boards (Figure 29).

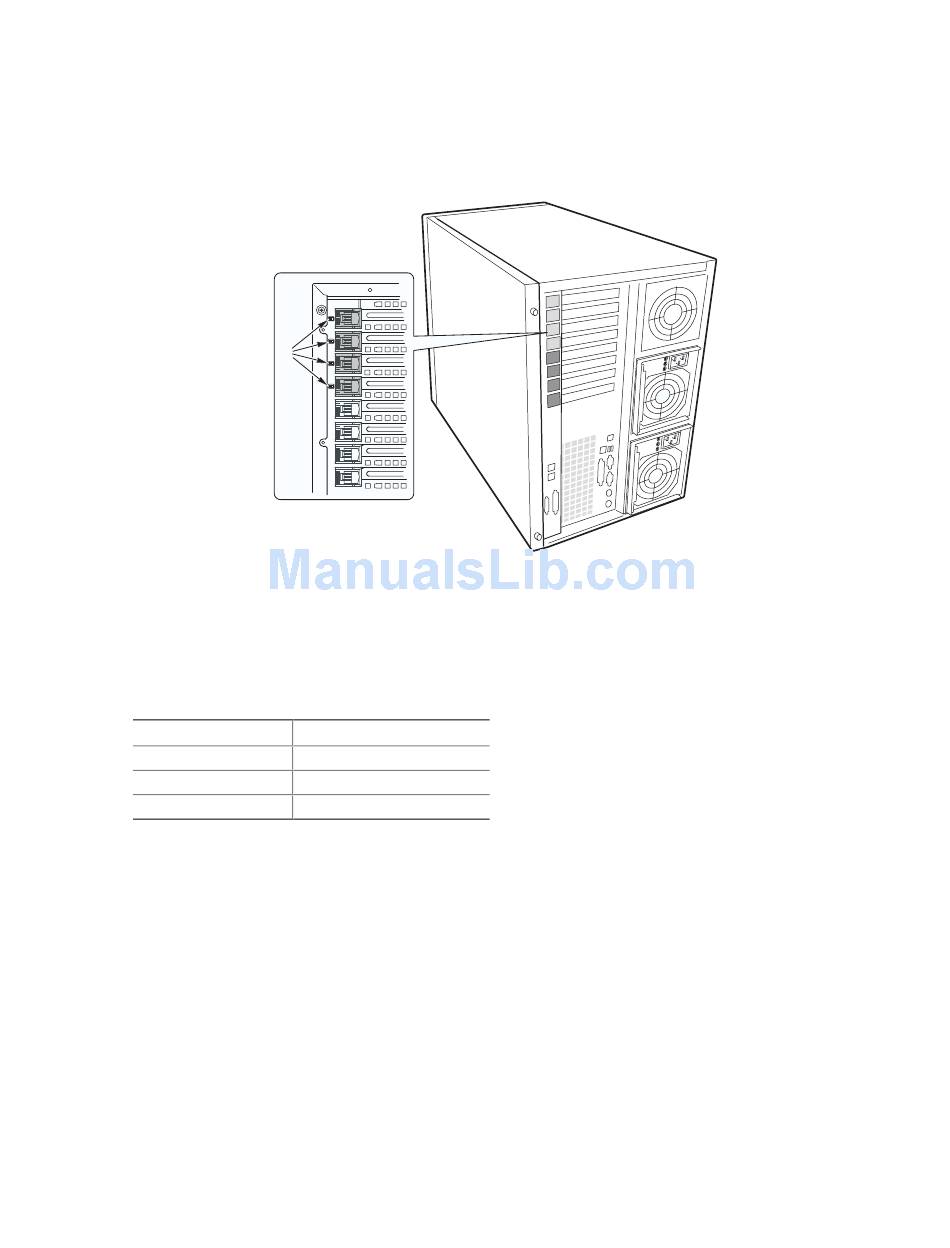

Figure 29. Status Indicators for Hot-Plug PCI Add-In Boards
Table 9 lists the LED states and the hot-plug PCI status indicated by each state.
Table 9. LED Hot-Plug PCI Status Indicators
Power LED State
Green
Amber
Not lit
94
A
A Status LED indicators
Status
Power to slot
Fault on slot
No power to slot
OM13396
Intel SPSH4 Server Platform Product Guide
