Removing the Front Access Cover

The front access cover provides access to the hot-swap fans, to devices in the peripherals bay, and
to the hot-swap drive bay. To remove the front access cover:
1. Remove the rear access cover (page 66).
2. Release the two captive cover screws, as shown in Figure 4.
3. Lift the rear edge of the cover slightly and slide it toward the rear of the chassis.
4. Lift the cover up and off of the chassis.

Installing the Front Access Cover

NOTE
Before installing the front access cover, check that you have not left tools or
loose parts inside the system.
To install the front access cover:
1. Position the cover on the chassis so that the cover tabs align with the chassis slots.
2. While lightly pressing the cover against the chassis, slide it toward the front of the chassis until
the cover tabs fully engage the chassis slots.
3. Attach the cover to the chassis with the captive screws.
4. Install the rear access cover (page 66).
Installing and Removing Components

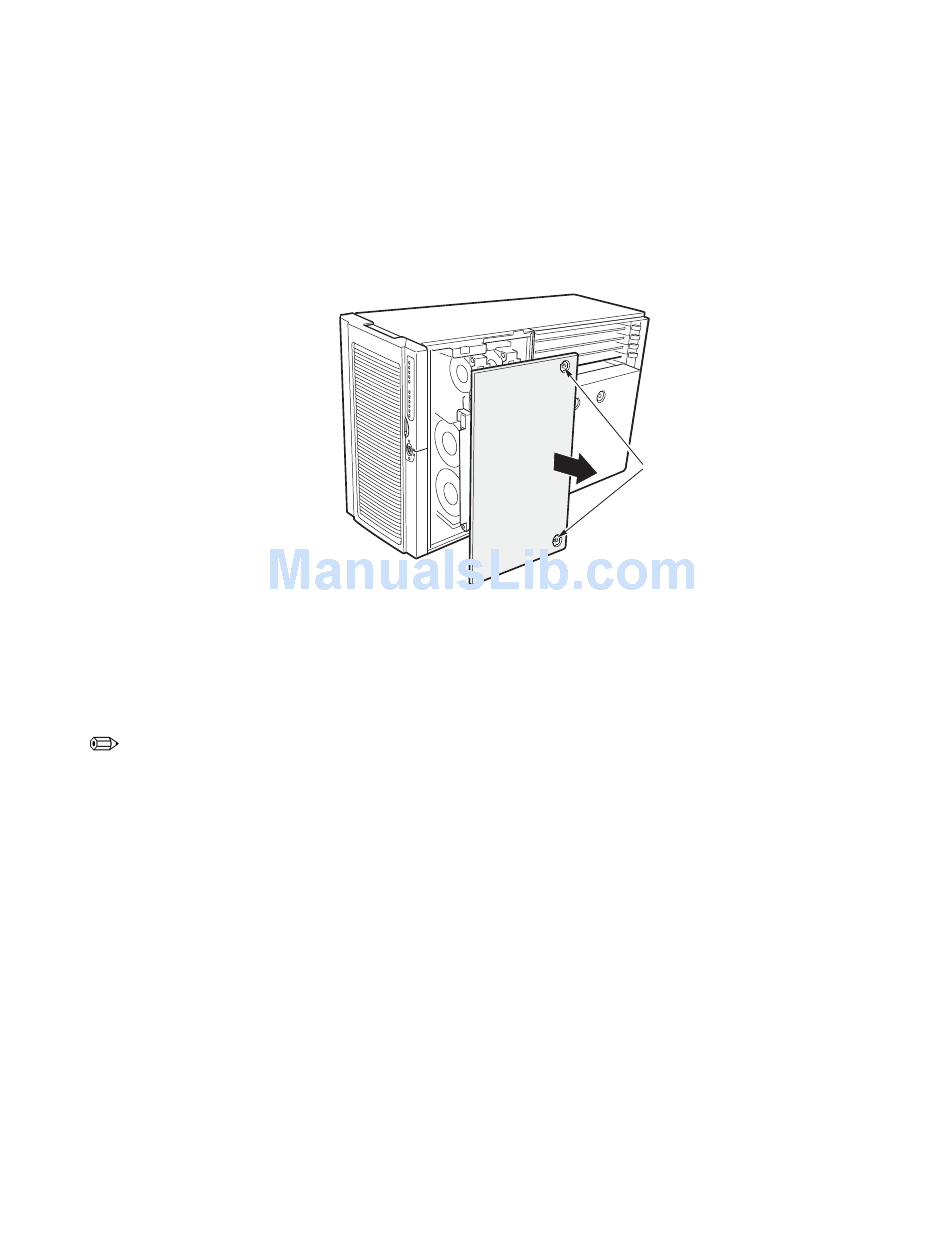

Figure 4. Removing the Front Access Cover
A
OM13383
67
