Diskette Drive

To replace the diskette drive:
1. Turn off power to the server and unplug the AC power cords from the power source.
2. Remove the front access cover (page 67)
3. Remove the fan modules and the foam fan baffle (page 119).
4. Disconnect the power and signal cables from the back of the diskette drive.
5. Remove the screw that secures the diskette drive bracket to the chassis.
6. Remove the bracket and drive assembly from the inside of the front subchassis.
7. Position the drive and bracket so that the bottom of the bracket is facing up.
8. Holding the front of the drive with one hand, tilt the front of the bracket up to disengage the
locating pins on each side of the bracket from the drive.
9. Slide the bracket back and remove it from the drive.
NOTE
If you aren't installing a replacement device, install a metal EMI shield on the
bay to maintain proper cooling and EMI shielding.
10. Remove the new diskette drive from its protective wrapper and place it on an antistatic surface.
11. Record the drive model and serial numbers in your equipment log.
12. Set any jumpers or switches according to the drive manufacturer instructions.
13. Position the new drive with the component side up and slide the back of the drive under the
ears at the back of the bracket (Figure 44).
14. Slide the bracket toward the front of the drive and engage the locating pins on each side of the
bracket in the mating holes in the drive frame.
110
A
A Power cable C
B Data cable

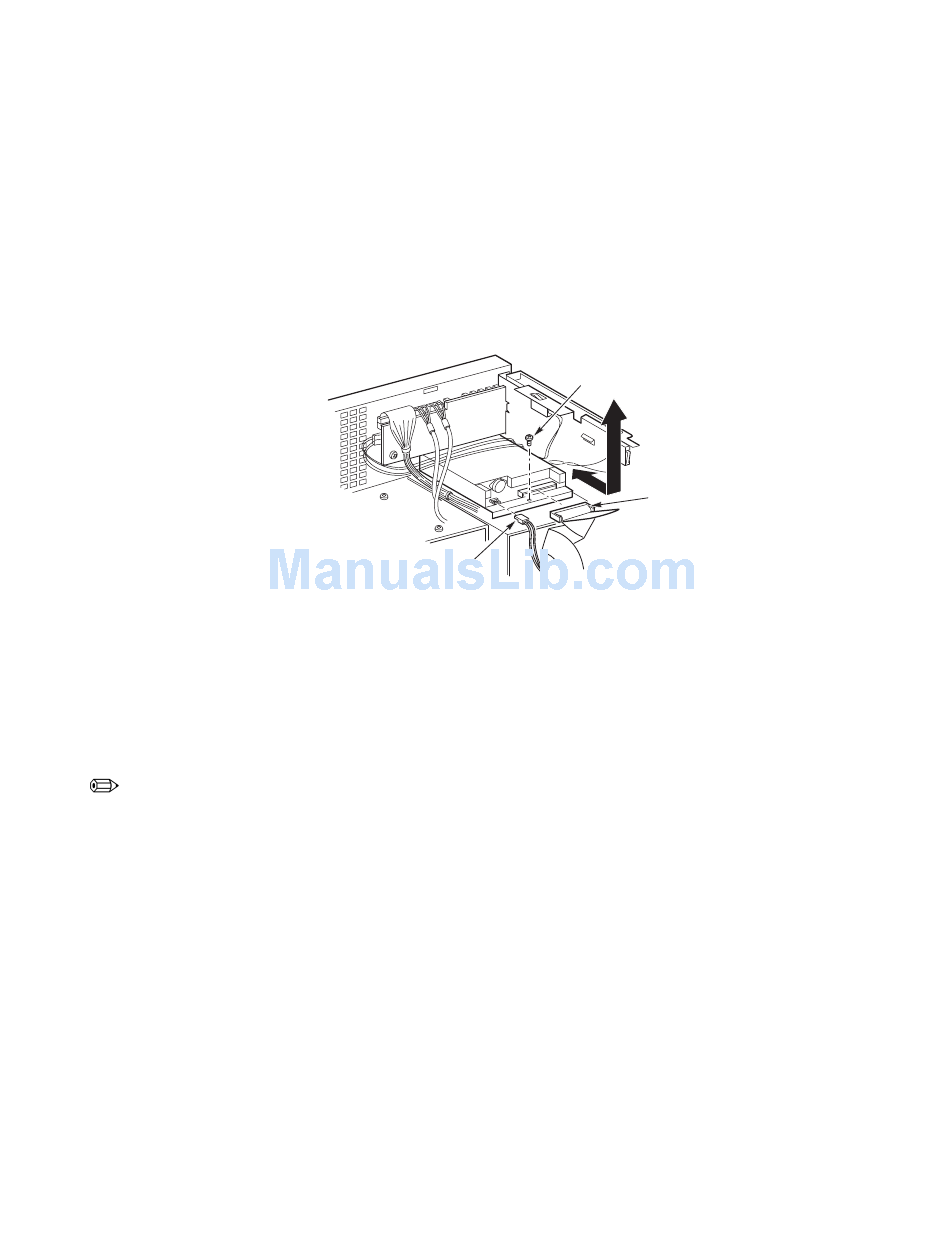

Figure 43. Replacing the Diskette Drive
C
B
OM13413
Screw
