Chapter 1 Shelf and Backplane Hardware
1.3 Front Door

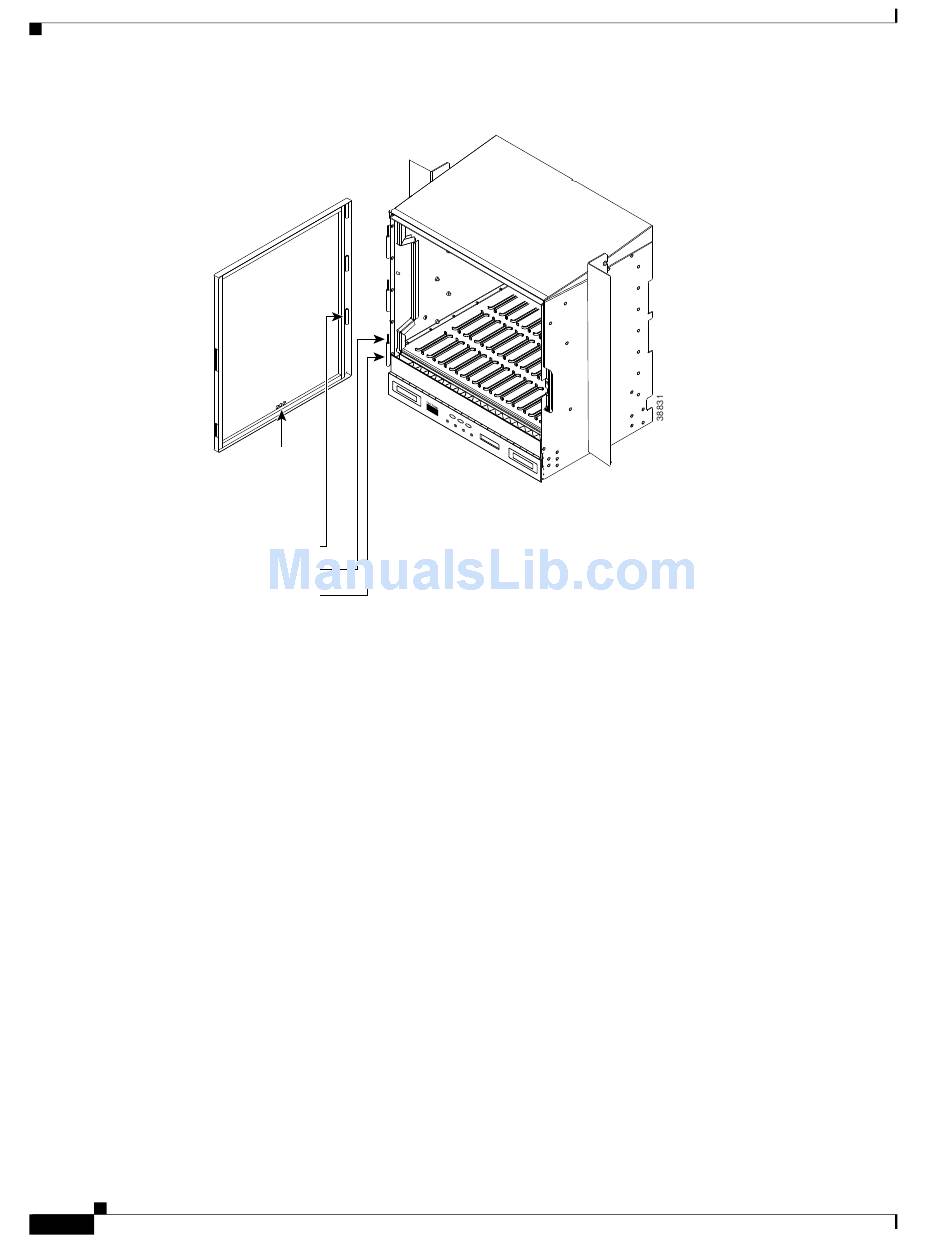

Figure 1-6

Removing the ONS 15454 Front Door
F A N
F A IL
C R
IT
M A
J
M IN
Translucent
circles
for LED
viewing
Door hinge
Assembly hinge pin
Assembly hinge
An erasable label is pasted on the inside of the front door (Figure 1-7). You can use the label to record
slot assignments, port assignments, card types, node ID, rack ID, and serial number for the ONS 15454.
