5.11 CE-100T-8 Card

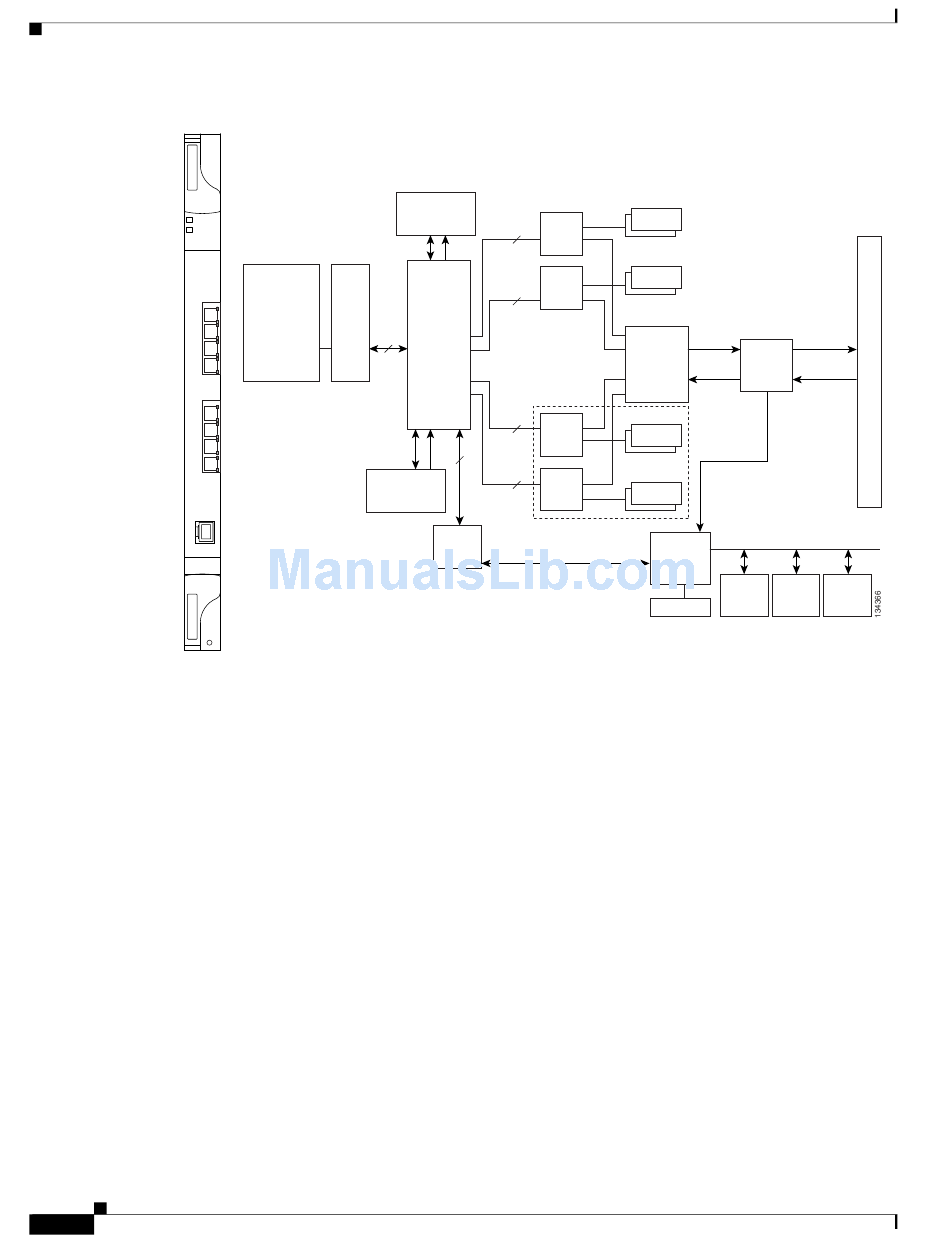

Figure 5-10
CE100T
8
FAIL
ACT
1
2
3
4
5
6
7
8
CONSOLE
The following paragraphs describe the general functions of the CE-100T-8 card and relate to the block
diagram.
In the ingress direction, (Ethernet-to-SONET), the PHY, which performs all of the physical layer
interface functions for 10/100 Mbps Ethernet, sends the frame to the network processor for queuing in
the respective packet buffer memory. The network processor performs packet processing, packet
switching, and classification. The Ethernet frames are then passed to the Ethermap where Ethernet traffic
is terminated and is encapsulated using HDLC or GFP framing on a per port basis. The encapsulated
Ethernet frames are then mapped into a configurable number of virtual concatenated low and high order
payloads, such as VT1.5 synchronous payload envelope (SPE), STS-1 SPE, or a contiguous
concatenated payload such as STS-3c SPE. Up to 64 VT1.5 SPEs or 3 STS-1 SPEs can be virtually
concatenated. The SONET SPE carrying encapsulated Ethernet frames are passed onto the qMDM
FPGA, where four STS-3 frames are multiplexed to form a STS-12 frame for transport over the SONET
network by means of the Bridging Convergence Transmission (BTC) ASIC.
In the Egress direction (SONET-to-Ethernet), the FPGA extracts four STS-3 SPEs from the STS-12
frame it receives from the BTC and sends each of the STS-3s to the ET3 mappers. The STS-3 SONET
SPE carrying GFP or PPP/HDLC encapsulated Ethernet frames is then extracted and buffered in
Ethermap's external memory. This memory is used for providing alignment and differential delay
compensation for the received low-order and high-order virtual concatenated payloads. After alignment
and delay compensation have been done, the Ethernet frames are decapsulated with one of the framing
protocols (GFP or HDLC). Decapsulated Ethernet frames are then passed onto the network processor for
QoS queuing and traffic scheduling. The network processor switches the frame to one of the
corresponding PHY channels and then to the Ethernet port for transmission to the external client(s).
Cisco ONS 15454 Reference Manual, R8.5
5-26
CE-100T-8 Faceplate and Block Diagram
Packet Buffer
3x0.5MB
8x
Packet
10/100BaseT
Octal
SMII
Processor/
RJ45
PHY
8
Switch
Fabric
Control Mem
1x2MB
Part of qMDM FPGA
ETS
4 SMII
#1
STS3
ETS
4 SMII
#2
STS3
STS3
4 SMII
ETS
#3
1
STS3
3 SMII
ETS
#4
SMII
Option
qMDM
FPGA
MII
FCC3
Chapter 5
Ethernet Cards
SDRAM
SDRAM
Add_Bus
qMDM
STS12
BTC
Drop_Bus
FPGA
SDRAM
SDRAM
SCC1
60x
CPU
SDRAM
Flash
8MB
128MB
nVRAM
B
a
c
k
p
l
a
n
e
CPLD
78-18106-01
