13.2.7 IP Scenario 7: Provisioning the ONS 15454 SOCKS Proxy Server

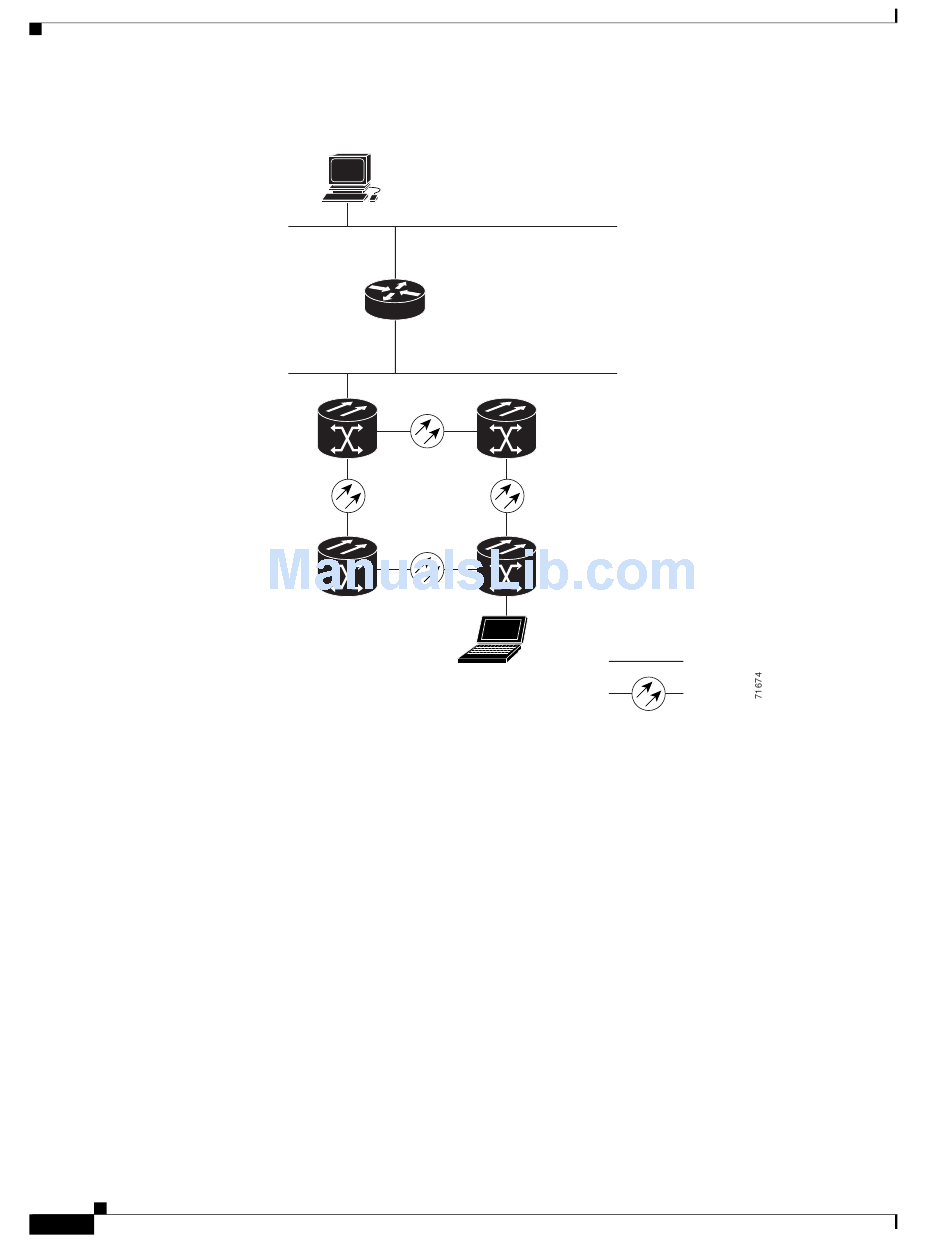

Figure 13-12
10.10.10.100/24
192.168.10.250/24
Cisco ONS 15454 Reference Manual, R8.5
13-16
IP Scenario 7: ONS 15454 SOCKS Proxy Server with GNE and ENEs on Different
Subnets
Remote CTC
10.10.20.10
Interface 0/0
10.10.20.1
Interface 0/1
10.10.10.1
ONS 15454
GNE
ONS 15454
ENE
10.10.20.0/24
Router A
10.10.10.0/24
ONS 15454
ENE
192.168.10.150/24
ONS 15454
ENE
192.168.10.200/24
Local/Craft CTC
192.168.10.20
