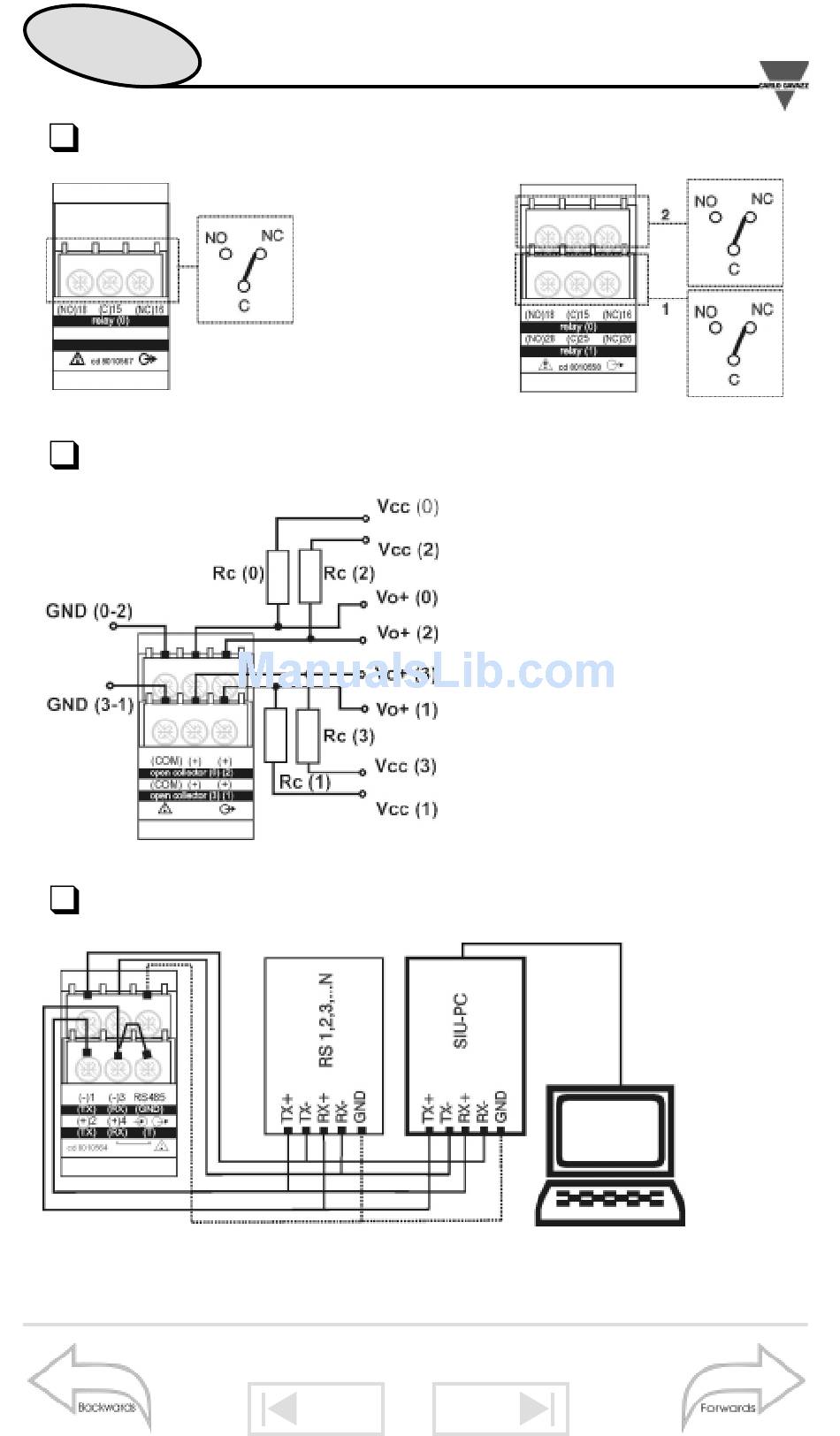

Relay output

Open collector outputs

4-wire connection. Additional devices provided with RS485

(that is RS 1,2,3...N) are connected in parallel.

Dimensions, Panel cut-out

Installation

This diagram is valid also

for the open collector

modules with a lower

number of outputs. The

value of the load resist-

ances (Rc) must be cho-

sen so that the short-cir-

cuit current is lower than

100mA; the VDC voltage

must be lower than or

equal to 30 VDC.

Electrical connections
