AUX INPUT SETTINGS
SECTION 11

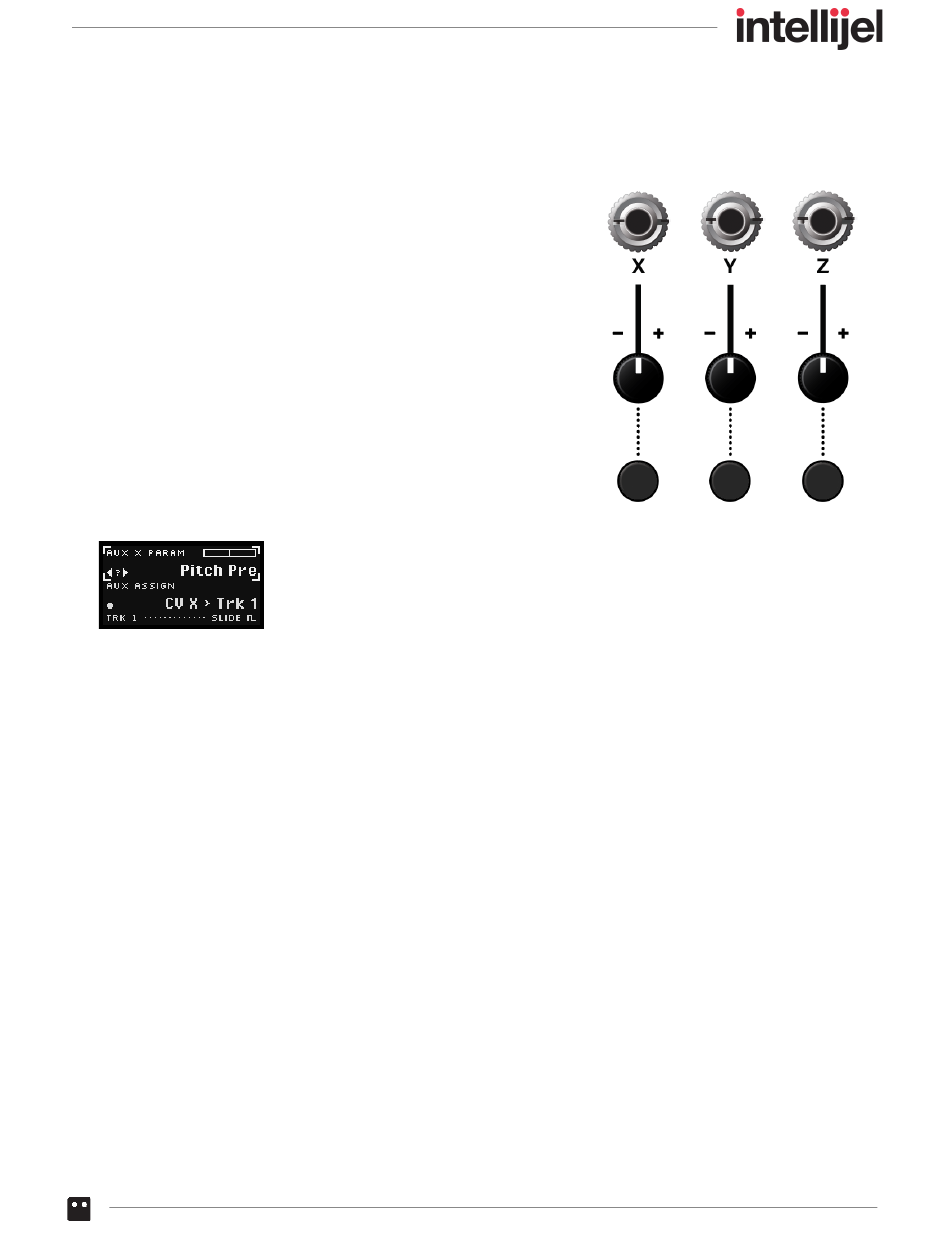

X, Y and Z are three user-configurable control voltage inputs
for Metropolix — each with an associated attenuverter —
which allows you to externally control and modulate an
extensive number of sequence parameters, per-track. An
input voltage of ±5V is required to span the full range of an
assigned destination.
Each input has its own setup menu (accessed by pushing its
corresponding AUX Settings button), from which you can
select the track(s) and the parameter you wish to control.
Attenuverters scale and/or invert any incoming control
voltages. In the case of gate inputs, turning the inverter
counterclockwise from noon inverts the function of the gate.
There are two main parameters on each of the AUX Settings screen:
AUX <n> PARAM : Selects the parameter you wish to control with the corresponding input (X, Y,
or Z). Choices are:
None
Accumulate (⎍)
Accum Reverse (⎍)
Accum Invert (⎍)
Accum Mode (⎍)
Accum Polar (⎍)
Accum Reset (⎍)
BPM (INT)
Clock In Div
Direction (⎍)
Gate Length
Gate Scale
Loopy (⎍)
Loopy Pulses
Loopy Offset
Mute (⎍)
Octave
Pitch Offset
Pitch Post
Pitch Pre
Play Order
Probability
Pulse Count
Pulse Div
Pulses Len
Ratchet
Metropolix Manual
Reset (⎍)
Root
Scale (User)
Skip Invert (⎍)
Slide (⎍)
Slide Amount
Slider Invert (⎍)
Slider Range
Stages Len
Stage Offset
Swing
Trk Out Swap (⎍)
Velocity
