Chapter 3 Installing the Clean Access Manager and Clean Access Server

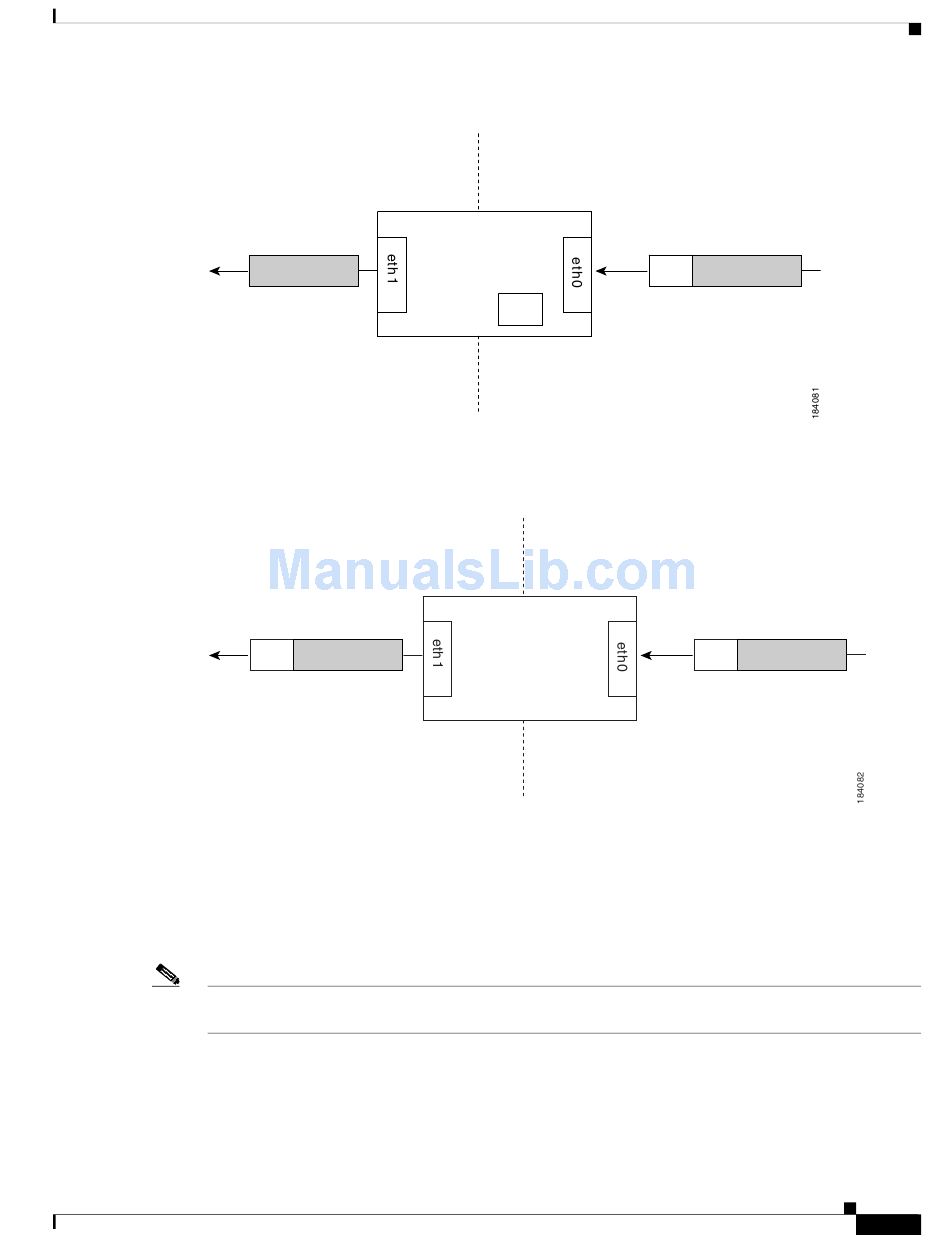

Figure 3-6
In VLAN ID passthrough, the identifier is retained on traffic that passes through the interface.
Figure 3-7
At the Management VLAN Tagging prompt, type
Step 11
Management VLAN tagging disabled (default). Or, type
tagging with the specified VLAN ID for the eth0 interface. (You can change the Management VLAN ID
later from the CAS Network > IP web console page; however, changing settings on the CAS IP page
requires a reboot of the CAS.)
[Management Vlan Tagging] for egress packets of eth0 is disabled.
Would you like to enable it? (y/n)? [n]
CAS eth0 interface settings are required for basic connection to the CAM. CAS eth1 interface settings
Note
can be reconfigured later from the CAM web console.
A Management VLAN identifier is a default VLAN identifier that is added to a packet if it does not have
its own VLAN identifier or if the identifier was originally stripped by the adjacent interface. The setting
at the prompt applies to traffic passing from the untrusted network to the trusted network.
OL-20326-01
VLAN ID Termination
Untrusted network
Clean Access
VLAN ID Passthrough
Untrusted network
VLAN
ID
Trusted network
Server
VLAN
ID
Trusted network
Clean Access
Server
and press Enter (or just press Enter) to keep
n
and press Enter to enable Management VLAN
Y
Cisco NAC Appliance Hardware Installation Guide
Installing the Clean Access Server
packet
VLAN
ID
packet
VLAN
ID
3-27
