Chapter 1 Cisco NAC Appliance Hardware Platforms
1
2
3
4
5

Cisco NAC-3350 Front and Rear Panels

The Cisco NAC-3350 is only FIPS-compliant after you have purchased and installed a field-replaceable
Note
FIPS card as described in the
Guide.
The Cisco NAC-3350 Appliance provides enhanced capability for enterprise wide Clean Access
Standard Manager and Clean Access Server (1500/2500/3500 user count) deployments. A NAC-3350
Standard CAM can manage up to 20 Clean Access Servers or 20 HA-CAS pairs. A NAC-3350 CAS can
support up to 1500, 2500, or 3500 users.
Similar to the Cisco NAC-3310, the Cisco NAC-3350 comes equipped with 4 network interfaces to
provide flexibility in NIC interface selection and facilitate CAS high availability configuration. The
Cisco NAC-3350 additionally provides 2 GB of RAM, two SAS drives configured in RAID 0 and 1, dual
power supplies, and an SSL accelerator card to support large network deployments and provide added
reliability for a centralized CAM/CAS deployment in the network core.
For additional details, see

Front Panel Features

Figure 1-20
OL-20326-01
NIC activity/link status
LEDs for NIC 1 (eth0) and
NIC 2 (eth1)
NIC network speed LEDs
UID LED (recessed)
Link status LED for the
10/100 Mbps LAN port
Activity status LED for the
10/100 Mbps LAN port
Cisco NAC Appliance FIPS Card Field-Replaceable Unit Installation
FIPS 140-2 Compliant and Non-FIPS Hardware Platforms, page

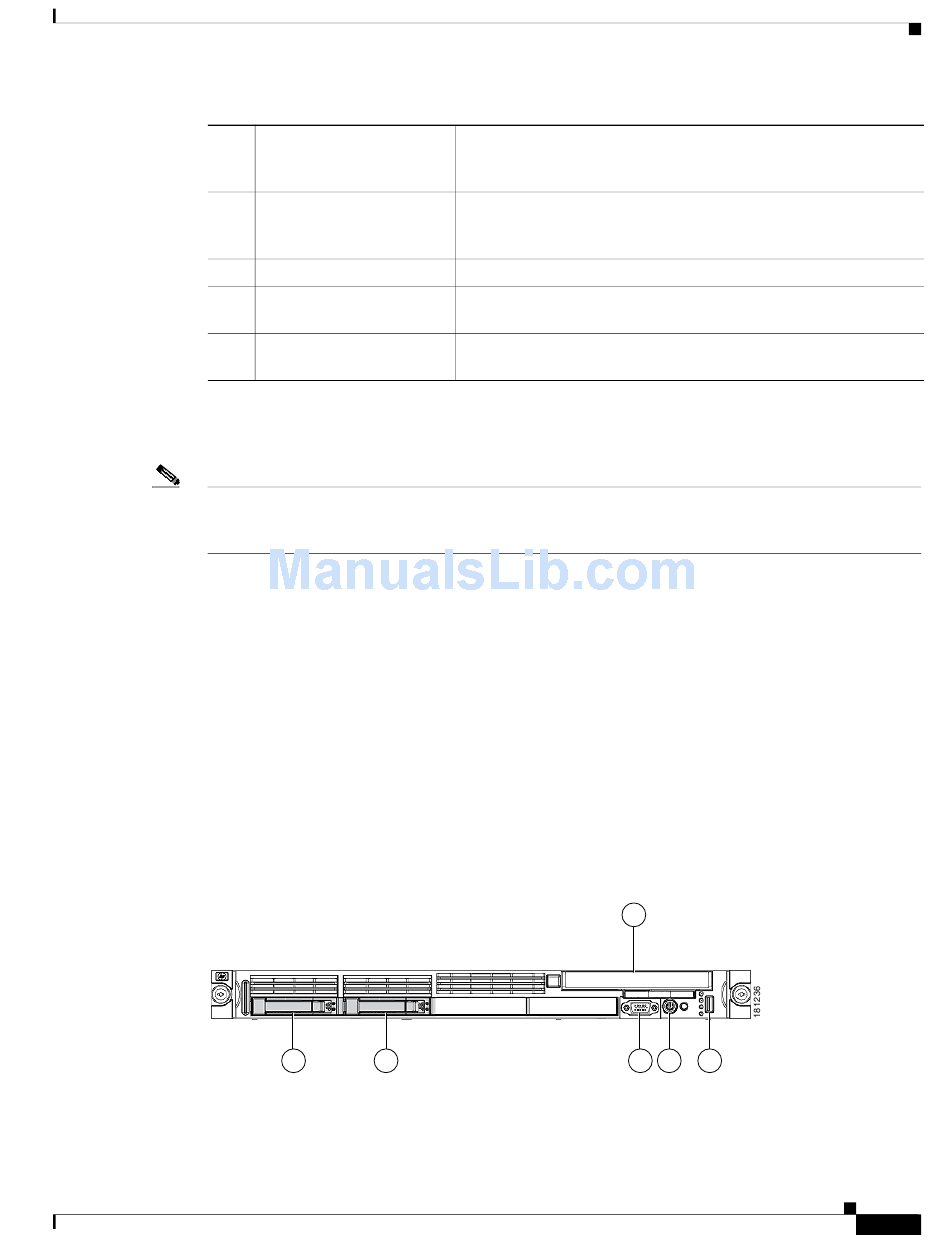

Cisco NAC-3350 Front Panel
1 2
Solid green = An active network link exists
Flashing green = An ongoing network data activity exists
Off = The server is off-line
Steady amber = The LAN connection is using a GbE link
Steady green = The LAN connection is using a 100 Mbps link
Off = The LAN connection is using a 10 Mbps link
Blue = A UID button has been pressed
Green = A network link exists
Off = No network link exists
Flashing green = Network activity exists
Off = No network activity exists
3
4
Cisco NAC Appliance Hardware Installation Guide
NAC-3310, NAC-3350, and NAC-3390
1-1.
5 6
1-21
