Cisco NAC3350-PROF-K9 - NAC Profiler Server Installation Manual page 86

Installing the Clean Access Manager

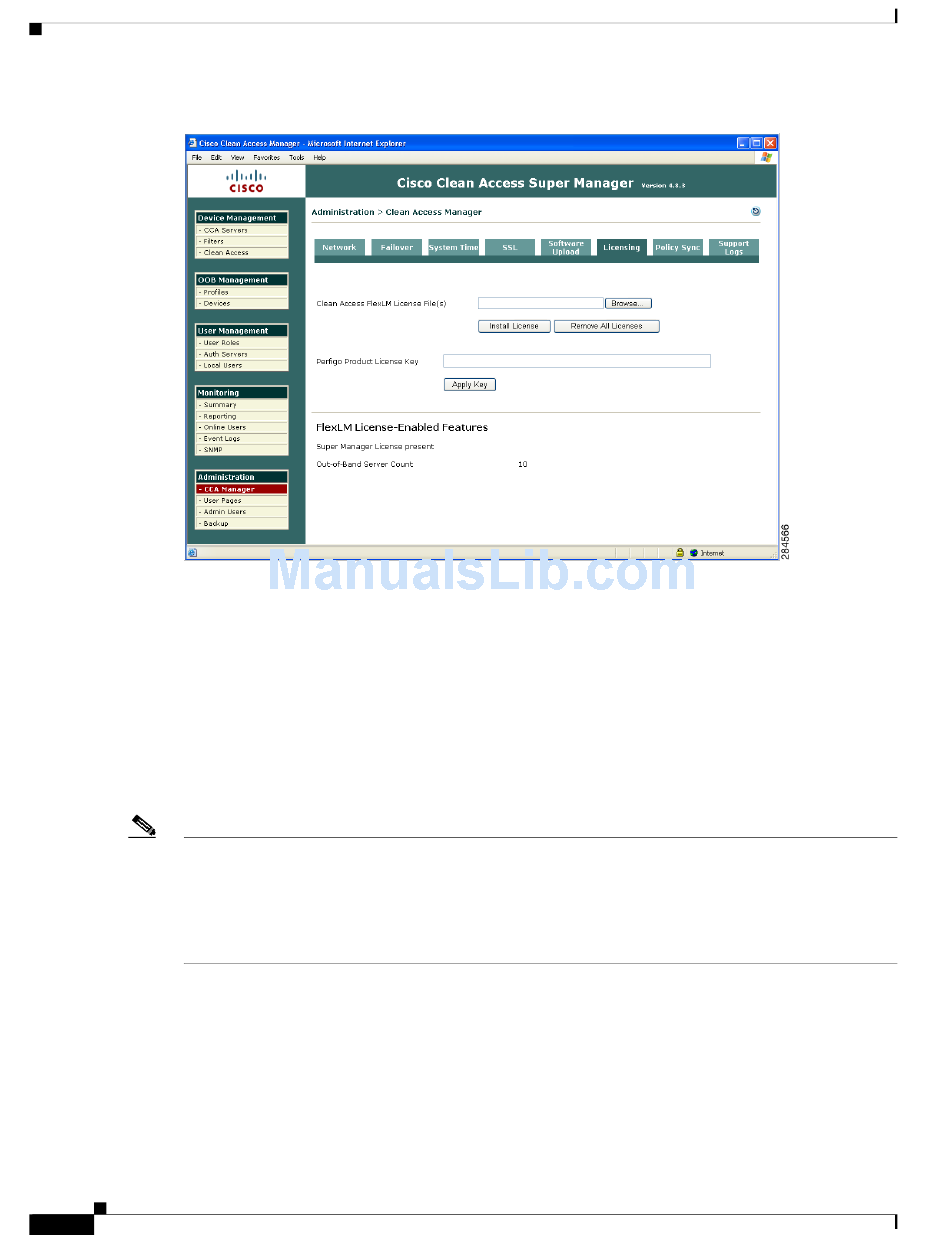

Figure 3-5
In the Clean Access FlexLM License File(s) field, Browse to the license file for your CAS or CAS
Step 11
bundle, and click Install License. You should see a green confirmation text string at the top of the page
which indicates: success/failure to install the license, type of license added, and, for a CAS license, the
Server increment count (for example, "License added successfully. CCA Manager License added.
Out-of-Band Server Count is now 20."). The status text at the bottom of the page will indicate the
presence of a Lite, Standard or Super Manager license and whether it is Failover, as well as the IB or
OOB CAS license count.
Repeat
Step 12
PAK submitted during customer registration). The Server Count information at the bottom of the page
will display the total number of CASs enabled per successful license file installation.
Clicking the Remove All Licenses button removes all FlexLM license files from the system. You cannot
Note
remove individual license files. (Authenticated user traffic will continue to pass through if you remove
all licenses and install them again.)
You must enter the CAM license to be able to access the administrator web console. Refer to
Appliance Service Contract/Licensing Support
Licenses are now installed. You can continue the configuration of your deployment using the CAM web
Step 13
console. Refer to the following documents for further configuration guidelines:
Cisco NAC Appliance - Clean Access Manager Configuration Guide, Release 4.8(3)
•
Cisco NAC Appliance - Clean Access Server Configuration Guide, Release 4.8(3)
•
Cisco NAC Appliance Hardware Installation Guide
3-16
Licensing Page
Step 11 for each license file you need to install (you should have received one license file per
Chapter 3 Installing the Clean Access Manager and Clean Access Server
for details.
Cisco NAC
OL-20326-01
