Chapter 1 Cisco NAC Appliance Hardware Platforms
5
Operator information panel
6
Operator information panel release switch
7
Video port
1. Cisco does not support installing additional hard drives in the NAC-3395 appliance.

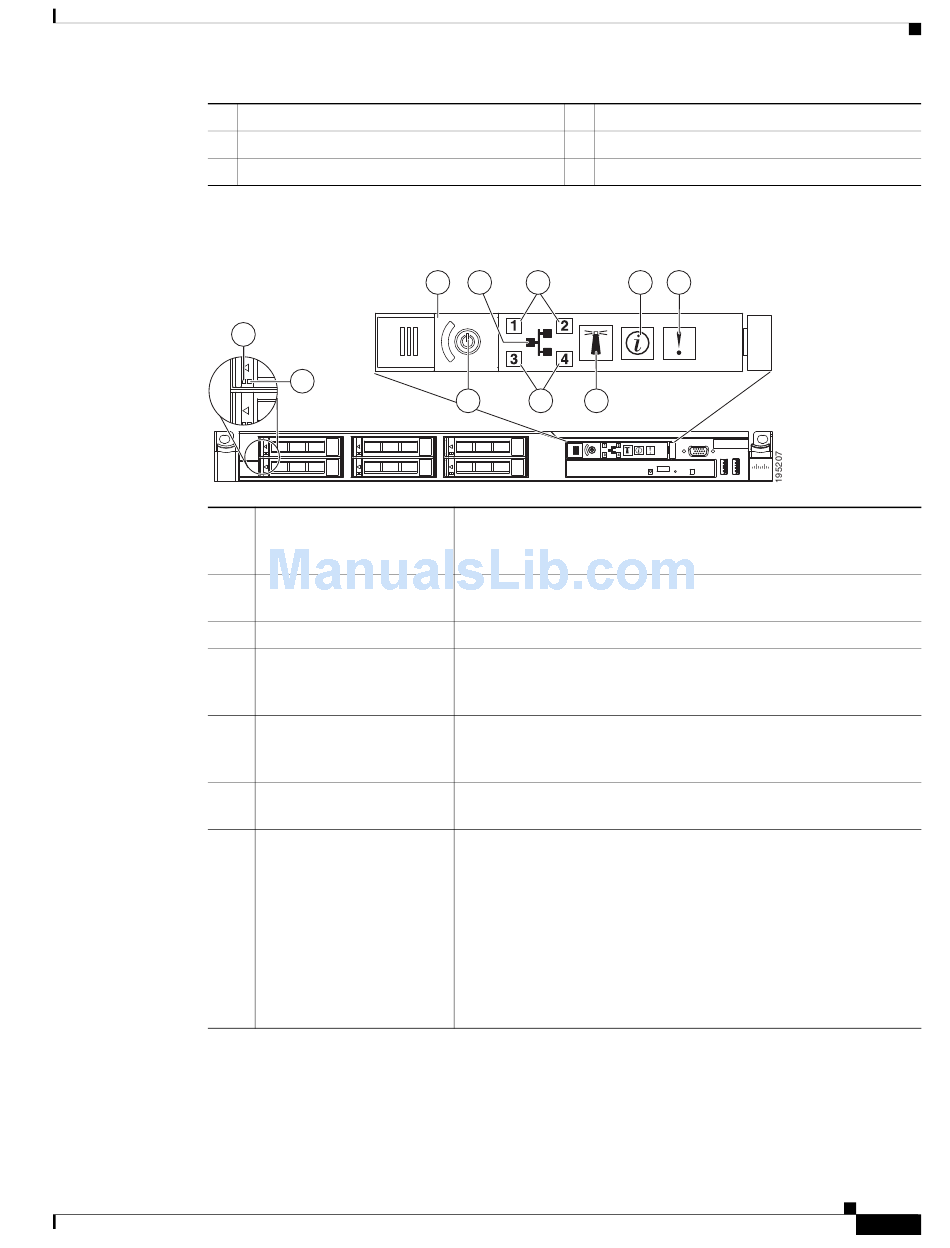

Figure 1-13
1
1
2
3
4
5
6
7
OL-20326-01
Cisco NAC-3395 Front Panel LEDs/Buttons
3
2
HDD activity LED
HDD status LED
Power switch button cover Slides left and right to expose or protect power switch
Ethernet icon LED
Ethernet interface activity
LEDs (NIC 1 and NIC 2)
Information LED
System health LED
12
Hard disk drive (HDD) bay 3
13
Hard disk drive (HDD) bay 1
4 5 6
10 9 8
Green = Hard disk drive activity
Flashing Green = Hard disk drive activity
Off = Hard disk drive is idle or disabled
Amber = Hard disk drive is in error state
Off = Hard disk drive is functioning or disconnected from power
Green = Ethernet interfaces are configured and up
Off = No Ethernet interfaces are currently configured or Ethernet
interfaces are all down
Green = Activity exists
Flashing green = Activity exists
Off = No activity exists
Amber = A non-critical system event has occurred
Off = System is functioning normally
Off = System health is normal
Amber = A pre-failure system threshold has been breached. This
can be any of the following:
• At least one fan failure (system or processor fan)
• At least one of the temperature sensors reached critical level
(system or processor thermal sensors)
• At least one memory module failure
• A power supply unit error has occurred
Cisco NAC Appliance Hardware Installation Guide
NAC-3315, NAC-3355, and NAC-3395
7
Cisco NAC 3395 Series
NAC Manager
CISCO
1-13
