PARKING AIDS

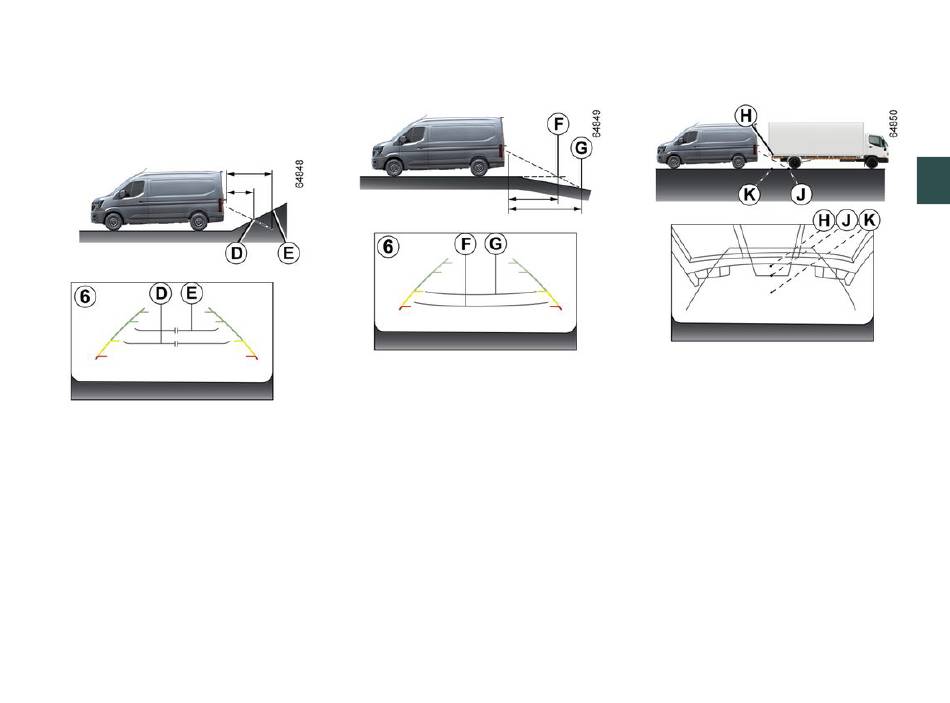

Difference between the estimated
distance and actual distance
Reversing towards a steep uphill
slope
The fixed guidelines 6 show the dis­
tances as closer than they actually are.
The objects shown on the screen are
actually further away on the slope.
For example, if the screen displays an
object at D , the actual distance of the
object is at E .
Reversing towards a steep down­
hill slope
The fixed guidelines 6 show the dis­
tances as further than they actually
are.
Therefore, the objects shown on the
screen are actually closer on the
slope.
For example, if the screen displays an
object at G , the actual distance of the
object is at F .
Reversing towards a protruding
object
Position H seems further than position
J on the screen. However, position H
is at the same distance as position K .
The trajectory indicated by the fixed
and mobile guidelines do not take into
account the height of the object. So
there is a risk that the vehicle may col­
lide with the object when reversing to­
wards position K .
