15.15 Down Switch Option 9 – Three Operator Foot Control Only
Foot Pedal 3 - Down
Foot Pedal 2 - Down
Foot Pedal 1 - Down
The connections in this option allow three operator stations with foot pedal control on each
as shown in
option 6 with the only difference being that the function only provides for three operator
stations.
Station
4
-
To select down switch option 9 during the PCSS configuration, set the initial value for down
switch option selection variable to 9 as described in
option and all required inputs are activated when the PCSS software is started.
Page 248
Original Language Version: 1.25
24 VDC

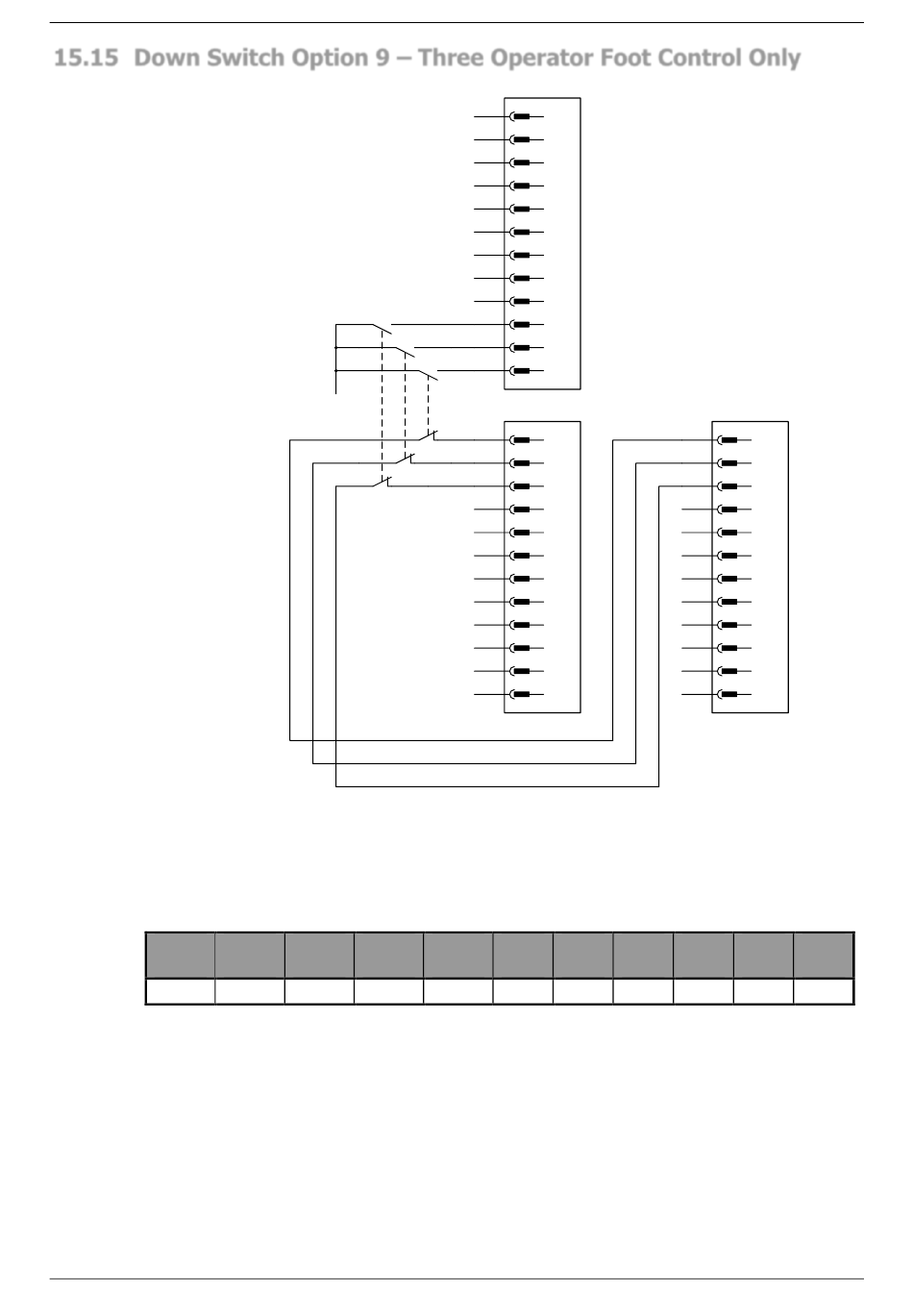

Figure 15-9: Three Operator Foot Control (AIO Connections)
Figure 15-9 for the AIO. The operation of this option is the same as down switch
Station Station Station
3 2 1
Yes Yes Yes
Table 15-11: Down Switch Option 9 Compatible Operator Modes
