Technical Data
14.9.3 Specifications of the RS232 Interface
Type of interface: Serial interface
Interface operation: Full duplex
Level: RS232
Connection: D-sub connector, 9-pin
Maximum cable length: 10 m
Pin assignment
14.10 Device Dimensions
\
1
/
1

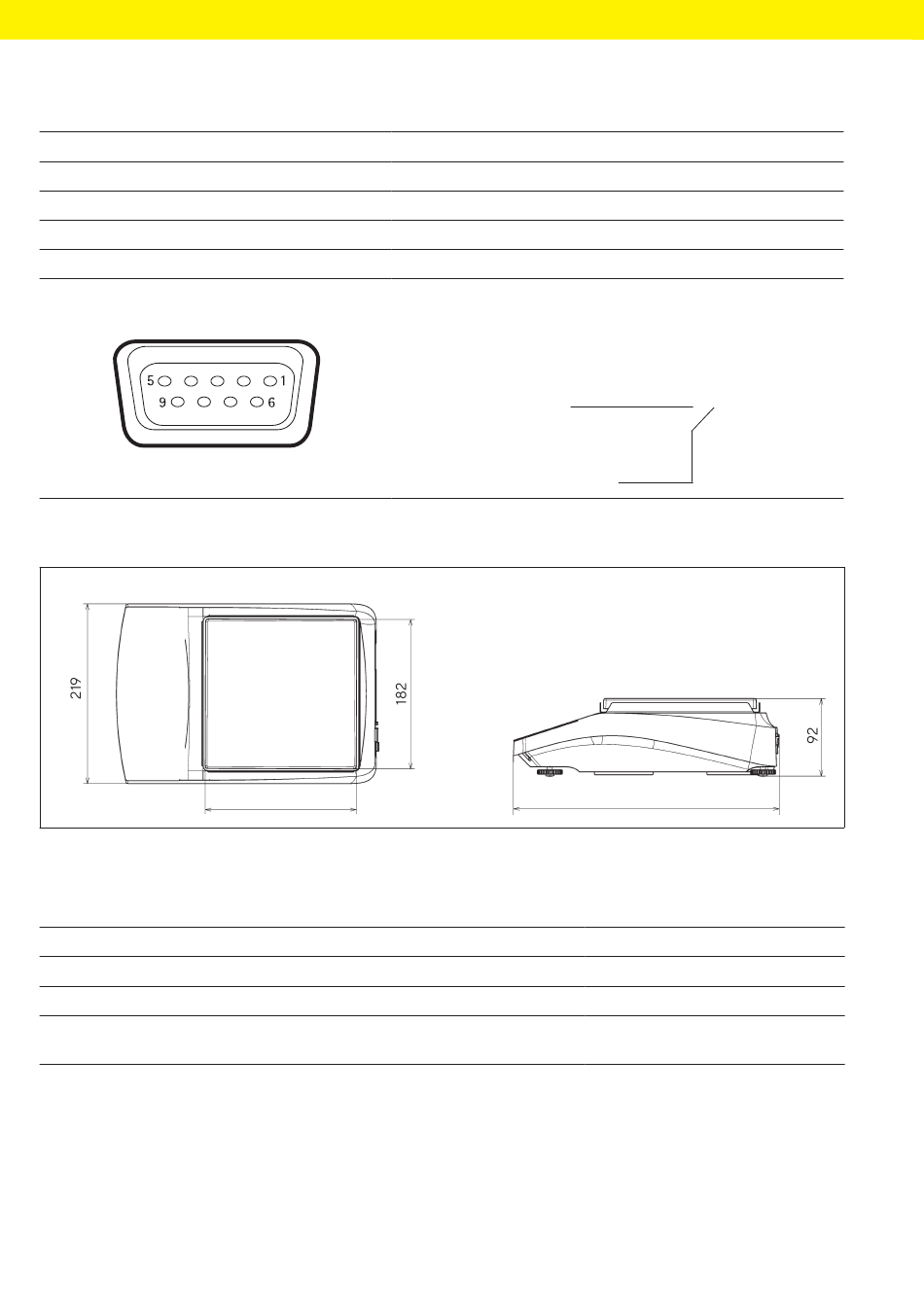

Fig. 8: Device dimensions in mm
14.11 Gross Weight
Devices with internal calibration and adjustment function (I-x)
Devices without internal calibration and adjustment function
Conformity-assessed devices without internal calibration and
adjustment function
50 Entris II Advanced Line Operating Instructions
®
Pin 1: Not assigned
Pin 2: Data output (TxD)
Pin 3: Data input (RxD)
Pin 4: Not assigned
Pin 5: Internal ground
Pin 6: Not assigned
Pin 7: Clear to Send (CTS)
Pin 8: Request to Send (RTS)
Pin 9: Universal remote switch
l
-
1
�
182 317
\
1
Unit Value
kg 7.00
kg 5.10
kg 5.40
/
1
l
-
1
�
