Sartorius PMA.Evolution Operating Manual

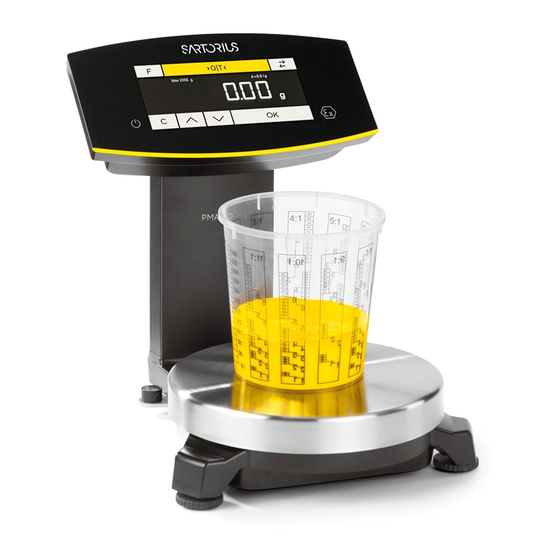

Paint-mixing scales for use in potentially explosive atmospheres
Hide thumbs Also See for PMA.Evolution:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Operating Manual
PMA.Evolution | PMA.HD
EVO1X | LAB1X
Paint-mixing Scales for Use in Potentially Explosive Atmospheres
98648-020-50
