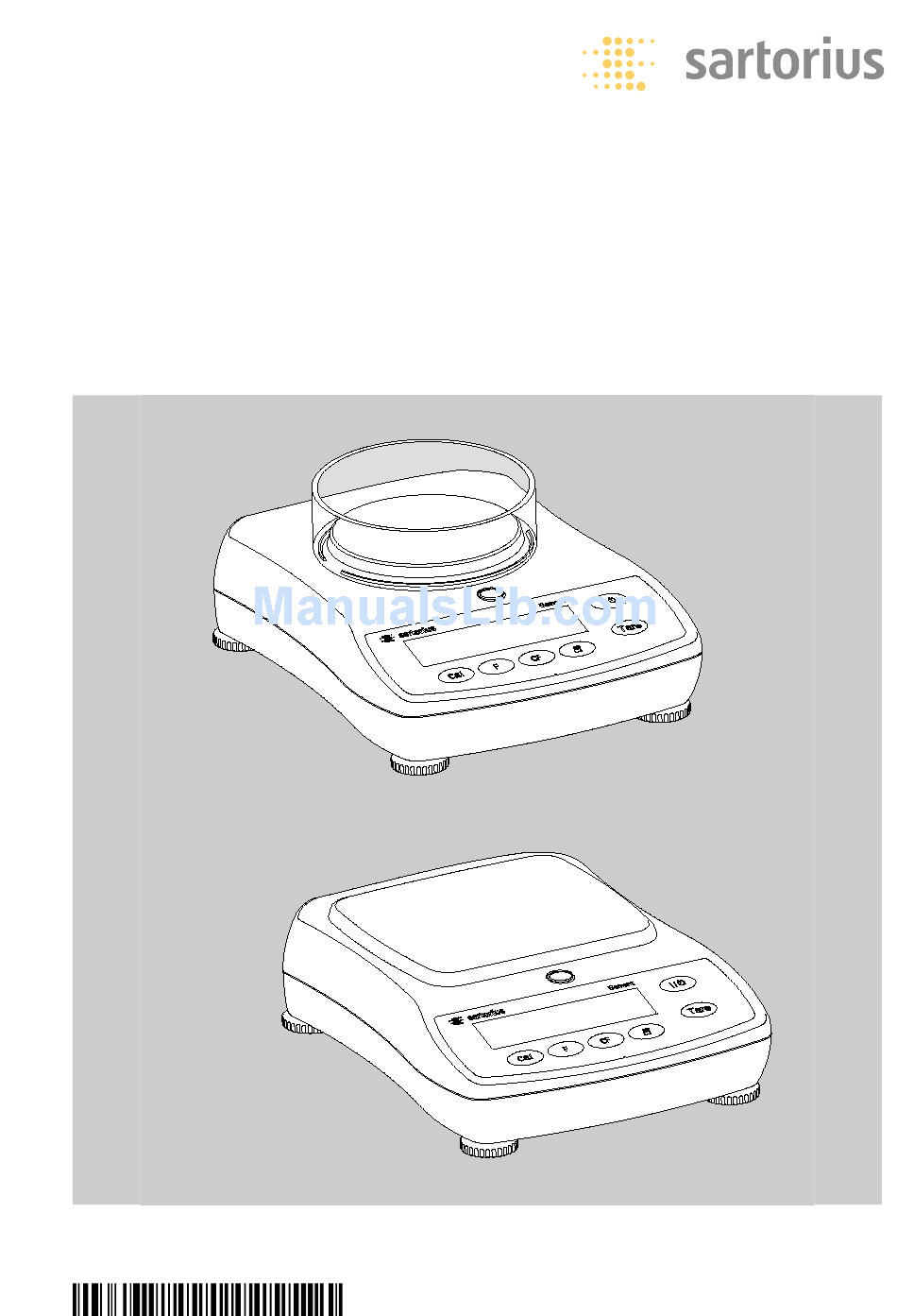

- Page 1 Operating Instructions Sartorius Element Series Electronic Precision Balances, Electronic Gem Scale 98648-013-44...
-
Page 2: Table Of Contents
Installation – It is recommended to connect Sartorius accessories and options, as these are optimally designed for use with your balance. – Do not open the balance/scale housing as this may void the manufacturer’s... -
Page 3: Getting Started
Getting Started Equipment Supplied – Balance/scale – Weighing pan – Plug-in AC adapter – Level indicator and adjustable feet Additional equipment with models ELT602, ELT402, ELT202, ELT1001, ELT601: – Calibration weight Additional equipment with model ELT103, GD502: – Calibration weight –... - Page 4 Use only original Sartorius AC adapters: – for Asia: 400081.1 – for the U.S.: 400314.1 Connecting the Balance/Scale to AC Power § Insert plug into the jack (located on back of the balance/scale) § Plug the AC adapter into an electrical outlet LISTED power supply 11 V–21 V compliant with...
- Page 5 Using a Non-Rechargeable/Rechargeable Battery (not for model ELT103, GD502) $ A non-rechargeable or rechargeable battery is not included with the equipment supplied. Use only a commercially available non-rechargeable (8+ AA/Mignon) or rechargeable battery. When using a rechargeable battery, be sure to recharge it outside the balance/scale using a sepa- rate charger.
- Page 6 Leveling the Balance/Scale § Always level the balance/scale again any time after it has been moved to a different location. Example: moving bubble from R to L § Turn the feet as shown in the diagram until the air bubble is centered within the circle of the level indicator.
-
Page 7: Operation
Operation Basic Weighing Function Description of the Keys Features – Zeroing the balance/scale You can zero the balance/scale within the entire weighing range, up to the maximum capacity. Preparation § Switch on the balance/scale: press the e key e On/off key: switches the balance/scale §... -
Page 8: Application Programs
Application Programs Toggling between Weight Units With this application program you can toggle the display of a weight value back and forth between two weight units (see table below). Example: Toggle weight unit from pounds [lb] (application) to grams [g] (basic unit) Step Key (or instruction) Display... -
Page 9: Counting
Counting Purpose With the Counting program you can determine the number of parts or items by weighing. Example: Determine the number of uncounted parts; weigh in the selectable reference sample quantity (in this example: 20) Step Key (or instruction) Display w >... -
Page 10: Weighing In Percent
Weighing in Percent Purpose This application program allows you to obtain weight readouts in percent which are in proportion to a reference weight. Example: Determine an unknown percentage; store the weight on the balance/scale as the reference percentage (100%) Step Key (or instruction) Display w >... -
Page 11: 11 "Hold" Display
“Hold” Display Purpose The last stable value remains displayed for 5 seconds after removing the sample from the pan. Example: Determine weight of oversized sample Step Key (or instruction) Display w > 2 sec 1. Select application program HLdon v repeatedly 2. -
Page 12: Totalizing
Totalizing Purpose With this application program you can add up successive weight values exceeding the capacity of the balance/scale. Example: Totalizing weight values Step Key (or instruction) Display w > 2 sec 1. Select application program v repeatedly 2. Select Totalizing 3. -
Page 13: Specific Gravity
Specific Gravity Purpose Use this application program to determine the specific gravity of a sample. The result is displayed with one decimal place. Beaker and wire not included with balance/scale. Example: Determine the specific gravity of a solid. Step Key (or instruction) Display w >... -
Page 14: Calibration/Span Adjustment
Calibration/Span Adjustment Calibration is recommended after initial installation and each time the balance/scale is moved. Features The weight required for calibration/ Calibration/adjustment can be span adjustment is displayed. performed only when: Standard calibration weights for selected models: to remove, see instructions on –... -
Page 15: Configuration (Setup Menu)
Configuration (Setup Menu) To configure the balance/scale; i.e., adapt the balance/scale to individual requirements. Step Key (or instruction) Display 1. Switch off the balance/scale 2. Switch on the balance/scale and w briefly while all segments are displayed Navigation in the Setup Menu Press briefly Press and hold Enter... -
Page 16: Error Codes
“Specifications” the weighing pan in place The weight readout The balance/scale was not Calibrate/adjust the is obviously wrong calibrated/adjusted before weighing balance/scale Balance/scale not zeroed Zero the balance/scale If any other errors occur, contact your local Sartorius customer service center. -
Page 17: Overview
Overview Specifications Model GD502 ELT103 ELT602 ELT402 ELT202 Weighing capacity 500 ct 100 g 600 g 400 g 200 g Readability 0.005 0.001 0.01 0.01 0.01 Tare range (subtractive) 500 ct 100 g 600 g 400 g 200 g Linearity <±g 0.015 ct 0.003 g 0.03 g... -
Page 18: Accessories (Options)
Accessories (Options) Product Order No. Data interface, mounting kit – RS-232 interface with cable YADAP-RS YADAP-USB – USB interface with cable Data printer YDP03-0CE Lock-down capability LC-1 (for anti-theft locking device) Calibration weights – for ELT6001 (5 kg; F2) YCW6548-00 –... - Page 20 Sartorius AG Weender Landstrasse 94–108 37075 Goettingen, Germany Phone +49.551.308.0 Fax +49.551.308.3289 www.sartorius.com Copyright by Sartorius AG, Goettingen, Germany. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior written permission of Sartorius AG.
