Summary of Contents for Sartorius EVO1Y

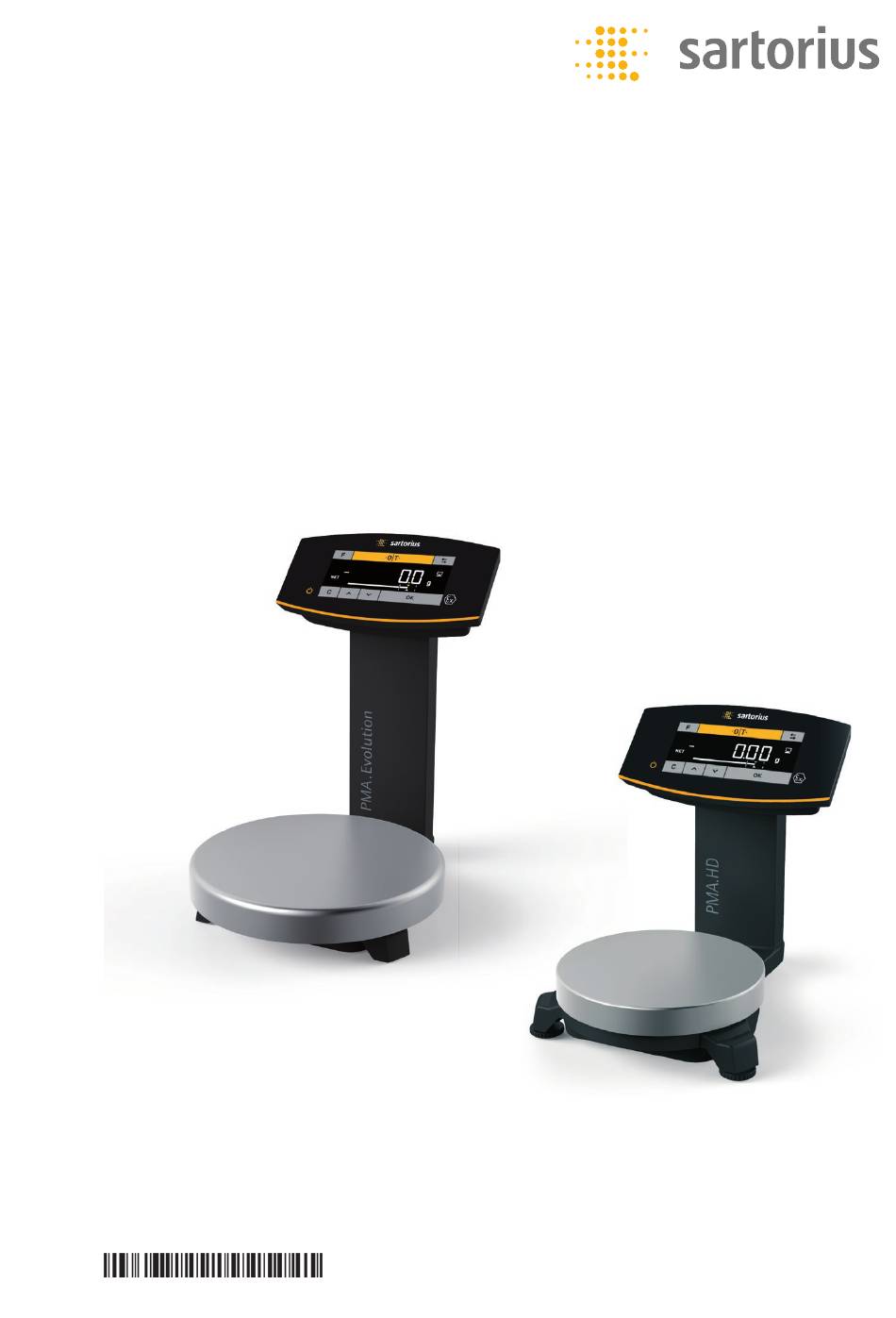

- Page 1 Operating Instructions PMA.Evolution | PMA.HD EVO1Y | LAB1Y Paint-mixing scales for use in potentially explosive atmospheres of zone 2 98648-020-45...
-
Page 3: Table Of Contents
6.7.2.6 Password Prompt ....6.7.2.7 Resetting the Scale: “RESET” ..EVO1Y | LAB1Y Operating Instructions... -
Page 4: About This Document
− Texts that follow this symbol are lists. Texts that follow this symbol describe activities which are to be performed in the specified order. Texts that following this symbol describe the result of an action. EVO1Y | LAB1Y Operating Instructions... -
Page 5: Safety
Ex Zone 2 (Category 3 Equipment) − In accordance with Directive 94/9/EC, the EVO1Y | LAB1Y model is a category 3 device, suitable for use in Zone 2 potentially explosive areas. EC Type Examination Certificates: FM15ATEX0008X... - Page 6 (moisture, foreign bodies). Before cleaning the AC adapter or the scale: Disconnect all devices from the power. The scale should only be opened by Sartorius-trained personnel with the power disconnected. Do not open the AC adapter. Avoid generating static electricity on the glass panel of the touch screen and plastic casing.
-
Page 7: Intended Use
The scale can be operated via the keypad as a stand-alone device or using applica- tion software (e.g., a paint-mixing program from a paint manufacturer) installed on a connected PC. The scale is connected to the PC/notebook installed outside of the potentially explosive area via a USB cable. EVO1Y | LAB1Y Operating Instructions... -
Page 8: Device Overview
Device Overview Device Overview Front View Item Description Operating and display elements (see also Chapter 3.3, page 10) Stand Weighing pan EVO1Y | LAB1Y Operating Instructions... -
Page 9: Rear View
AC adapter with country-specific mains adapter (optional) (Figure may deviate from product) USB connection cable Anti-theft locking device Grounding terminal for equipotential bonding Menu access switch Leveling (verified models only) Leveling feet (verified models only) EVO1Y | LAB1Y Operating Instructions... -
Page 10: Operating And Display Elements
Factor key for paint-mixing applications Zeroing/taring & Toggle key: Toggles the decimal places and/or unit Depends on the menu setting On/standby Clear key/display of correction factor for paint-mixing applications § Down ENTER key/MEM key for paint-mixing applications EVO1Y | LAB1Y Operating Instructions... - Page 11 Bar graph: scaled display showing capacity usage (in percent) Fourteen segment display Trend display Info on weight entry via application keypad (preset tare) Net value Plus (or minus) sign of the weight Display: − SETUP level − Component/factor for paint-mixing applications EVO1Y | LAB1Y Operating Instructions...
-
Page 12: Menu List
Toggle key on/off 1.3.3 |- - - - Toggle key off 1.3.3.1 |- - - - Toggle key on 1.3.3.2 Continued on next page ) Not available on scales verified for use in legal metrology EVO1Y | LAB1Y Operating Instructions... - Page 13 |- - - - Display off 2.1.9.2 | - - - BAR.MOD Bar graph mode 2.1.10 | - - - - Normal width 2.1.10.1 NORMAL | - - - - Extra wide 2.1.10.2 WIDE Continued on next page EVO1Y | LAB1Y Operating Instructions...
- Page 14 | - - - - Cancel by pressing Print key 3.1.2.2 | - - - FORMAT 3.1.3 | - - - - o 3.1.3.1 16 CHR. | - - - - 3.1.3.2 22 CHR. Continued on next page EVO1Y | LAB1Y Operating Instructions...
- Page 15 | - - - - Turkish 6.10 | - - - - Russian/Cyrillic 6.11 | - - - - Slovenian 6.12 | - - - - Serbian 6.13 | - - - - Number codes 6.25 CODES EVO1Y | LAB1Y Operating Instructions...
-
Page 16: Installation
Legislation requires that a seal be affixed to verified scales. On Sartorius devices, this seal takes the form of a sticker with the “Sartorius” logo. If the seal is removed, the validity of verification will become void and you must have your scale re-verified. -
Page 17: Installing The Scale
− USA and Japan (US+JP) − Europe (EU) − United Kingdom (GB) YEPS01-PS6 − Argentina (AR) − Brazil (BR) − Australia (AU) − South Africa (ZA) YEPS01-PS7 − China (CN) − India (IN) − Korea (KR) EVO1Y | LAB1Y Operating Instructions... - Page 18 − If the stated supply voltage or the plug design of the AC adapter does not comply with your country's standard, please inform your nearest Sartorius representative. − The power must be connected in accordance with the regulations applicable in your country.
-
Page 19: Connecting The Scale
Establish a low resistance connection from the scale to a customer-supplied equipotential bonding conductor connection via the equipotential bonding conductor connection on the device using a suitable grounding cable with a gauge of at least 4 mm (not included). EVO1Y | LAB1Y Operating Instructions... -
Page 20: Anti-Theft Locking Device
Connecting an AC Adapter (Optional) Insert the USB cable into the YEPS01-USB AC adapter. Plug the AC adapter into the wall outlet (supply voltage). Anti-theft Locking Device If required, secure the scale at the back. EVO1Y | LAB1Y Operating Instructions... -
Page 21: Commissioning
Using a Scale Verified for Use in Legal Metrology: − Ensure that there is a warm-up time of at least 24 hours after initial connection to the power supply. EVO1Y | LAB1Y Operating Instructions... -
Page 22: Operation
Wait approx. 30 minutes after connecting the scale to the power supply before adjusting the scale and weighing. Using a Scale Verified for Use in Legal Metrology: − Ensure that there is a warm-up time of at least 24 hours after initial connection to the power supply. EVO1Y | LAB1Y Operating Instructions... -
Page 23: Calibration
Remove the filled paint can from the weighing pan. Danger of Scale Damage! Never close a paint can using a hammer while it is still on the weighing pan. When closing the paint can, place it on a firm, stable surface. EVO1Y | LAB1Y Operating Instructions... -
Page 24: Weighing With Two Decimal Places (Not For Models Verified For Use In Legal Metrology)
Using the keys O (up) and P (down), the factor can be changed − in the range 0.10 to 1.0 in increments of 0.01 − in the range 1.0 to 6.0 in increments of 0.1 EVO1Y | LAB1Y Operating Instructions... -
Page 25: Weighing Using The Recalculation Function
Keep in mind that the total quantity of paint (liter) at the conclusion of filling increases each time you correct a component. Press the § key to display the correction factor of the fill quantity. “C” = correction factor EVO1Y | LAB1Y Operating Instructions... - Page 26 1000.0 ”04” appears again in the top left of the display after the correction factor is displayed (fourth color component). Add additional color components of the formula as described above. This concludes the recalculation example. EVO1Y | LAB1Y Operating Instructions...
-
Page 27: Menu Settings
A detailed list of possible settings can be found in Chapter “3.4 Menu List,” page 12. 6.7.2 Configuring the Main Menu Settings 6.7.2.1 Accessing the Setup Menu Press and hold the ! key for approx. 2 sec. SETUP (level 1) appears on the display. EVO1Y | LAB1Y Operating Instructions... -
Page 28: 6.7.2.2 Language Setting
Pressing the toggle key Z toggles the scale between the default settings (see page Chapter 6.7.2.3, page 28) and settings defined in “SETUP > APP.PRG. > UNIT” and “SETUP > APP.PRG. > DSP.DEC.” Access the Setup menu (see Chapter 6.7.2.1, page 27). EVO1Y | LAB1Y Operating Instructions... -
Page 29: 6.7.2.5 Activating The "Lock" Function
You can switch to the numbers 7 8 9 0 and back again via the O / P keys. Enter the password by entering the individual numbers on the display. When you enter the correct password, the “LOCK” function will be disabled. EVO1Y | LAB1Y Operating Instructions... -
Page 30: 6.7.2.7 Resetting The Scale: "Reset
Press O / P, select MEN.RES., press ! |- - - Press O / P, select DEFAUL. DEFAUL. |- - - o NO Press !, “o” appears The factory settings are loaded Press § several times to exit the menu EVO1Y | LAB1Y Operating Instructions... - Page 31 Electrical Hazard from Voltage or Current! Repair work on the (optional) AC adapter must only be carried out by trained service technicians. Contact Sartorius Service for proper repairs (see Chapter 14, page 39). To ensure the continued accuracy of your scale, we recommend scheduling regular servicing at least once a year.
- Page 32 “LOCK” function off the “LOCK” − Manual “LOCK” function function is active − Check the connection − Switch off the manual “LOCK” function EVO1Y | LAB1Y Operating Instructions...
- Page 33 The crossed-out waste bin symbol indicates that separate collection is required. In Germany and several other countries, Sartorius itself assumes responsibility for the return and legally compliant disposal of its electronic and electrical products. These products may not be placed with household waste or brought to collection centers run by local public disposal operations –...
- Page 34 ID code (explosion protection) II 3G Ex ic nA IIB T4 Gc as per EC Type Examination Certificate no. FM15ATEX0008X Power supply Only via USB interface or Sartorius AC adapter YEPS01-USB Input supply voltage +4.5 to 5.0 Power consumption 2.0 (typically)
- Page 35 Unit Value Model PMA.Evolution, EVO1Y Accuracy class Type PMA-EV Weighing capacity max 7500 Scale interval d Verification scale interval e Temperature range +10°C to +30°C Tare equalization range (subtractive) < 100% of max. weighing capacity EVO1Y | LAB1Y Operating Instructions...
- Page 36 A virtual serial interface (virtual COM port) is set up on the PC as a device type via the USB port. This virtual serial interface is identified and operated by the application program. The xBPI and SBI protocols can be transmitted via the virtual serial interface. EVO1Y | LAB1Y Operating Instructions...
- Page 37 You can uninstall the software driver for the USB port via the Device Manager (only if the scale is connected): Use the right mouse button to click on the respective port. Then select “uninstall” from the context menu that appears. EVO1Y | LAB1Y Operating Instructions...
- Page 38 13 Accessories Accessories Order Number Power supply (5.2 V/1.4 A) YEPS01-USB USB connection cable YCC01-0040M5 Mains adapter set for YEPS01-USB YEPS01-PS1 − USA and Japan (US+JP) − Europe (EU) − United Kingdom (GB) EVO1Y | LAB1Y Operating Instructions...
- Page 39 − 1 kg, accuracy class F1 YCW613-AC-00 14 Sartorius Service Sartorius Service is at your disposal for queries regarding the device. For information about the service addresses, services provided or to contact a local representative, please visit the Sartorius website (www.sartorius.com).
- Page 40 Conformity & Licenses EVO1Y | LAB1Y Operating Instructions...
- Page 41 Connections between the device and peripherals must be made using shielded cables in order to maintain compliance with FCC radio frequency emission limits. Any modifications made to this device that are not approved by Sartorius may void the authority granted to the user by the FCC to operate this equipment.
- Page 42 Alternative connections Plug provided Secure plug (standard equipment supplied) with standard so that it cannot become accidently equipment disconnected. Ensure that an emergency off switch is available. Use EX plug 2015-11-11 Dr. D. Klausgrete Sheet EVO1Y | LAB1Y Operating Instructions...
- Page 43 If your equipment needs to be repaired, use only original spare parts supplied by the manufacturer! Any tampering with the equipment by anyone, other than repair work done by authorized Sartorius service technicians, will result in the loss of EX conformity and in the forfeiture of all claims under the manufacturer's warranty.
- Page 44 FM15ATEX0008X Equipment or protective system: PMA.Evolution EVO1Yab-c and LAB1Yab-c (Type Reference and Name) Name of Applicant: Sartorius Lab Instruments GmbH & Co. KG Address of Applicant: Otto-Brenner-Strasse 20 Göttingen 37079 Germany This equipment or protective system and any acceptable variation thereto is specified in the schedule to this certificate and documents therein referred to.
- Page 45 THIS CERTIFICATE MAY ONLY BE REPRODUCED IN ITS ENTIRETY AND WITHOUT CHANGE FM Approvals Europe Ltd. One Georges Quay Plaza, Dublin. Ireland. D02 E440 T: +353 (0) 1761 4200 E-mail: atex@fmapprovals.com www.fmapprovals.com F ATEX 029 (Mar/2019) Page 2 of 3 EVO1Y | LAB1Y Operating Instructions...
- Page 46 THIS CERTIFICATE MAY ONLY BE REPRODUCED IN ITS ENTIRETY AND WITHOUT CHANGE FM Approvals Europe Ltd. One Georges Quay Plaza, Dublin. Ireland. D02 E440 T: +353 (0) 1761 4200 E-mail: atex@fmapprovals.com www.fmapprovals.com F ATEX 029 (Mar/2019) Page 3 of 3 EVO1Y | LAB1Y Operating Instructions...
- Page 47 Conformity & Licenses EVO1Y | LAB1Y Operating Instructions...
- Page 48 Conformity & Licenses EVO1Y | LAB1Y Operating Instructions...
- Page 49 Conformity & Licenses EVO1Y | LAB1Y Operating Instructions...
- Page 50 Conformity & Licenses EVO1Y | LAB1Y Operating Instructions...
- Page 51 Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Strasse 20 37079 Goettingen, Germany Phone: +49.551.308.0 www.sartorius.com The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
