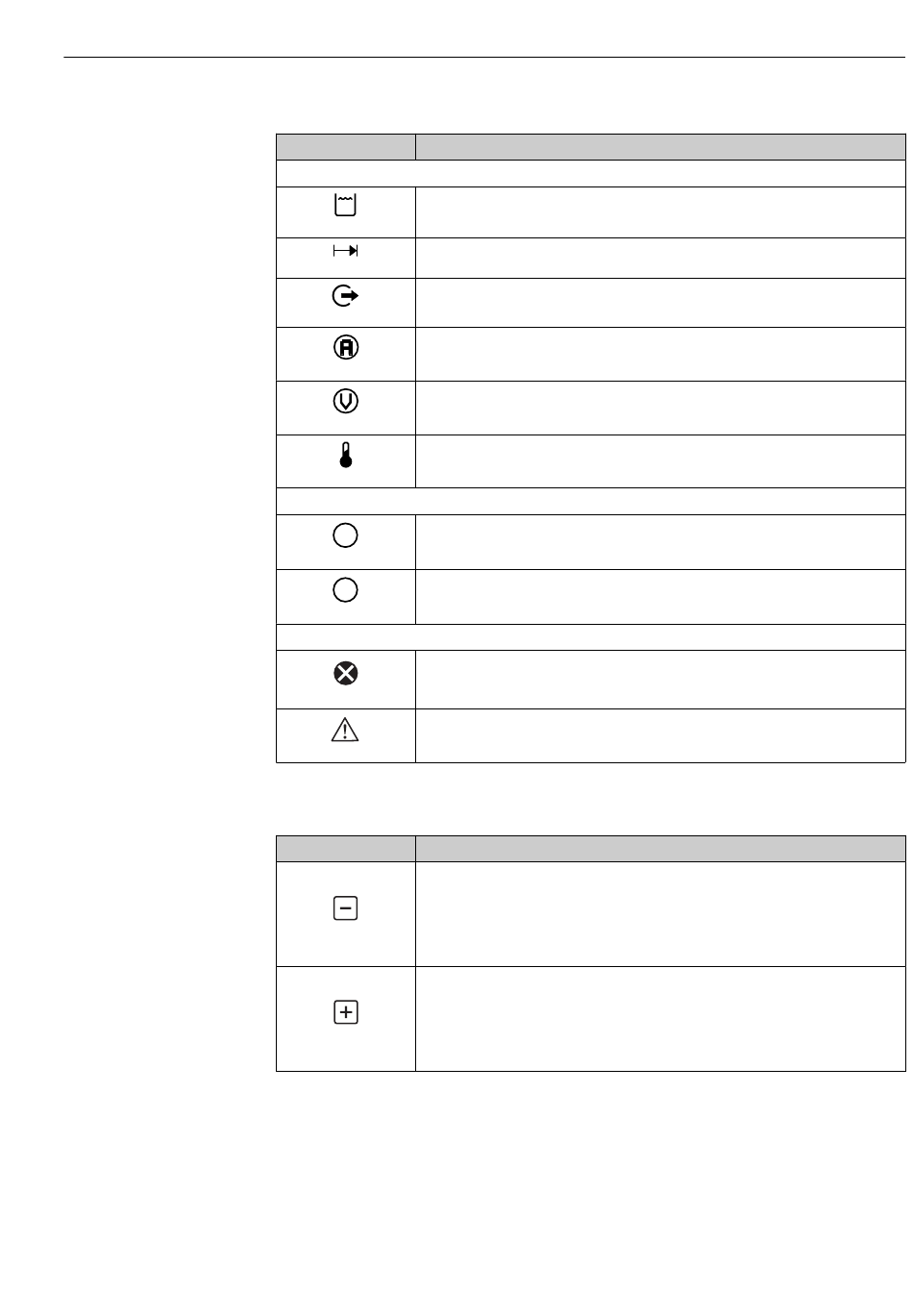

Measured value symbols
Symbol
Measured values
A0032892
A0032893
A0032908
A0032894
A0032895
A0032896
Measuring channels
1
A0032897
2
A0032898
Status of the measured value
Measurement is interrupted. The output assumes the defined alarm condition. A
A0018361
A0018360
8.3.2

Operating elements

Operating key Meaning
Minus key
In a menu, submenu
Moves the selection bar upwards in a picklist.
A0018330
In the text and numeric editor
In the input screen, moves the selection bar to the left (backwards).
Plus key
In a menu, submenu
Moves the selection bar downwards in a picklist.
A0018329
In the text and numeric editor
In the input screen, moves the selection bar to the right (forwards).
Meaning
Distance
Current output
Measured current
Terminal voltage
Electronics or sensor temperature
Measuring channel 1
Measuring channel 2
"Alarm" status
diagnostic message is generated.
"Warning" status
The device continues to measure. A diagnostic message is generated.
