Installation
28
2
mm (in)

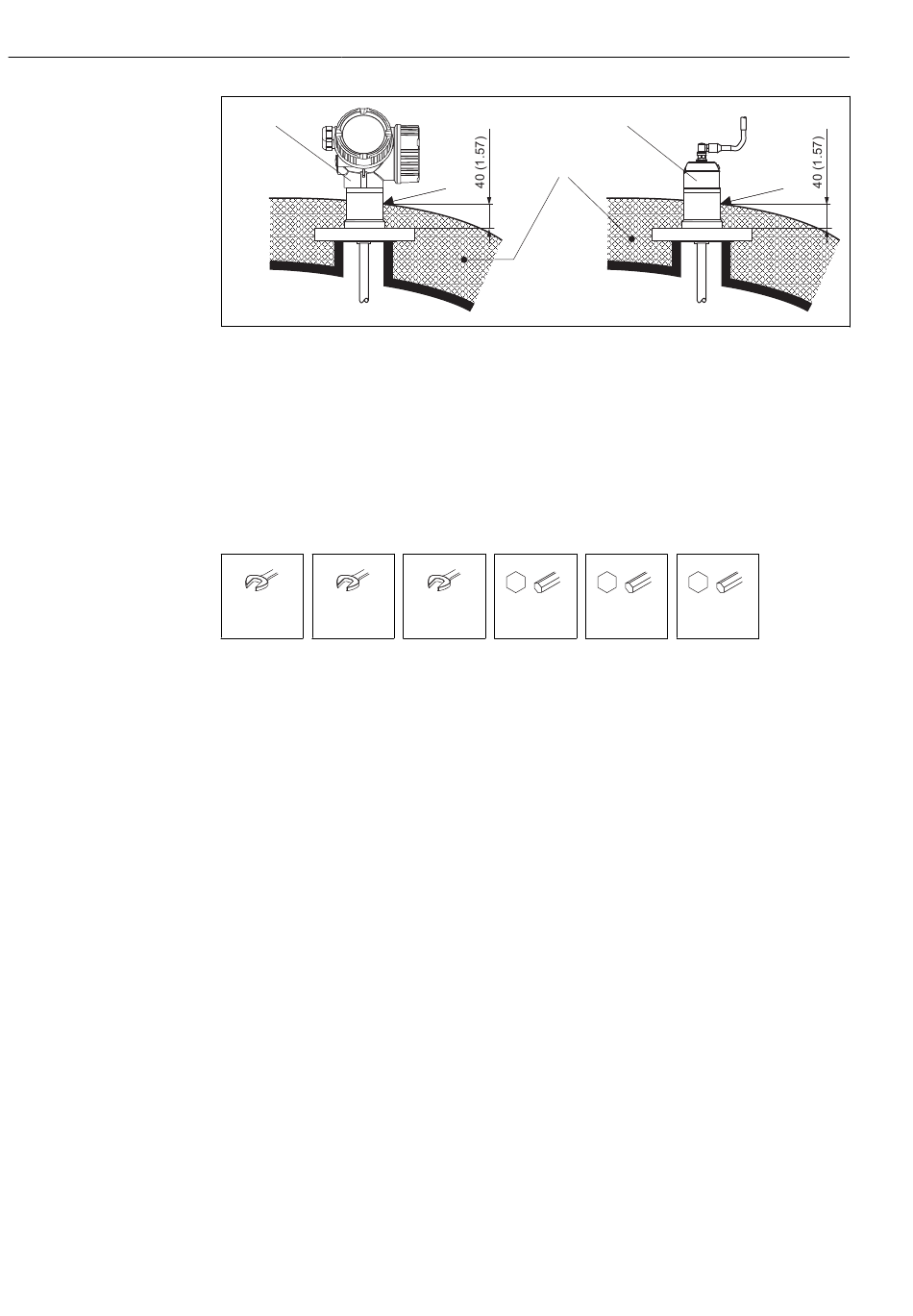

 10 Process connection with flange - FMP57
1 Vessel insulation
2 Compact device
3 Sensor, remote
6.2 Mounting the device
6.2.1 Tool list
AF 8 mm AF 36 mm
• To shorten rope probes: use a saw or bolt cutters.
• To shorten rod or coaxial probes: use a saw.
• For flanges and other process connections: use an appropriate mounting tool.
6.2.2 Shortening the probe
Shortening rod probes
Rod probes must be shortened if the distance to the vessel floor or outlet cone is less than
10 mm (0.4 in). To shorten, saw off the bottom end of the rod probe.
Shortening rope probes
Rope probes must be shortened if the distance to the vessel floor or outlet cone is less than
150 mm (6 in).
1
MAX
AF 55 mm
3 mm
Levelflex FMP56, FMP57 HART
3
MAX
6 mm 4 mm
Endress+Hauser
A0014654
