KA01061F/00/EN/16.15
71282384
Products

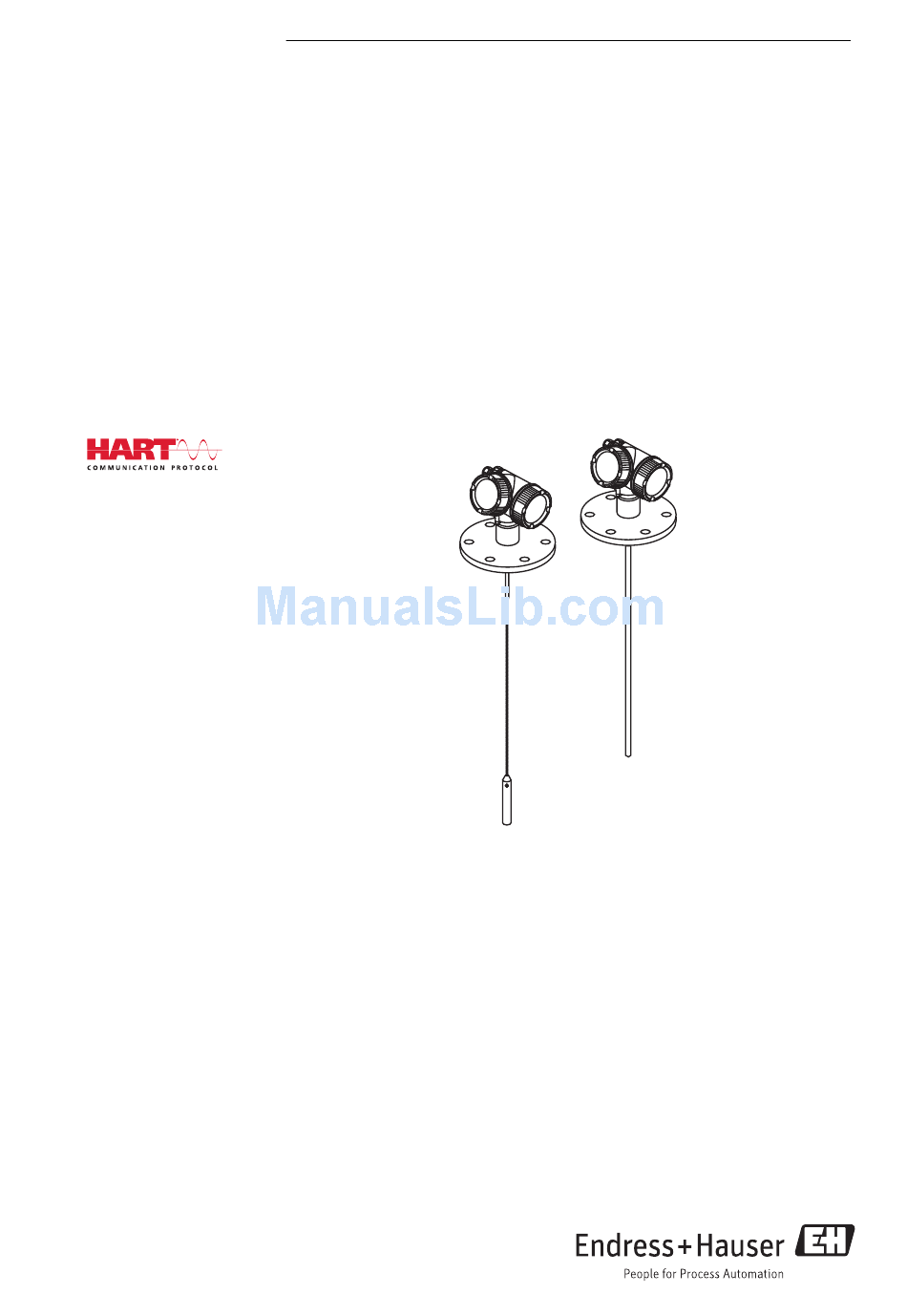

Brief Operating Instructions
Levelflex FMP56, FMP57
HART
Guided wave radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
– Internet:
www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Endress+Hauser Levelflex FMP56 HART
Summary of Contents for Endress+Hauser Levelflex FMP56 HART
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: – Internet: www.endress.com/deviceviewer – Smart phone/tablet: Endress+Hauser Operations App...
- Page 2 Levelflex FMP56, FMP57 HART Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
-
Page 3: Table Of Contents
User-specific applications ............. . . 50 Endress+Hauser... -
Page 4: Important Document Information
1.1.3 Tool symbols A0011222 A0011220 A0011219 A0013442 A0011221 Cross-head Flat blade Torx screwdriver Allen key Hexagon wrench screwdriver screwdriver Endress+Hauser... - Page 5 Indicates the non-hazardous area. 1.1.6 Symbols at the device Symbol Meaning Safety instructions Observe the safety instructions contained in the associated Operating Instructions. Temperature resistance of the connection cables Specifies the minimum value of the temperature resistance of the connection cables. Endress+Hauser...
-
Page 6: Basic Safety Instructions
The manufacturer is not liable for damage caused by improper or non-designated use. Verification for borderline cases: ‣ For special measured materials and cleaning agents, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of wetted materials, but does not accept any warranty or liability. -
Page 7: Workplace Safety
It meets general safety standards and legal requirements. It also complies with the EC directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. Endress+Hauser... -
Page 8: Product Description
Product description Levelflex FMP56, FMP57 HART Product description Product design 3.1.1 Levelflex FMP56/FMP57 A0012470 1 Design of the Levelflex Electronics housing Process connection (here as an example: flange) Rope probe End-of-probe weight Rod probe Endress+Hauser... -
Page 9: Incoming Acceptance And Product Identification
): All information about the measuring device is displayed. • Enter the serial number from the nameplates into the Endress+Hauser Operations App or scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations App: all the information for the measuring device is displayed. - Page 10 Only 33 digits of the extended order code can be indicated on the nameplate. If the extended order code exceeds 33 digits, the rest will not be shown. However, the complete extended order code can be viewed in the operating menu of the device in the Extended order code 1 to 3 parameter. Endress+Hauser...
-
Page 11: Storage, Transport
Do not fasten lifting devices (hoisting slings, lifting eyes etc.) at the housing or the probe but at the process connection. Take into account the mass center of the device in order to avoid unintended tilting. ‣ Comply with the safety instructions, transport conditions for devices over 18kg (39.6lbs) (IEC61010). A0013920 A0014264 Endress+Hauser... -
Page 12: Mounting
Mounting Levelflex FMP56, FMP57 HART Mounting Mounting requirements 6.1.1 Suitable mounting position A0021468 3 Mounting requirements for Levelflex Endress+Hauser... - Page 13 • When using more than one Levelflex: Minimum distance between the sensor axes: 100 mm (3.94 in) • Distance (C) from end of probe to bottom of the vessel: – Rope probe: > 150 mm (6 in) – Rod probe: > 10 mm (0.4 in) Endress+Hauser...
- Page 14 Make the rope longer than the required measuring range such that there is a sag in the middle of the rope that is ≥ 1cm/(1 m rope length) [0.12 inch/(1 ft rope length)]. Endress+Hauser...
- Page 15 Probe rod, uncoated Sleeve bored tight to ensure electrical contact between the rod and sleeve! Short metal pipe, e.g. welded in place Probe rod, coated Plastic sleeve, e.g. PTFE, PEEK or PPS Short metal pipe, e.g. welded in place Endress+Hauser...
- Page 16 Poor grounding of the end of probe may cause measuring errors. ‣ Apply a narrow sleeve which has good electrical contact to the probe. NOTICE Welding may damage the main electronics module. ‣ Before welding: Ground the probe and dismount electronics. Endress+Hauser...
-
Page 17: Mounting The Device
10 mm (0.4 in). The rods of a rod probe are shortened by sawing at the bottom end. Rod probes of FMP52 can not be shortened as they are coated. Shortening rope probes Rope probes must be shortened if the distance to the container floor or outlet cone is less than 150 mm (6 in). Endress+Hauser... - Page 18 Saw off the rope at a right angle or cut it off with a bolt cutter. Insert the rope completely into the weight. Screw the set screws into place. Due to the clamping coating of the setscrews application of a screw locking fluid is not necessary. Endress+Hauser...
- Page 19 If a seal is used, be sure to use unpainted metal bolts to ensure good electrical contact between probe flange and process flange. Mounting rope probes NOTICE Electrostatic discharges may damage the electronics. ‣ Earth the housing before lowering the rope into the vessel. Endress+Hauser...
- Page 20 • The mounting bracket for wall or pipe mounting of the electronics housing • The connection cable (length as ordered). The cable has got one straight and one angled plug (90°). Depending on the local conditions the angled plug can be connected at the probe or at the electronics housing. Endress+Hauser...
- Page 21 Mounting the electronics housing ø42...60 (1.65...2.36) 122 (4.8) 140 (5.5) 175 (6.9) 158 (6.2) A0014793 4 Mounting the electronics housing using the mounting bracket; dimensions: mm (in) Wall mounting Pipe mounting Connecting the cable Required tools: Open-end wrench 18AF Endress+Hauser...
- Page 22 Angled plug at the probe Angled plug at the electronics housing Length of the remote cable as ordered 6.2.5 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned: Endress+Hauser...
- Page 23 Feed the spiral cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages. Screw the cover of the electronics compartment firmly back onto the transmitter housing. Endress+Hauser...
- Page 24 Mounting Levelflex FMP56, FMP57 HART Tighten the securing clamp again using the Allen key (Torque: 2.5 Nm). Endress+Hauser...
-
Page 25: Post-Installation Check
• Process pressure (refer to the chapter on "Material load curves" of the "Technical Information" document) • Ambient temperature range • Measuring range Are the measuring point identification and labeling correct (visual inspection)? Is the device adequately protected from precipitation and direct sunlight? Are the securing screw and securing clamp tightened securely? Endress+Hauser... -
Page 26: Electrical Connection
Terminal assignment 2-wire; 4-20mA HART Without integrated overvoltage protection With integrated overvoltage protection Active barrier with power supply (e.g. RN221N): Observe terminal voltage HART communication resistor (≥250 Ω): Observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Endress+Hauser... - Page 27 Levelflex FMP56, FMP57 HART Electrical connection Analog display device: Observe maximum load Cable screen; observe cable specification 4-20mA HART (passive): Terminals 1 and 2 Overvoltage protection module Terminal for potential equalization line Cable entry Endress+Hauser...
- Page 28 Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display device: Observe maximum load Cable screen; observe cable specification 4-20mA HART (passive): Terminals 1 and 2 Switch output (open collector): Terminals 3 and 4 Terminal for potential equalization line Endress+Hauser...
- Page 29 Levelflex FMP56, FMP57 HART Electrical connection Cable entry for 4-20mA HART line Cable entry for switch output line Overvoltage protection module Endress+Hauser...
- Page 30 Connection current output 1 Supply voltage for current output 1 (e.g. RN221N); Observe terminal voltage Cable screen; observe cable specification HART communication resistor (≥250 Ω): Observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Endress+Hauser...
- Page 31 Terminal for the potential equalization line Cable entry for current output 1 Cable entry for current output 2 This version is also suited for single-channel operation. In this case, current output 1 (terminals 1 and 2) must be used. Endress+Hauser...
- Page 32 Protective earth, observe cable specification 4...20mA HART (active): Terminals 3 and 4 Supply voltage: Terminals 1 and 2 Supply voltage: Observe terminal voltage, observe cable specification Terminal for potential equalization Cable entry for signal line Cable entry for power supply Endress+Hauser...
- Page 33 Protective earth, observe cable specification 4...20mA HART (active): Terminals 3 and 4 Supply voltage: Terminals 1 and 2 Supply voltage: Observe terminal voltage, observe cable specification Terminal for potential equalization Cable entry for signal line Cable entry for power supply Endress+Hauser...
- Page 34 (flange or threaded connection) or to the external ground terminal. An easily accessible power switch must be installed in the proximity of the device. The power switch must be marked as a disconnector for the device (IEC/EN61010). Endress+Hauser...
- Page 35 For the versions with fieldbus plug connector (M12 or 7/8"), the signal line can be connected without opening the housing. Pin assignment of the M12 plug connector Meaning Signal + not connected Signal - Ground A0011175 Pin assignment of the 7/8" plug connector Meaning Signal - Signal + Not connected Screen A0011176 Endress+Hauser...
-
Page 36: Power Supply
I ≥ 4,5 mA (HART multidrop mode), a voltage of U ≥ 11,5 V is sufficient throughout the entire range of ambient temperatures. For ambient temperatures T ≤ -20 °C (-4 °F) a minimum voltage of 16 V is required for the startup of the device at the MIN error current (3.6 mA). Endress+Hauser... - Page 37 Feature 020 of the product structure: option B Feature 010 of the product structure For ambient temperatures T ≤ -30 °C (-22 °F) a minimum voltage of 14 V is required for the startup of the device at the MIN error current (3.6 mA). Endress+Hauser...
- Page 38 ≤ -30 °C (-22 °F) a minimum voltage of 16 V is required for the startup of the device at the MIN error current (3.6 mA). Polarity reversal protection Admissible residual ripple at < 1 V f = 0 to 100 Hz Admissible residual ripple at < 10 mV f = 100 to 10000 Hz Endress+Hauser...
-
Page 39: Connecting The Device
< 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K... - Page 40 Push the cable through the cable entry. To ensure tight sealing, do not remove the sealing ring from the cable entry. Strip the cable. Strip the cable ends 10 mm (0.4 in). For stranded cables, also attach wire end ferrules. Firmly tighten the cable glands. Endress+Hauser...
- Page 41 To remove cables from the terminal: Press on the groove between the terminals using a flat- tip screwdriver ≤ 3 mm (0.12 inch) while pulling the cables out of the terminals. ≤ 3 (0.12) mm (in) A0013661 Endress+Hauser...
-
Page 42: Post-Connection Check
If required: Is the protective earth connected correctly ? If supply voltage is present: Is the device ready for operation and do values appear on the display module? Are all housing covers installed and firmly tightened? Is the securing clamp tightened correctly? Endress+Hauser... -
Page 43: Commissioning Via Wizard
After finishing the last page, click "End of sequence" to close the wizard. If the wizard is cancelled before all necessary parameters have been set, the device may be in an undefined state. A reset to the default settings is recommended in this case. Endress+Hauser... -
Page 44: Commissioning (Via Operating Menu)
Representation of a parameter (here: a parameter with selection list) 3.1 Header containing parameter name and error symbol (if an error is active) 3.2 Selection list; marks the current parameter value. Input matrix for numbers Input matrix for alphanumeric and special characters Endress+Hauser... - Page 45 Reduces the contrast (brighter setting). A0013953 Plus/Enter key combination (press and hold down the keys simultaneously) Increases the contrast (darker setting). A0013954 Minus/Plus/Enter key combination (press and hold down the keys simultaneously) For measured value display A0013955 Enables or disables the keypad lock. Endress+Hauser...
- Page 46 The context menu is closed and the operational display appears. Calling up the menu via the context menu Open the context menu. Press to navigate to the desired menu. Press to confirm the selection. The selected menu opens. Endress+Hauser...
-
Page 47: Operating Menu
In case of operation via operating tools (e.g. FieldCare), the "Language" parameter is located at "Setup→Advanced setup→Display" On entering the "Expert" menu, an access code is always requested. If a customer specific access code has not been defined, "0000" has to be entered. Endress+Hauser... -
Page 48: Unlock The Device
X X X X X X X 20.50 Main menu 0104-1 Language English Operation Setup Language 0104-1 English à Deutsch Español Français Language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Betrieb Setup A0013996 12 Using the example of the local display Endress+Hauser... -
Page 49: Configuration Of A Level Measurement
Select bin property. Setup → Empty calibration Enter the distance E between the reference point R and the minimum level (0%). Setup → Full calibration Enter distance F between the minimum (0%) and maximum (100%) level. Setup → Level Displays the measured level L. Endress+Hauser... -
Page 50: User-Specific Applications
Compare the displayed distance to the real distance in order to start the recording of the mapping curve. User-specific applications For details of setting the parameters of user-specific applications, see separate documentation: BA01004F/00/DE (Operating Instructions FMP56/FMP57, HART) For the Expert submenu refer to: GP01000F/00/DE (Description of Device Parameters FMP5x, HART) Endress+Hauser... - Page 52 *71282384* 71282384 www.addresses.endress.com...
