Levelflex FMP56, FMP57 HART
Endress+Hauser

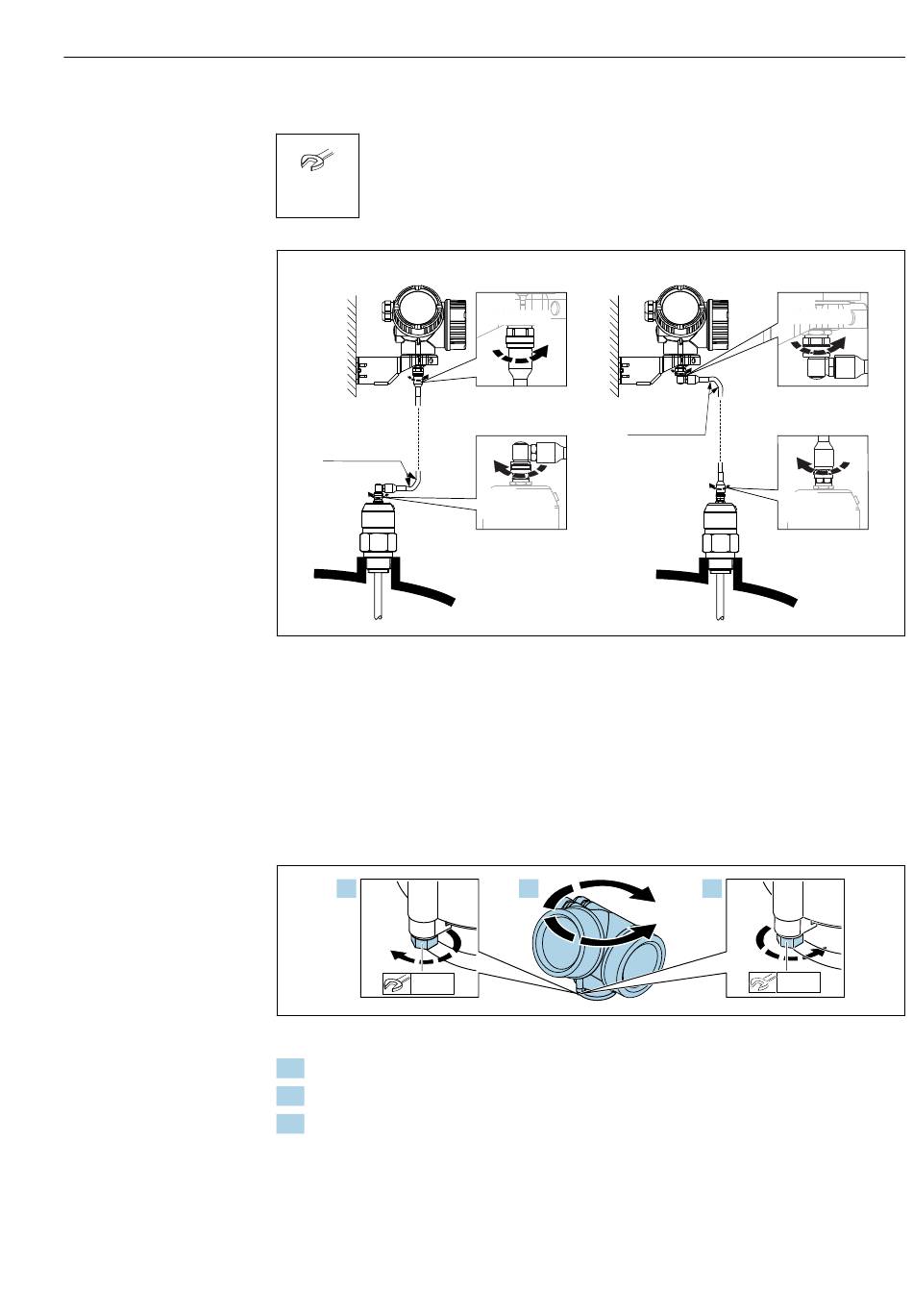

Connecting the connecting cable

AF 18 mm
A
C
r = 100 (4)
min
 12 Connecting the connecting cable. The cable can be connected in the following ways:. Unit of
measurement mm (in)
A Angled plug at the probe
B Angled plug at the electronics housing
C Length of the remote cable as ordered
6.2.5

Turning the transmitter housing

To provide easier access to the connection compartment or display module, the transmitter
housing can be turned:
1.
8 mm
1. Unscrew the securing screw using an open-ended wrench.
2. Rotate the housing in the desired direction.
3. Tighten the securing screw (1.5 Nm for plastic housings; 2.5 Nm for aluminum or
stainless steel housing).
B
6 Nm
(4.42 lbf ft)
r = 100 (4)
min
6 Nm
(4.42 lbf ft)
2.
max. 350°
Installation
6 Nm
(4.42 lbf ft)
C
6 Nm
(4.42 lbf ft)
A0014794
3.
8 mm
A0032242
33
