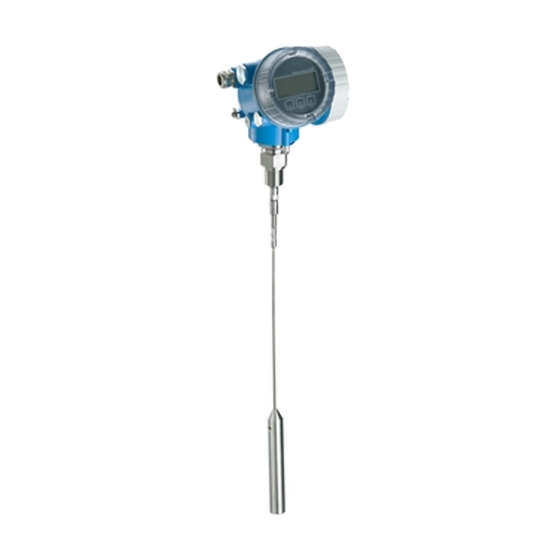

Endress+Hauser HART Levelflex FMP56 Brief Operating Instructions

Guided wave radar
Hide thumbs Also See for HART Levelflex FMP56:
Table of Contents

Advertisement

Quick Links

Download this manual
KA01061F/00/EN/19.22-00
71565966
2022-04-05
Products
Brief Operating Instructions
Levelflex FMP56, FMP57
HART
Guided wave radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HART Levelflex FMP56 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser HART Levelflex FMP56

Summary of Contents for Endress+Hauser HART Levelflex FMP56

  • Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...

  • Page 2: About This Document

    • Outer ground terminal; device is connected to the plant grounding system. 1.1.3 Tool symbols Flat-blade screwdriver Allen key Torx screwdriver Open-ended wrench 1.1.4 Symbols for certain types of information and graphics  Permitted Procedures, processes or actions that are permitted  Forbidden Procedures, processes or actions that are forbidden Endress+Hauser...

  • Page 3: Basic Safety Instructions

    Trained, qualified specialists must have a relevant qualification for the specific function and task ‣ Are authorized by the plant owner/operator ‣ Are familiar with federal/national regulations ‣ Must have read and understood the instructions in the manual and supplementary documentation ‣ Follow instructions and comply with conditions Endress+Hauser...

  • Page 4: Intended Use

    The manufacturer is not liable for damage caused by improper or non-intended use. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 5: Product Safety

    The measuring system meets the legal requirements of the applicable EAC guidelines. These are listed in the corresponding EAC Declaration of Conformity along with the standards applied. The manufacturer confirms successful testing of the device by affixing to it the EAC mark. Endress+Hauser...

  • Page 6: Incoming Acceptance And Product Identification

    • Do the nameplate data match the ordering information on the delivery note? • If required (see nameplate): are the Safety Instructions (XA) provided? If one of these conditions is not met, please contact your Endress+Hauser sales office. Product identification The device can be identified in the following ways: •...
  • Page 7 Levelflex FMP56, FMP57 HART Incoming acceptance and product identification A0043233 Endress+Hauser...

  • Page 8: Mounting Requirements

    Mounting Levelflex FMP56, FMP57 HART Mounting Mounting requirements 4.1.1 Suitable mounting position A0021468  1 Installation conditions for Levelflex Endress+Hauser...
  • Page 9 Securing the probe Securing rope probes A0012609 Rope sag: ≥ 10 mm/(1 m probe length) [0.12 in/(1 ft probe length)] Reliably grounded end of probe Reliably insulated end of probe Fastener in female thread of probe end weight Insulated fastening kit Endress+Hauser...
  • Page 10 • In the case of WHG approval: a support is required for probe lengths ≥ 3 m (10 ft). • In general, rod probes must be secured in the event of horizontal flow (e.g. from an agitator) or strong vibrations. • Only secure rod probes directly at the end of the probe. Endress+Hauser...
  • Page 11 Plastic sleeve, e.g. PTFE, PEEK, PPS Short metal pipe, e.g. welded in place NOTICE Poor grounding of the probe end may cause incorrect measurements. ‣ Use a sleeve with a narrow bore to ensure good electrical contact between the sleeve and the probe rod. Endress+Hauser...

  • Page 12: Mounting The Device

    • When installing in metal vessels, ensure there is good metal contact between the process connection and the vessel. 4.2.2 Mounting devices with a flange If a seal is used to mount the device, use uncoated metal screws to ensure good electrical contact between the process flange and the probe flange. Endress+Hauser...
  • Page 13 The probe rope must hang fully extended before an accurate measurement can be performed. 4.2.4 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned: Endress+Hauser...
  • Page 14 Loosen the screw of the securing clamp of the electronics compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise. Unscrew the electronics compartment cover and check the cover seal; replace it if necessary. Turning the display module A0036401 Endress+Hauser...

  • Page 15: Electrical Connection

    Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key (3 mm), tighten the screw of the securing clamp on the electronics compartment cover with 2.5 Nm. Electrical connection Connecting requirements 5.1.1 Terminal assignment Endress+Hauser...
  • Page 16 Active barrier for power supply (e.g. RN221N); observe terminal voltage Resistor for HART communication (≥ 250 Ω); observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display unit; observe maximum load Cable screen; observe cable specification Measuring device Endress+Hauser...
  • Page 17 Active barrier for power supply (e.g. RN221N); observe terminal voltage Resistor for HART communication (≥ 250 Ω); observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display unit; observe maximum load Cable screen; observe cable specification Measuring device Switch output (open collector) Endress+Hauser...
  • Page 18 Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display unit; observe maximum load Cable screen; observe cable specification Measuring device Analog display unit; observe maximum load Active barrier for power supply (e.g. RN221N), current output 2; observe terminal voltage Endress+Hauser...
  • Page 19 Resistor for HART communication (≥ 250 Ω); observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display unit; observe maximum load Cable screen; observe cable specification Measuring device Supply voltage; observe terminal voltage, observe cable specification Endress+Hauser...
  • Page 20 (flange or threaded connection) or to the external ground terminal. An easily accessible power switch must be installed in the proximity of the device. The power switch must be marked as a disconnector for the device (IEC/EN61010). Endress+Hauser...
  • Page 21 Device plug In the case of the device versions with a plug, the housing does not need to be opened to connect the signal cable. A0011175  12 Pin assignment of M12 plug Signal + Not assigned Signal - Ground Endress+Hauser...
  • Page 22 Electrical connection Levelflex FMP56, FMP57 HART A0011176  13 Pin assignment of 7/8" plug Signal - Signal + Not assigned Shielding Endress+Hauser...

  • Page 23: Supply Voltage

    If the Bluetooth module is used, the minimum supply voltage increases by 2 V. At ambient temperatures T ≤ -30 °C, a terminal voltage U ≥ 16 V is required to start the device with the minimum failure current (3.6 mA). Endress+Hauser...
  • Page 24 At ambient temperatures T ≤ -30 °C, a terminal voltage U ≥ 16 V is required to start the device with the minimum failure current (3.6 mA). If the Bluetooth module is used, the minimum supply voltage increases by 2 V. Endress+Hauser...
  • Page 25 If the Bluetooth module is used, the minimum supply voltage increases by 2 V. Integrated polarity reversal protection Permitted residual ripple < 1 V with f = 0 to 100 Hz Permitted residual ripple < 10 mV with f = 100 to 10000 Hz Endress+Hauser...

  • Page 26: Overvoltage Protection

    Loosen the screw of the securing clamp of the connection compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise. Unscrew the connection compartment cover and check the cover seal; replace it if necessary. Endress+Hauser...

  • Page 27: Plug-In Spring-Force Terminals

    The electrical connection of device versions without an integrated overvoltage protection is via plug-in spring-force terminals. Rigid conductors or flexible conductors with ferrules can be inserted directly into the terminal without using the lever, and create a contact automatically. Endress+Hauser...

  • Page 28: Operation Options

    2.5 Nm. Operation options The device can be operated as follows: • Operation via operating menu (display) • DeviceCare and Fieldcare, see Operating Instructions • SmartBlue (app), Bluetooth (optional), see Operating Instructions Endress+Hauser...

  • Page 29: Structure And Function Of The Operating Menu

    Visualization of a parameter (here: parameter with picklist) 3.1 Header containing parameter name and error symbol (if an error is active) 3.2 Picklist;  marks the current parameter value. Input matrix for numbers Input matrix for alphanumeric and special characters Endress+Hauser...
  • Page 30 • If present, opens the help text for the function of the parameter. • In a text and numeric editor: Pressing the key briefly: • Opens the selected group. • Carries out the selected action. • Carries out the selected action. Endress+Hauser...

  • Page 31: Access To The Operating Menu Via The Local Display

    When you call up the "Expert" menu, you are always asked for an access code. If a customer-specific access code has not been defined, "0000" must be entered. 6.2.1 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: Endress+Hauser...

  • Page 32: Switching On The Device

    7.1.1 Disabling write protection If the device is write-protected, write protection must first be disabled. See the Operating Instructions of the device for this purpose: BA01004F (FMP56/FMP57, HART) Setting the operating language Factory setting: English or ordered local language Endress+Hauser...
  • Page 33 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache Deutsch Betrieb Setup A0029420  18 Taking the example of the local display Endress+Hauser...

  • Page 34: Device Configuration

     Specify the empty distance E (distance from the reference point R to the 0% mark). Setup → Full calibration  Specify the full distance F (distance from the 0% mark to the 100% mark). Setup → Level  Displays the measured level L (for verification purposes). Endress+Hauser...
  • Page 35  Displays the distance D between the reference point R and the level L (for verification purposes). Setup → Signal quality  Displays the signal quality of the analyzed level echo (for verification purposes). Setup → Mapping  →  Confirm distance  Compare the distance displayed with the actual value to start recording an interference echo map. Endress+Hauser...
  • Page 36 *71565966* 71565966 www.addresses.endress.com...
