Levelflex FMP56, FMP57 HART
Endress+Hauser

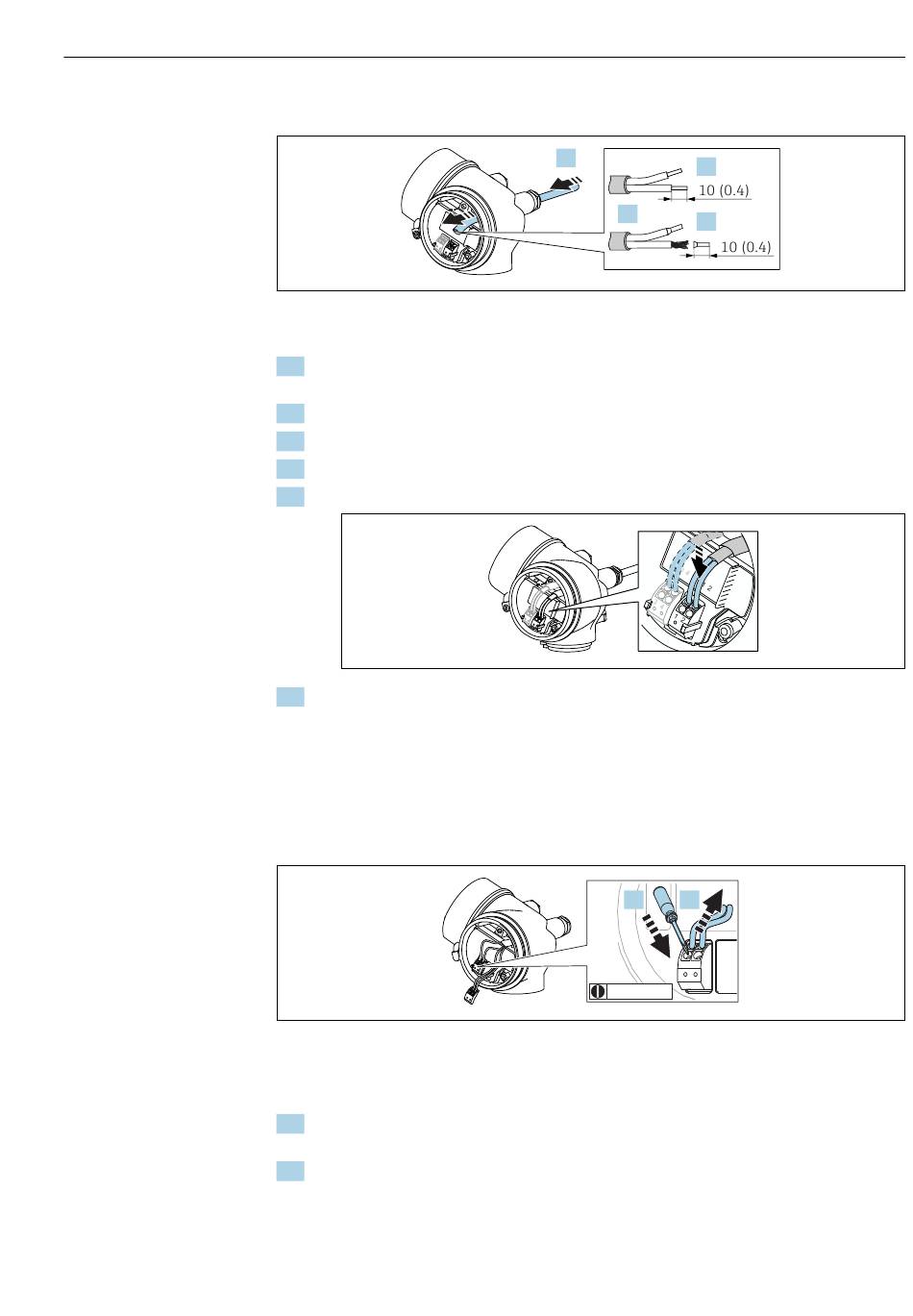

7.2.2

Connecting

 27 Unit: mm (in)
1. Push the cable through the cable entry . To ensure tight sealing, do not remove the
sealing ring from the cable entry.
2. Remove the cable sheath.
3. Strip the cable ends 10 mm (0.4 in). In the case of stranded cables, also fit ferrules.
4. Firmly tighten the cable glands.
5. Connect the cable according to the terminal assignment.

6. If using shielded cables: Connect the cable shield to the ground terminal.
7.2.3

Plug-in spring-force terminals

The electrical connection of device versions without an integrated overvoltage protection is
via plug-in spring-force terminals. Rigid conductors or flexible conductors with ferrules can
be inserted directly into the terminal without using the lever, and create a contact
automatically.
 28 Unit: mm (in)
To remove the cable from the terminal again:
1. Use a flat-blade screwdriver ≤ 3 mm (0.12 in) to press down on the slot between the
two terminal holes.
2. Simultaneously pull the cable end out of the terminal.
1.
3.
2.
3.
1. 2.
≤ 3 (0.12)
Electrical connection
A0036418
A0034682
A0013661
45
