BA01004F/00/EN/24.24-00

71664104

2024-06-06

01.03.zz (Device firmware)

Products

Operating Instructions

Levelflex FMP56, FMP57

HART

Guided-wave radar

Solutions

Services

Need help?

Do you have a question about the Levelflex FMP56 and is the answer not in the manual?

Questions and answers

Summary of Contents for Endress+Hauser Levelflex FMP56

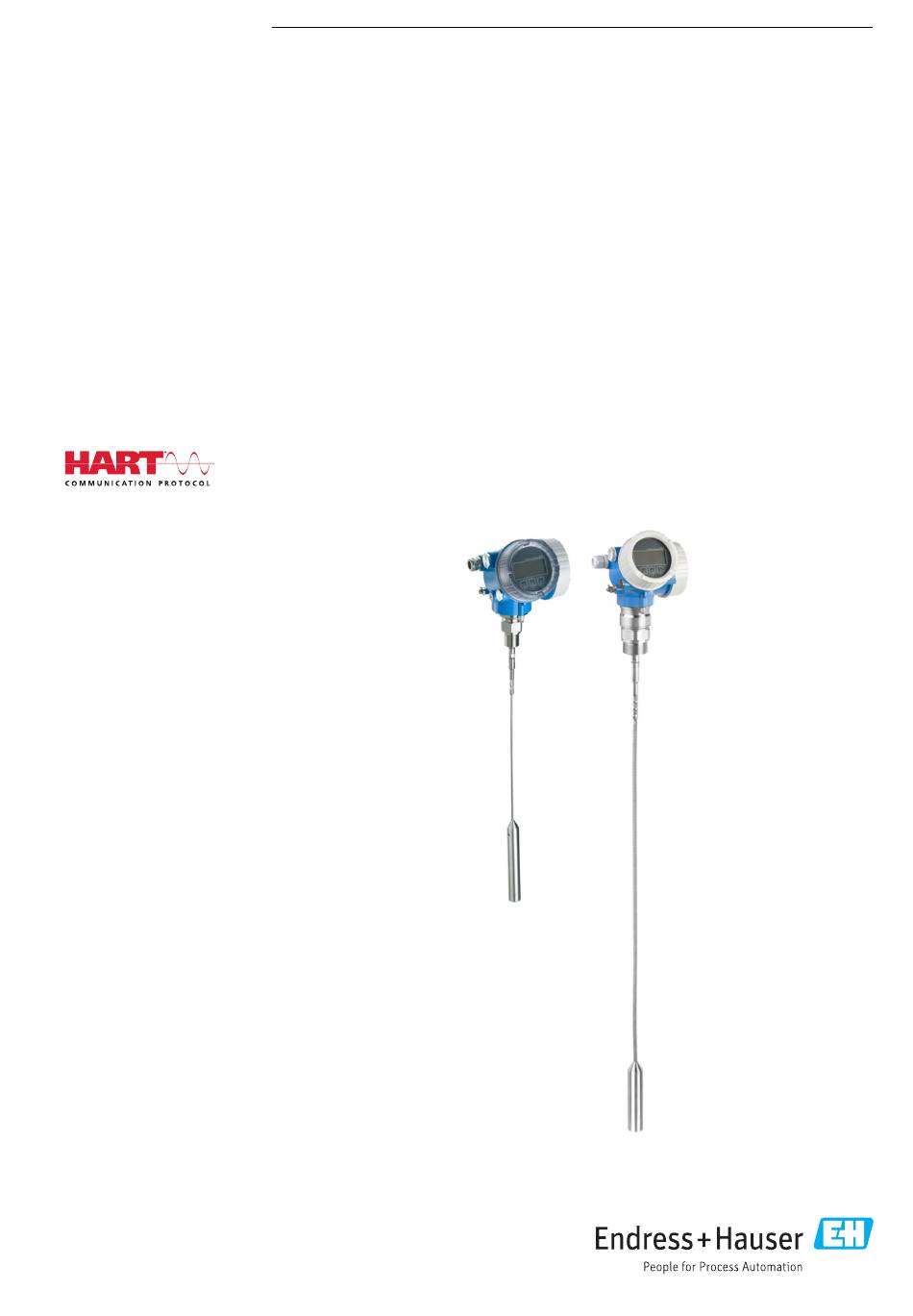

Page 1 Products Solutions Services BA01004F/00/EN/24.24-00 71664104 2024-06-06 01.03.zz (Device firmware) Operating Instructions Levelflex FMP56, FMP57 HART Guided-wave radar...
Page 2 Levelflex FMP56, FMP57 HART Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
Page 3 Access to operating menu via local 3.1.1 Levelflex FMP56/FMP57 ..display ..... . . 47 3.1.2...
Page 4 Table of contents Levelflex FMP56, FMP57 HART 16.1.3 Rod extension (centering device) Commissioning using the wizard . . . 65 HMP40 ..... . . 89 16.1.4 Mounting kit, insulated .
Page 5 Levelflex FMP56, FMP57 HART About this document About this document Document function These Operating Instructions contain all the information required in the various life cycle phases of the device: from product identification, incoming acceptance and storage, to installation, connection, operation and commissioning, through to troubleshooting, maintenance and disposal.
Page 6 About this document Levelflex FMP56, FMP57 HART Allen key Open-ended wrench 1.2.4 Symbols for certain types of information and graphics Permitted Procedures, processes or actions that are permitted Preferred Procedures, processes or actions that are preferred Forbidden Procedures, processes or actions that are forbidden Tip...
Page 7 For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. Endress+Hauser...
Page 8 Registered trademark of the FieldComm Group, Austin, Texas, USA Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...
Page 9 The manufacturer is not liable for harm caused by improper or unintended use. Clarification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.
Page 10 Basic safety instructions Levelflex FMP56, FMP57 HART Workplace safety When working on and with the device: ‣ Wear the required personal protective equipment as per national regulations. Operational safety Risk of injury! ‣ Operate the device only if it is in proper technical condition, free from errors and faults.
Page 11 Levelflex FMP56, FMP57 HART Product description Product description Product design 3.1.1 Levelflex FMP56/FMP57 A0012470  1 Design of the Levelflex Electronics housing Process connection (here as an example: flange) Rope probe End-of-probe weight Rod probe Endress+Hauser...
Page 12 Product description Levelflex FMP56, FMP57 HART 3.1.2 Electronics housing A0012422  2 Design of the electronics housing Electronics compartment cover Display module Main electronics module Cable glands (1 or 2, depending on instrument version) Nameplate I/O electronics module Terminals (pluggable spring terminals)
Page 13  All the information about the measuring device is displayed. ‣ Endress+Hauser Operations app; manually enter the serial number indicated on the nameplate or scan the 2D matrix code on the nameplate.  All the information about the measuring device is displayed.
Page 14 Incoming acceptance and product identification Levelflex FMP56, FMP57 HART 4.2.2 Manufacturer address Endress+Hauser SE+Co. KG Hauptstraße 1 79689 Maulburg, Germany Place of manufacture: See nameplate. Endress+Hauser...
Page 15 Levelflex FMP56, FMP57 HART Storage, transport Storage, transport Storage temperature • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use original packaging. Transporting to the measuring point WARNING Housing or probe may become damaged or break off.
Page 16 Installation Levelflex FMP56, FMP57 HART Installation Mounting requirements 6.1.1 Suitable mounting position A0021468  3 Installation positions Spacing requirements when mounting • Distance (A) between the vessel wall and rod and rope probes: • For smooth metallic walls: > 50 mm (2 in) •...
Page 17 Levelflex FMP56, FMP57 HART Installation Additional mounting requirements • When mounting outdoors, a weather protection cover (1) can be used to protect the device against extreme weather conditions. • In metallic vessels, preferably do not mount the probe in the center of the vessel (2), as this would lead to increased interference echoes.
Page 18 Installation Levelflex FMP56, FMP57 HART • Product structure, feature 600 "Probe design": • Version MB "Remote sensor, 3 m cable" • Version MC "Remote sensor, 6 m cable" • Version MD "Remote sensor, 9 m cable" • The connecting cable is included in the delivery with these versions.
Page 19 Levelflex FMP56, FMP57 HART Installation L [m] A0017170  4 Silica sand in metal silo with smooth walls; tensile load as a function of level L for rope diameters 6 mm (0.24 in) and 4 mm (0.16 in) Silo diameter 12 m (40 ft)
Page 20 Installation Levelflex FMP56, FMP57 HART L [m] A0017172  6 Wheat in metal silo with smooth walls; tensile load as a function of level L for rope diameters 6 mm (0.24 in) and 4 mm (0.16 in) Silo diameter 12 m (40 ft)
Page 21 Levelflex FMP56, FMP57 HART Installation Tensile loading capacity of rope probe and breaking load (silo ceiling) The ceiling of the silo must be designed to withstand the maximum breaking load. FMP56 Rope 4 mm (¹⁄₆ in) 316 • Tensile loading capacity 12 kN •...
Page 22 Installation Levelflex FMP56, FMP57 HART Sealing The thread and the type of seal comply with DIN3852 Part 2, screwed plug, form A. The following types of sealing ring can be used: • For thread G¾": according to DIN7603 with dimensions 27 mm × 32 mm •...
Page 23 Levelflex FMP56, FMP57 HART Installation Rod extension/centering device HMP40 for FMP57 For FMP57 with rope probes, the rod extension/centering device HMP40 is available as an accessory. It must be used if the probe rope would otherwise come into contact with the lower edge of the nozzle.
Page 24 Installation Levelflex FMP56, FMP57 HART 6.1.5 Securing the probe Securing rope probes A0012609 Sag: ≥ 10 mm/m (0.12 in/ft) probe length Reliably grounded end of probe Reliably insulated end of probe Fastener in female thread of probe weight Insulated fastening kit •...
Page 25 Levelflex FMP56, FMP57 HART Installation ø a ø b ø<25 (1.0) 3 (0.12) » mm (in) A0012607 Unit of measurement mm (in) Probe rod, uncoated Sleeve with narrow bore to ensure electrical contact between the sleeve and the rod. Short metal pipe, e.g. welded in place Probe rod, coated Plastic sleeve, e.g.
Page 26 Rod extension/centering device HMP40 (see "Accessories") Installation with rod extension/centering device (accessory): Strong dust generation can lead to build-up behind the centering disk. This can result in interference echoes. For other installation options, please contact Endress+Hauser. Mounting from the side mm (in) A0014140 •...
Page 27 Levelflex FMP56, FMP57 HART Installation Non-metal vessels A0012527 Non-metal vessel Metal sheet or metal flange To ensure good measurement results when mounting on non-metal vessels • Use a device with a metal flange (minimum size DN50/2"). • Alternatively, mount a metal plate with a diameter of at least 200 mm (8 in) at a right angle to the probe at the process connection.
Page 28 Installation Levelflex FMP56, FMP57 HART mm (in) A0014654  10 Process connection with flange - FMP57 Vessel insulation Compact device Sensor, remote Mounting the device 6.2.1 Tool list AF 8 mm AF 36 mm AF 55 mm 3 mm 6 mm 4 mm •...
Page 29 Levelflex FMP56, FMP57 HART Installation A0021693 Rope material 316 • A: 4 mm (0.16 in) • B: 40 mm (1.6 in) • C: 3 mm; 5 Nm (3.69 lbf ft) Rope material 316 • A: 6 mm (0.24 in) • B: 70.5 mm (2.78 in)
Page 30 Installation Levelflex FMP56, FMP57 HART 5. Saw off the rope at a right angle or cut it off with a bolt cutter. 6. Insert the rope completely into the weight. 7. Screw the setscrews back into place. Due to the clamping coating of the setscrews, it is not necessary to apply a locking compound.
Page 31 Levelflex FMP56, FMP57 HART Installation Screw the device with the threaded connection into a sleeve or flange and then secure it to the process vessel via the sleeve/flange. • When screwing into place, turn by the hex bolt only: • Thread ¾": 36 mm •...
Page 32 Installation Levelflex FMP56, FMP57 HART 6.2.4 Mounting the "Sensor, remote" version This section only applies for devices with the version "Probe design" = "Sensor, remote" (feature 600, version MB/MC/MD). The following is included in the delivery with the version "Probe design" = "Remote": •...
Page 33 Levelflex FMP56, FMP57 HART Installation Connecting the connecting cable AF 18 mm 6 Nm 6 Nm (4.42 lbf ft) (4.42 lbf ft) = 100 (4) = 100 (4) 6 Nm 6 Nm (4.42 lbf ft) (4.42 lbf ft) A0014794  12 Connecting the connecting cable.
Page 34 Installation Levelflex FMP56, FMP57 HART 6.2.6 Turning the display Opening the cover 3 mm A0021430 1. Loosen the screw of the securing clamp of the electronics compartment cover using an Allen key (3 mm) and turn the clamp 90 ° counterclockwise.
Page 35 Levelflex FMP56, FMP57 HART Installation  Is the measuring device protected against precipitation and sunlight?  Are the securing screws and cover lock tightened securely?  Does the measuring device comply with the measuring point specifications? For example: •  Process temperature •  Process pressure •...
Page 36 Electrical connection Levelflex FMP56, FMP57 HART Electrical connection Connecting requirements 7.1.1 Terminal assignment Terminal assignment, 2-wire: 4 to 20 mA HART A0036498  13 Terminal assignment, 2-wire: 4 to 20 mA HART Without integrated overvoltage protection With integrated overvoltage protection...
Page 37 Levelflex FMP56, FMP57 HART Electrical connection Terminal assignment, 2-wire: 4 to 20 mA HART, switch output A0036500  15 Terminal assignment, 2-wire: 4 to 20 mA HART, switch output Without integrated overvoltage protection With integrated overvoltage protection Connection 4 to 20 mA, HART passive: terminals 1 and 2, without integrated overvoltage protection...
Page 38 Electrical connection Levelflex FMP56, FMP57 HART Connection example for the digital input A0015910  18 Connection example for the digital input Pull-up resistor Digital input Terminal assignment, 2-wire: 4 to 20 mA HART, 4 to 20 mA A0036500  19...
Page 39 Levelflex FMP56, FMP57 HART Electrical connection Terminal assignment, 4-wire: 4 to 20 mA HART (10.4 to 48 V A0036516  21 Terminal assignment, 4-wire: 4 to 20 mA HART (10.4 to 48 V Connection 4 to 20 mA HART (active): terminals 3 and 4...
Page 40 Electrical connection Levelflex FMP56, FMP57 HART CAUTION To ensure electrical safety: ‣ Do not disconnect the protective ground connection. ‣ Disconnect the device from the supply voltage before disconnecting the protective ground. Connect protective ground to the inner ground terminal (3) before connecting the power supply.
Page 41 Levelflex FMP56, FMP57 HART Electrical connection A0011175  25 Pin assignment of M12 plug Signal + Not assigned Signal - Ground A0011176  26 Pin assignment of 7/8" plug Signal - Signal + Not assigned Shielding Endress+Hauser...
Page 42 Electrical connection Levelflex FMP56, FMP57 HART 7.1.4 Supply voltage 2-wire, 4-20mA HART, passive 2-wire; 4-20mA HART "Approval" Terminal voltage U at device Maximum load R, depending on the supply voltage U of the power supply unit 3) 4) • Non-hazardous 11.5 to 35 V...
Page 43 Levelflex FMP56, FMP57 HART Electrical connection 2-wire; 4-20mA HART, 4-20mA "Approval" Terminal voltage U at device Maximum load R, depending on the supply voltage U of the power supply unit Channel 1: 3) 4) 5) 13.5 to 30 V R [ ] Ω...
Page 44 Nominal discharge 10 kA current (8/20 µs) External overvoltage protection module The HAW562 or HAW569 for example from Endress+Hauser are suitable options for external overvoltage protection. More information is provided in the following documents: • HAW562: TI01012K • HAW569: TI01013K...
Page 45 Levelflex FMP56, FMP57 HART Electrical connection 7.2.2 Connecting A0036418  27 Unit: mm (in) 1. Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry. 2. Remove the cable sheath.
Page 46 Electrical connection Levelflex FMP56, FMP57 HART 7.2.4 Closing the cover of the connection compartment 3 mm 2,5 Nm A0021491 1. Screw down the cover of the connection compartment. 2. Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key (3 mm), tighten the screw of the securing clamp on the connection compartment cover with 2.5 Nm.
Page 47 Levelflex FMP56, FMP57 HART Operation options Operation options Overview of operation options 8.1.1 Access to operating menu via local display Operation with Pushbuttons Touch control Order code for "Display; Option C "SD02" Option E "SD03" operation" A0036312 A0036313 Display elements...
Page 48 Field Xpert SMT70/SMT77, smartphone or computer with operating tool (e.g. DeviceCare/FieldCare , AMS Device View, SIMATIC PDM) Bluetooth modem with connecting cable (e.g. VIATOR) Transmitter Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox Service interface (CDI) of the measuring instrument (= Endress+Hauser Common Data Interface) Endress+Hauser...
Page 49 Levelflex FMP56, FMP57 HART Operation options Operation via Bluetooth® wireless technology Requirements A0036790  31 Device with Bluetooth module Electronics housing of the device Bluetooth module This operation option is only available for devices with Bluetooth module. There are the following options: •...
Page 50 Operation options Levelflex FMP56, FMP57 HART Menu Submenu / Meaning parameter Setup Parameter 1 Once values have been set for these parameters, the measurement should Parameter N usually be fully configured. Advanced setup Contains additional submenus and parameters: • For more accurate configuration of the measurement (adaptation to special measuring conditions).
Page 51 Levelflex FMP56, FMP57 HART Operation options Access authorization to parameters User role Read access Write access Without access With access code Without access With access code code code (from the factory) (from the factory) Operator    Maintenance ...
Page 52 Operation options Levelflex FMP56, FMP57 HART The locking of the write access via local operation can be disabled by entering the device- specific access code. 1. After you press , the input prompt for the access code appears. 2. Enter the access code.
Page 53 Levelflex FMP56, FMP57 HART Operation options XXXXXXXXXXXXX 3 mm A0026157 1. Loosen the securing clamp. 2. Unscrew the electronics compartment cover. 3. Pull out the display module with a gentle rotational movement. To make it easier to access the write protection switch, attach the display module to the edge of the electronics compartment.
Page 54 Operation options Levelflex FMP56, FMP57 HART 4. Setting the write protection switch (WP) on the main electronics module to the ON position enables hardware write protection. Setting the write protection switch (WP) on the main electronics module to the OFF position (factory setting) disables hardware write protection.
Page 55 Levelflex FMP56, FMP57 HART Operation options 2. Select the Keylock off option in the context menu.  The keypad lock is switched off. Bluetooth® wireless technology Signal transmission via Bluetooth® wireless technology uses a cryptographic technique tested by the Fraunhofer Institute •...
Page 56 Operation options Levelflex FMP56, FMP57 HART Display symbols for the submenus Symbol Meaning Display/operat. Is displayed: • In the main menu next to the "Display/operat." selection A0018367 • In the header on the left in the "Display/operat." menu Setup Is displayed: •...
Page 57 Levelflex FMP56, FMP57 HART Operation options Measured value symbols Symbol Meaning Measured values Level A0032892 Distance A0032893 Current output A0032908 Measured current A0032894 Terminal voltage A0032895 Electronics or sensor temperature A0032896 Measuring channels Measuring channel 1 A0032897 Measuring channel 2...
Page 58 Operation options Levelflex FMP56, FMP57 HART Operating key Meaning Enter key For measured value display • Pressing the key briefly opens the operating menu. • Pressing the key for 2 s opens the context menu. In a menu, submenu • Pressing the key briefly: Opens the selected menu, submenu or parameter.
Page 59 Levelflex FMP56, FMP57 HART Operation options Numeric editor Symbol Meaning Selection of numbers from 0 to 9 … A0013998 Inserts decimal separator at the cursor position. A0016619 Inserts minus sign at the cursor position. – A0016620 Confirms selection. A0013985 Moves the input position one position to the left.
Page 60 Operation options Levelflex FMP56, FMP57 HART Moves the input position one position to the left. A0018326 Deletes one character immediately to the left of the input position. A0032906 8.3.4 Opening the context menu Using the context menu, the user can call up the following menus quickly and directly from the operational display: •...
Page 61 Levelflex FMP56, FMP57 HART Operation options 8.3.5 Envelope curve display on the display and operating module In order to assess the measuring signal, the envelope curve and - if a mapping has been recorded - the mapping curve can be shown on the display and operating module:...
Page 62 System integration Levelflex FMP56, FMP57 HART System integration Overview of the device description files HART Manufacturer ID 0x11 Device type code 0x1122 HART specification DD files Information and files available at: • www.endress.com • www.fieldcommgroup.org Measured variables via HART protocol...
Page 63 Prerequisite • Device with device display including Bluetooth • Smartphone or tablet with Endress+Hauser SmartBlue app or PC with DeviceCare from version 1.07.05 or FieldXpert SMT70 The connection has a range of up to 25 m (82 ft). The range can vary depending on environmental conditions such as attachments, walls or ceilings.
Page 64 Commissioning via SmartBlue (App) Levelflex FMP56, FMP57 HART 10.2 Envelope curve display in SmartBlue Envelope curves can be displayed and recorded in SmartBlue. In addition to the envelope curve, the following values are displayed: • D = Distance • L = Level •...
Page 65 Levelflex FMP56, FMP57 HART Commissioning using the wizard Commissioning using the wizard FieldCare and DeviceCare have a wizard that guides the user through initial commissioning. 1. Connect the device with FieldCare or DeviceCare. 2. Open the device in FieldCare or DeviceCare.
Page 66 Commissioning via operating menu Levelflex FMP56, FMP57 HART Commissioning via operating menu 12.1 Installation and function check Before commissioning the measuring point, check whether the post-installation and post- connection checks have been performed. Post-mounting check Post-connection check 12.2 Configuring the operating language...
Page 67 Levelflex FMP56, FMP57 HART Commissioning via operating menu 12.3 Configuring level measurement 20 mA 100% 4 mA A0012838  38 Configuration parameters for level measurement in bulk solids Length of probe Reference point of the measurement Distance Level Empty calibration (= zero point) Full calibration (= span) If the ε...
Page 68 Commissioning via operating menu Levelflex FMP56, FMP57 HART 10. Operation via operating tool: Navigate to: Setup → Confirm distance  Compare the distance displayed with the actual value to start recording an interference echo map if necessary. 12.4 Recording the reference echo curve After the measurement has been configured, it is recommended to record the current envelope curve as a reference echo curve.
Page 69 Levelflex FMP56, FMP57 HART Commissioning via operating menu 12.6 Configuring the current outputs 12.6.1 Factor setting of current outputs for level measurements Current output Assigned measured 4mA value 20mA value value Level linearized 0% or the corresponding 100% or the corresponding...
Page 70 Commissioning via operating menu Levelflex FMP56, FMP57 HART • Duplicate The transmitter configuration of the device is duplicated to another device using the display module. The following parameters, which characterize the individual measuring point are not transferred: • HART date code •...
Page 71 Levelflex FMP56, FMP57 HART Diagnostics and troubleshooting Diagnostics and troubleshooting 13.1 General troubleshooting 13.1.1 General errors Error Possible cause Solution Device does not respond. Supply voltage does not match Connect the correct voltage. the value indicated on the nameplate. The polarity of the supply Correct the polarity.
Page 72 Diagnostics and troubleshooting Levelflex FMP56, FMP57 HART Error Possible cause Solution Device cannot be operated via Incorrect password entered Enter the correct password, paying attention SmartBlue to lower/upper case Device cannot be operated via Password forgotten Contact Endress+Hauser Service SmartBlue (www.addresses.endress.com)
Page 73 Levelflex FMP56, FMP57 HART Diagnostics and troubleshooting Error Possible cause Solution Error in the echo tracking Deactivate echo tracking (Expert → Sensor → Echo tracking → Evaluation mode = History off). Echo lost diagnostic Noise level too high during Enter a new value for the Empty message appears after the initialization phase.
Page 74 Diagnostics and troubleshooting Levelflex FMP56, FMP57 HART Status symbols (symbol for event level) "Alarm" status  Measurement is interrupted. The signal outputs adopt the defined alarm state. A diagnostic message is generated. "Warning" status  The device continues to measure. A diagnostic message is generated.
Page 75 Levelflex FMP56, FMP57 HART Diagnostics and troubleshooting 13.2.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2...
Page 76 Diagnostics and troubleshooting Levelflex FMP56, FMP57 HART A: Via the operating menu 1. Navigate to the Diagnostics menu.  In the Actual diagnostics parameter, the diagnostic event is shown with event text. 2. On the right in the display area, hover the cursor over the Actual diagnostics parameter.
Page 77 Levelflex FMP56, FMP57 HART Diagnostics and troubleshooting C: Via the "Event list/Extended HistoROM" function Select the ("Event list/Extended HistoROM") function. Select the "Load event list" function.  The event list including remedial measures is displayed in the "Data overview" window.
Page 78 Diagnostics and troubleshooting Levelflex FMP56, FMP57 HART 13.5 List of diagnostic events Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of sensor Broken probe detected 1. Check map Alarm 2. Check sensor...
Page 79 Levelflex FMP56, FMP57 HART Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Trim 1 to 2 Carry out trim Warning Linearization Check linearization table Alarm Configuration 1. Restart device...
Page 80 Diagnostics and troubleshooting Levelflex FMP56, FMP57 HART 13.6 Event logbook 13.6.1 Event history A chronological overview of the event messages that have occurred is provided in the Event list (This submenu only exists if operating via the local display. In the case of operation via FieldCare, the event list can be displayed with the "Event list/HistoROM"...
Page 81 Levelflex FMP56, FMP57 HART Diagnostics and troubleshooting Info number Info name I1092 Embedded HistoROM deleted I1110 Write protection switch changed I1137 Electronic changed I1151 History reset I1154 Reset terminal voltage min/max I1155 Reset electronic temperature I1156 Memory error trend I1157...
Page 82 Diagnostics and troubleshooting Levelflex FMP56, FMP57 HART Date Firmware Modifications Documentation (FMP56, FMP57, HART) version Operating Instructions Description of Device Technical Information Parameters 02.2014 01.02.zz • Support of SD03 • BA01004F/00/EN/15.13 • GP01000F/00/EN/14.13 • TI01004F/00/EN/16.13 • Additional languages • BA01004F/00/EN/16.14 •...
Page 83 Levelflex FMP56, FMP57 HART Maintenance Maintenance No special maintenance work is required. 14.1 Exterior cleaning When cleaning the exterior, always use cleaning agents that do not corrode the surface of the housing and the seals. 14.2 General cleaning instructions Dirt or buildup may form on the probe depending on the application. A thin, even layer has little impact on the measurement.
Page 84 General information 15.1.1 Repair concept Under the Endress+Hauser repair concept, devices have a modular design and repairs can be carried out by Endress+Hauser Service or by properly trained customers. Spare parts are grouped into logical kits with the associated replacement instructions.
Page 85 Levelflex FMP56, FMP57 HART Repair 15.2 Spare parts • Some replaceable measuring instrument components are identified by means of a spare part nameplate. This contains information about the spare part. • In the connection compartment cover of the device there is a spare part nameplate which contains the following information: •...
Page 86 Accessories Levelflex FMP56, FMP57 HART Accessories The accessories currently available for the product can be selected at www.endress.com: 1. Select the product using the filters and search field. 2. Open the product page. 3. Select Spare parts & Accessories. 16.1 Device-specific accessories 16.1.1...
Page 87 Levelflex FMP56, FMP57 HART Accessories 299 (11.8) 202 (7.95) A0015472  44 Dimensions. Unit of measurement mm (in) Material • Protection cap; 316L (1.4404) • Bracket; 316L (1.4404) • Angle bracket; 316L (1.4404) • Clamping screw; 316L (1.4404) + carbon fiber •...
Page 88 Accessories Levelflex FMP56, FMP57 HART A0015143  46 Material; mounting bracket Bracket, 316L (1.4404) Round bracket, 316L (1.4404); screws/nuts, A4-70; distance sleeves, 316L (1.4404) Half-shells, 316 L (1.4404) Order number for accessories: 71102216 Endress+Hauser...
Page 89 Levelflex FMP56, FMP57 HART Accessories 16.1.3 Rod extension (centering device) HMP40 The rod extension (centering device) HMP40 is ordered via the Product Configurator. A0013597 Nozzle height Extension rod Centering disk Permitted temperature at lower edge of nozzle: • Without centering disk, no restriction •...
Page 90 Accessories Levelflex FMP56, FMP57 HART A0013586  47 Scope of delivery of mounting kit: Insulation sleeve Ring bolt For rope probes 4 mm (¹⁄₆ in) or 6 mm (¹⁄₄ in) with PA > steel: Diameter D = 20 mm (0.8 in)
Page 91 Levelflex FMP56, FMP57 HART Accessories Technical data • Material: • Plastic PBT • 316L/1.4404 • Aluminum • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: • SD02 (push buttons) • SD03 (touch control) •...
Page 92 Accessories Levelflex FMP56, FMP57 HART Technical data • Resistance per channel: 2 × 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold surge voltage: < 800 V • Capacitance at 1 MHz: < 1.5 pF • Nominal leakage current (8/20 μs): 10 kA •...
Page 93 For intrinsically safe HART communication with FieldCare via the USB interface For details, see "Technical Information" TI00404F Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop Order number: 51516983 For details, see "Technical Information"...
Page 94 Fieldgate FXA42, Connect Sensor FXA30B or other gateway types. SupplyCare Hosting is offered as a hosting service (Software as a Service, SaaS). In the Endress+Hauser portal, the user is provided with the data over the Internet. For details, see Technical Information TI01229S and Operating Instructions BA00050S Field Xpert SFX350 Field Xpert SFX350 is a mobile computer for commissioning and maintenance.
Page 95 Levelflex FMP56, FMP57 HART Operating menu Operating menu 17.1 Overview of the operating menu (SmartBlue) Navigation  SmartBlue  Setup →  113 Device tag →  113 Distance unit →  113 Bin type →  113 Empty calibration →...
Page 96 Operating menu Levelflex FMP56, FMP57 HART Advanced process conditions →  124 Level unit →  125 →  125 Blocking distance Level correction →  126 ‣ Linearization →  128 Linearization type →  130 →  131...
Page 97 Levelflex FMP56, FMP57 HART Operating menu Ramp at echo lost →  138 →  125 Blocking distance ‣ Current output 1 to 2 →  146 Assign current output →  146 Current span →  147 Fixed current →...
Page 98 Operating menu Levelflex FMP56, FMP57 HART Previous diagnostics →  168 Timestamp →  169 →  169 Operating time from restart Operating time →  162 ‣ Diagnostic list →  170 Diagnostics 1 to 5 →  170 →...
Page 99 Levelflex FMP56, FMP57 HART Operating menu Device type →  174 →  174 Manufacturer ID ‣ Simulation →  181 Assign measurement variable →  182 Process variable value →  182 Current output 1 to 2 simulation →  182 Value current output 1 to 2 →...
Page 100 Operating menu Levelflex FMP56, FMP57 HART 17.2 Overview of the operating menu (display module) Navigation  Operating menu Language  Setup →  113 →  113 Device tag Distance unit →  113 Bin type →  113 Empty calibration →...
Page 101 Levelflex FMP56, FMP57 HART Operating menu Advanced process conditions →  124 →  125 Level unit Blocking distance →  125 Level correction →  126 ‣ Linearization →  128 Linearization type →  130 Unit after linearization →...
Page 102 Operating menu Levelflex FMP56, FMP57 HART ‣ Probe settings →  142 Probe grounded →  142 ‣ →  144 Probe length correction Confirm probe length →  144 Present probe length →  142 ‣ Current output 1 to 2 →...
Page 103 Levelflex FMP56, FMP57 HART Operating menu ‣ Display →  156 →  156 Language Format display →  156 Value 1 to 4 display →  158 Decimal places 1 to 4 →  158 Display interval →  158 Display damping →...
Page 104 Operating menu Levelflex FMP56, FMP57 HART Configuration management →  162 Comparison result →  163 ‣ →  165 Administration ‣ Define access code →  167 Define access code →  167 Confirm access code →  167 →...
Page 105 Levelflex FMP56, FMP57 HART Operating menu Device ID →  173 →  174 Device type Manufacturer ID →  174 ‣ Measured values →  175 Distance →  115 Level linearized →  133 Output current 1 to 2 →...
Page 106 Operating menu Levelflex FMP56, FMP57 HART Last check time →  185 Level signal →  186 →  186 Launch signal Endress+Hauser...
Page 107 Levelflex FMP56, FMP57 HART Operating menu 17.3 Overview of the operating menu (operating tool) Navigation  Operating menu  Setup →  113 →  113 Device tag Distance unit →  113 Bin type →  113 Empty calibration →...
Page 108 Operating menu Levelflex FMP56, FMP57 HART Blocking distance →  125 Level correction →  126 ‣ →  128 Linearization Linearization type →  130 Unit after linearization →  131 Free text →  132 →  133...
Page 109 Levelflex FMP56, FMP57 HART Operating menu ‣ Probe settings →  142 →  142 Probe grounded Present probe length →  142 Confirm probe length →  143 ‣ Current output 1 to 2 →  146 Assign current output →...
Page 110 Operating menu Levelflex FMP56, FMP57 HART ‣ Display →  156 Language →  156 →  156 Format display Value 1 to 4 display →  158 Decimal places 1 to 4 →  158 Display interval →  158 →...
Page 111 Levelflex FMP56, FMP57 HART Operating menu Timestamp →  168 →  168 Previous diagnostics Timestamp →  169 Operating time from restart →  169 Operating time →  162 ‣ Diagnostic list →  170 Diagnostics 1 to 5 →...
Page 112 Operating menu Levelflex FMP56, FMP57 HART ‣ Data logging →  177 Assign channel 1 to 4 →  177 →  178 Logging interval Clear logging data →  178 ‣ Simulation →  181 Assign measurement variable →  182 →...
Page 113 Levelflex FMP56, FMP57 HART Operating menu 17.4 "Setup" menu • : Indicates how to navigate to the parameter using the display and operating module • : Indicates how to navigate to the parameter using operating tools (e.g. FieldCare) • : Indicates parameters that can be locked via the access code.
Page 114 Operating menu Levelflex FMP56, FMP57 HART Empty calibration  Navigation  Setup → Empty calibr. Description Distance between process connection and minimum level (0%). User entry Depending on the probe Factory setting Depending on the probe Additional information A0013180  48 Empty calibration (E) for level measurements in bulk solids.
Page 115 Levelflex FMP56, FMP57 HART Operating menu Additional information 100% A0013191  49 Full calibration (F) for level measurements in bulk solids Level Navigation  Setup → Level Description Displays measured level L (before linearization). Additional information A0013196  50 Level in case of bulk solid measurements The unit is defined in the Level unit parameter (→...
Page 116 Operating menu Levelflex FMP56, FMP57 HART Additional information A0013201  51 Distance for bulk solid measurements The unit is defined in the Distance unit parameter (→  113). Signal quality Navigation  Setup → Signal quality Description Displays the signal quality of the evaluated echo.
Page 117 Levelflex FMP56, FMP57 HART Operating menu Confirm distance  Navigation  Setup → Confirm distance Description Specify, whether the measured distance matches the real distance. Depending on the selection the device automatically sets the range of mapping. Selection • Manual map •...
Page 118 Operating menu Levelflex FMP56, FMP57 HART Present mapping Navigation  Setup → Present mapping Description Indicates up to which distance a mapping has already been recorded. Mapping end point  Navigation  Setup → Map. end point Prerequisite Confirm distance (→  117) = Manual map or Distance too small Description Specify new end of the mapping.
Page 119 Levelflex FMP56, FMP57 HART Operating menu 17.4.1 "Mapping" wizard The Mapping wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the mapping are located directly in the Setup menu (→  113).
Page 120 Operating menu Levelflex FMP56, FMP57 HART 17.4.2 "Advanced setup" submenu Navigation  Setup → Advanced setup Locking status Navigation  Setup → Advanced setup → Locking status Description Indicates the write protection with the highest priority that is currently active.
Page 121 • If no key is pressed for 10 minutes or the user goes from the navigation and editing mode back to the measured value display mode, the device automatically locks the write- protected parameters after another 60 s. Please contact your Endress+Hauser Sales Center if you lose your access code. Endress+Hauser...
Page 122 Operating menu Levelflex FMP56, FMP57 HART "Level" submenu Navigation  Setup → Advanced setup → Level Medium type  Navigation  Setup → Advanced setup → Level → Medium type Description Specify type of medium. User interface • Liquid • Solid...
Page 123 • Relative permittivity (ε value), Compendium CP01076F • The Endress+Hauser "DC Values app" (available for Android and iOS) If EOP level evaluation = Fix DC, the exact dielectric constant must be specified in the DC value parameter. The Medium property parameter therefore does not apply in this case.
Page 124 Operating menu Levelflex FMP56, FMP57 HART For "Operating mode" = "Level" and "Medium type" = "Solid" Process property Step response time / s Very fast > 100 m (333 ft) /h Fast > 10 m (33 ft) /h Standard < 10 m (33 ft) /h Medium <...
Page 125 Levelflex FMP56, FMP57 HART Operating menu Level unit  Navigation  Setup → Advanced setup → Level → Level unit Description Select level unit. Selection SI units US units • % • ft • m • in • mm Additional information The level unit may differ from the distance unit defined in the Distance unit parameter (→...
Page 126 Operating menu Levelflex FMP56, FMP57 HART A0013221  52 Blocking distance (UB) for bulk solid measurements Level correction  Navigation  Setup → Advanced setup → Level → Level correction Description Specify level correction (if required). User entry –200 000.0 to 200 000.0 % Additional information The value specified in this parameter is added to the measured level (before linearization).
Page 127 Levelflex FMP56, FMP57 HART Operating menu "Linearization" submenu 100% L‘ I‘ L‘ 100% L‘1 L‘2 L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ A0016084  53 Linearization: Conversion of the level and, if applicable, interface into a volume or a weight; the...
Page 128 Operating menu Levelflex FMP56, FMP57 HART Structure of the submenu on the local display Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type Unit after linearization Free text Maximum value Diameter Intermediate height Table mode ‣ Edit table...
Page 129 Levelflex FMP56, FMP57 HART Operating menu Structure of the submenu in the operating tool (e.g. FieldCare) Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type Unit after linearization Free text Level linearized Maximum value Diameter Intermediate height...
Page 130 Operating menu Levelflex FMP56, FMP57 HART Description of the parameters Navigation  Setup → Advanced setup → Linearization Linearization type  Navigation  Setup → Advanced setup → Linearization → Lineariz. type Description Select linearization type. Selection • None • Linear •...
Page 131 Levelflex FMP56, FMP57 HART Operating menu Meaning of the options • None The level is output in the level unit without being converted (linearized) beforehand. • Linear The output value (volume/weight) is proportional to the level L. This applies, for example, to vertical cylindrical tanks and silos.
Page 132 Operating menu Levelflex FMP56, FMP57 HART Description Select the unit for the linearized value. Selection Selection/input (uint16) • 1095 = [short Ton] • 1094 = [lb] • 1088 = [kg] • 1092 = [Ton] • 1048 = [US Gal.] • 1049 = [Imp. Gal.] •...
Page 133 Levelflex FMP56, FMP57 HART Operating menu User entry Up to 32 alphanumerical characters (letters, numbers, special characters) Level linearized Navigation  Setup → Advanced setup → Linearization → Level linearized Description Displays linearized level. Additional information This unit is defined by the Unit after linearization parameter.
Page 134 Operating menu Levelflex FMP56, FMP57 HART Intermediate height  Navigation  Setup → Advanced setup → Linearization → Intermed. height Prerequisite Linearization type (→  130) has one of the following values: • Pyramid bottom • Conical bottom • Angled bottom Description Height of the pyramid, conical or angled bottom.
Page 135 Levelflex FMP56, FMP57 HART Operating menu Conditions the linearization table must meet: • The table may consist of up to 32 pairs of values "Level - Linearized Value". • The table must be monotonic (monotonically increasing or decreasing). • The first linearization point must refer to the minimum level.
Page 136 Operating menu Levelflex FMP56, FMP57 HART Level (Semiautomatic) Navigation  Setup → Advanced setup → Linearization → Level Prerequisite • Linearization type (→  130) = Table • Table mode (→  134) = Semiautomatic Description Displays measured level (value before linearization). This value is transmitted to the table.
Page 137 Levelflex FMP56, FMP57 HART Operating menu "Safety settings" submenu Navigation  Setup → Advanced setup → Safety sett. Output echo lost  Navigation  Setup → Advanced setup → Safety sett. → Output echo lost Description Output signal in case of a lost echo.
Page 138 Operating menu Levelflex FMP56, FMP57 HART Ramp at echo lost  Navigation  Setup → Advanced setup → Safety sett. → Ramp echo lost Prerequisite Output echo lost (→  137) = Ramp at echo lost Description Slope of the ramp in the case of a lost echo...
Page 139 Levelflex FMP56, FMP57 HART Operating menu due to a level change during operation. Signals which are already in the blocking distance when the device is switched on, are ignored. This behavior is only valid if the following two conditions are met: •...
Page 140 Operating menu Levelflex FMP56, FMP57 HART "SIL/WHG confirmation" wizard The SIL/WHG confirmation wizard is only available for devices with SIL or WHG approval (Feature 590: "Additional Approval", option LA: "SIL" or LC: "WHG overfill prevention" ) which are currently not in the SIL- or WHG-locked state.
Page 141 Levelflex FMP56, FMP57 HART Operating menu "Deactivate SIL/WHG" wizard The Deactivate SIL/WHG wizard (→  141) is only visible if the device is SIL-locked or WHG-locked. For details refer to the "Functional Safety Manual" of the respective device. Navigation  Setup → Advanced setup → Deactiv. SIL/WHG Reset write protection ...
Page 142 Operating menu Levelflex FMP56, FMP57 HART "Probe settings" submenu The Probe settings submenu helps to ensure that the device correctly assigns the end of probe signal within the envelope curve. The assignment is correct if the length of probe indicated by the device matches the acutal lenght of the probe. The automatic probe length correction can only be performed if the probe is installed in the vessel and is completely uncovered (no medium) over the entire length.
Page 143 Levelflex FMP56, FMP57 HART Operating menu Confirm probe length  Navigation  Setup → Advanced setup → Probe settings → Confirm length Description Specify whether the value displayed in the Present probe length parameter matches the actual length of the probe. Based on this input, the device performs a probe length correction.
Page 144 Operating menu Levelflex FMP56, FMP57 HART "Probe length correction" wizard The Probe length correction wizard is only available when operating via the local display. When operating via an operating tool, the parameters for probe length correction are located directly in the Probe settings submenu (→  142).
Page 145 Levelflex FMP56, FMP57 HART Operating menu Present probe length  Navigation  Setup → Advanced setup → Probe settings → Prob.length corr → Pres. length Description • In most cases: Displays the length of the probe according to the currently measured end-of-probe signal.
Page 146 Operating menu Levelflex FMP56, FMP57 HART "Current output 1 to 2" submenu The Current output 2 submenu (→  146) is only available for devices with two current outputs. Navigation  Setup → Advanced setup → Curr.output 1 to 2 Assign current output 1 to 2 ...
Page 147 Levelflex FMP56, FMP57 HART Operating menu Current span  Navigation  Setup → Advanced setup → Curr.output 1 to 2 → Current span Description Determines the current range used to transmit the measured value. ‘4…20mA’: Measured variable: 4 …20 mA ‘4…20mA NAMUR’:...
Page 148 Operating menu Levelflex FMP56, FMP57 HART Damping output  Navigation  Setup → Advanced setup → Curr.output 1 to 2 → Damping out. Description Reaction time of the output signal on fluctuation in the measured value. User entry 0.0 to 999.9 s...
Page 149 Levelflex FMP56, FMP57 HART Operating menu Additional information Meaning of the options • Min. The current output adopts the value of the lower alarm level according to the Current span parameter (→  147). • Max. The current output adopts the value of the upper alarm level according to the Current span parameter (→...
Page 150 Operating menu Levelflex FMP56, FMP57 HART "Switch output" submenu The Switch output submenu (→  150) is only available for devices with a switch output. Navigation  Setup → Advanced setup → Switch output Switch output function  Navigation  Setup → Advanced setup → Switch output → Switch out funct Description Defines the function of the switch output.
Page 151 Levelflex FMP56, FMP57 HART Operating menu Assign status  Navigation  Setup → Advanced setup → Switch output → Assign status Prerequisite Switch output function (→  150) = Digital Output Description Assigns a Discrete Output Block or an Advanced Diagnostic Block to the switch output.
Page 152 Operating menu Levelflex FMP56, FMP57 HART Selection • Alarm • Alarm or warning • Warning Switch-on value  Navigation  Setup → Advanced setup → Switch output → Switch-on value Prerequisite Switch output function (→  150) = Limit Description Defines the switch-on point.
Page 153 Levelflex FMP56, FMP57 HART Operating menu A0015586 Switch-on value Switch-off value Output closed (conductive) Output opened (non-conductive) Switch-on delay  Navigation  Setup → Advanced setup → Switch output → Switch-on delay Prerequisite • Switch output function (→  150) = Limit •...
Page 154 Operating menu Levelflex FMP56, FMP57 HART Switch-off delay  Navigation  Setup → Advanced setup → Switch output → Switch-off delay Prerequisite • Switch output function (→  150) = Limit • Assign limit (→  151) ≠ Off Description Defines the delay applied before the output is switched off.
Page 155 Levelflex FMP56, FMP57 HART Operating menu Additional information Meaning of the options • No The behavior of the switch output is as described above. • Yes The states Open and Closed are inverted as compared to the description above. Endress+Hauser...
Page 156 Operating menu Levelflex FMP56, FMP57 HART "Display" submenu Display submenu is only visible if a display module is connected to the device. Navigation  Setup → Advanced setup → Display Language Navigation  Setup → Advanced setup → Display → Language Description Set display language.
Page 157 Levelflex FMP56, FMP57 HART Operating menu Additional information 4841.000 Â A0019963  56 "Format display" = "1 value, max. size" Â 93.5 % Â 159.0 A0019964  57 "Format display" = "1 bargraph + 1 value" Â 93.5 Â 159.0 A0019965 ...
Page 158 Operating menu Levelflex FMP56, FMP57 HART Value 1 to 4 display  Navigation  Setup → Advanced setup → Display → Value 1 display Description Select the measured value that is shown on the local display. Selection • Level linearized •...
Page 159 Levelflex FMP56, FMP57 HART Operating menu Additional information This parameter is only relevant if the number of selected measuring values exceeds the number of values the selected display format can display simultaneously. Display damping  Navigation  Setup → Advanced setup → Display → Display damping Description Set display reaction time to fluctuations in the measured value.
Page 160 Operating menu Levelflex FMP56, FMP57 HART Separator  Navigation  Setup → Advanced setup → Display → Separator Description Select decimal separator for displaying numerical values. Selection • . • , Number format  Navigation  Setup → Advanced setup → Display → Number format Description Choose number format for the display.
Page 161 Levelflex FMP56, FMP57 HART Operating menu Selection • Disable • Enable Additional information Meaning of the options • Disable Switches the backlight off. • Enable Switches the backlight on. Regardless of the setting in this parameter the backlight may be automatically switched off by the device if the supply voltage is too low.
Page 162 Operating menu Levelflex FMP56, FMP57 HART "Configuration backup display" submenu This submenu is only visible if a display module is connected to the device. The configuration of the device can be saved to the display module at a certain point of time (backup).
Page 163 Levelflex FMP56, FMP57 HART Operating menu Additional information Meaning of the options • Cancel No action is executed and the user exits the parameter. • Execute backup A backup copy of the current device configuration in the HistoROM (built-in in the device) is saved to the display module of the device.
Page 164 Operating menu Levelflex FMP56, FMP57 HART Additional information Meaning of the display options • Settings identical The current device configuration of the HistoROM is identical to the backup copy in the display module. • Settings not identical The current device configuration of the HistoROM is not identical to the backup copy in the display module.
Page 165 Enter access code parameter (→  121). Please contact your Endress+Hauser Sales Center if you lose the access code. If operating via the local display: the new access code is only valid once it has been confirmed in the Confirm access code parameter (→...
Page 166 Operating menu Levelflex FMP56, FMP57 HART • Of customer settings All customer parameters are reset to their factory setting. Service parameters, however, remain unchanged. • To transducer defaults Every measurment-related parameter is reset to its factory setting. Service parameters and communication-related parameters, however, remain unchanged.
Page 167 Levelflex FMP56, FMP57 HART Operating menu "Define access code" wizard The Define access code wizard is only available when operating via the local display. When operating via an operating tool, the Define access code parameter is located directly in the Administration submenu. The Confirm access code parameter is not available for operation via operating tool.
Page 168 Operating menu Levelflex FMP56, FMP57 HART 17.5 "Diagnostics" menu Navigation  Diagnostics Actual diagnostics Navigation  Diagnostics → Actual diagnos. Description Displays current diagnostic message. Additional information The display consists of: • Symbol for event behavior • Code for diagnostic behavior •...
Page 169 Levelflex FMP56, FMP57 HART Operating menu Timestamp Navigation  Diagnostics → Timestamp Description Shows the timestamp of the previous diagnostic message. Operating time from restart Navigation  Diagnostics → Time fr. restart Description Displays the time the device has been in operation since the last device restart.
Page 170 Operating menu Levelflex FMP56, FMP57 HART 17.5.1 "Diagnostic list" submenu Navigation  Diagnostics → Diagnostic list Diagnostics 1 to 5 Navigation  Diagnostics → Diagnostic list → Diagnostics 1 Description Display the current diagnostics messages with the highest to fifth-highest priority.
Page 171 Levelflex FMP56, FMP57 HART Operating menu 17.5.2 "Event logbook" submenu The Event logbook submenu is only available when operating via the local display. When operating via FieldCare, the event list can be displayed in the FieldCare function "Event List / HistoROM".
Page 172 Shows the serial number of the measuring device. Additional information Uses of the serial number • To identify the device quickly, e.g. when contacting Endress+Hauser. • To obtain specific information on the device using the Device Viewer: www.endress.com/deviceviewer The serial number is also indicated on the nameplate.
Page 173 Levelflex FMP56, FMP57 HART Operating menu Order code  Navigation  Diagnostics → Device info → Order code Description Shows the device order code. User interface Character string comprising numbers, letters and special characters Additional information The order code is generated from the extended roder code, which defines all device features of the product structure.
Page 174 Operating menu Levelflex FMP56, FMP57 HART Device type Navigation  Diagnostics → Device info → Device type Description Shows the device type with which the measuring device is registered with the HART Communication Foundation. Additional information Manufacturer ID Navigation  Diagnostics → Device info → Manufacturer ID...
Page 175 Levelflex FMP56, FMP57 HART Operating menu 17.5.4 "Measured values" submenu Navigation  Diagnostics → Measured val. Distance Navigation  Diagnostics → Measured val. → Distance Description Displays the measured distance D between the reference point (lower edge of the flange or threaded connection) and the level.
Page 176 Operating menu Levelflex FMP56, FMP57 HART Measured current 1 Navigation  Diagnostics → Measured val. → Measur. curr. 1 Prerequisite Only available for current output 1 Description Shows the current value of the current output which is currently measured. Terminal voltage 1 Navigation ...
Page 177 Levelflex FMP56, FMP57 HART Operating menu 17.5.5 "Data logging" submenu Navigation  Diagnostics → Data logging Assign channel 1 to 4  Navigation  Diagnostics → Data logging → Assign chan. 1 to 4 Description Assign a process variable to logging channel.
Page 178 Operating menu Levelflex FMP56, FMP57 HART Logging interval  Navigation  Diagnostics → Data logging → Logging interval  Diagnostics → Data logging → Logging interval Description Define the logging interval tlog for data logging. This value defines the time interval between the individual data points in the memory.
Page 179 Levelflex FMP56, FMP57 HART Operating menu "Display channel 1 to 4" submenu The Display channel 1 to 4 submenus are only available for operation via the local display. When operating via FieldCare, the logging diagram can be displayed in the FieldCare function "Event List / HistoROM"...
Page 180 Operating menu Levelflex FMP56, FMP57 HART 17.5.6 "Simulation" submenu The Simulation submenu is used to simulate specific measuring values or other conditions. This helps to check the correct configuration of the device and connected control units. Conditions which can be simulated...
Page 181 Levelflex FMP56, FMP57 HART Operating menu Structure of the submenu Navigation  Expert → Diagnostics → Simulation ‣ Simulation Assign measurement variable →  182 Process variable value →  182 Current output 1 to 2 simulation →  182 Value current output 1 to 2 →...
Page 182 Operating menu Levelflex FMP56, FMP57 HART Description of parameters Navigation  Expert → Diagnostics → Simulation Assign measurement variable  Navigation  Expert → Diagnostics → Simulation → Assign meas.var. Description Defines the process variable to be simulated. Selection • Off •...
Page 183 Levelflex FMP56, FMP57 HART Operating menu Selection • Off • On Additional information An active simulation is indicated by a diagnostic message of the Function check (C) category. Value current output 1 to 2  Navigation  Expert → Diagnostics → Simulation → Value curr.out 1 to 2 Prerequisite Current output simulation (→...
Page 184 Operating menu Levelflex FMP56, FMP57 HART Device alarm simulation  Navigation  Expert → Diagnostics → Simulation → Dev. alarm sim. Description Switch the device alarm on and off. Selection • Off • On Additional information When selecting the On option, the device generates an alarm. This helps to check the correct output behavior of the device in the case of an alarm.
Page 185 Levelflex FMP56, FMP57 HART Operating menu 17.5.7 "Device check" submenu Navigation  Diagnostics → Device check Start device check  Navigation  Diagnostics → Device check → Start dev. check Description Start a device check. Selection • No • Yes Additional information In the case of a lost echo a device check can not be performed.
Page 186 Operating menu Levelflex FMP56, FMP57 HART Level signal Navigation  Diagnostics → Device check → Level signal Prerequisite Device check has been performed. Description Displays result of the device check for the level signal. User interface • Check not done •...
Page 187 Levelflex FMP56, FMP57 HART Operating menu 17.5.8 "Heartbeat" submenu The Heartbeat submenu is only available via FieldCare or DeviceCare. It contains the wizards which are part of the Heartbeat Verification and Heartbeat Monitoring application packages. Detailed description SD01872F Navigation  Diagnostics → Heartbeat...
Page 188 Index Levelflex FMP56, FMP57 HART Index Deactivate SIL/WHG (Wizard) ....141 Decimal places 1 (Parameter) ....158 Access authorization to parameters Decimal places menu (Parameter) .
Page 189 Levelflex FMP56, FMP57 HART Index Event list (Submenu) ......171 Locking status ......56 Event logbook (Submenu) .
Page 190 Index Levelflex FMP56, FMP57 HART Repair concept ......84 Switch output (Submenu) ....150 Replacing a device .
Page 192 *71664104* 71664104 www.addresses.endress.com...

This manual is also suitable for:

Levelflex fmp57
