Tensile loading capacity of rope probe and breaking load (silo ceiling)
The ceiling of the silo must be designed to withstand the maximum breaking load.
FMP56
Rope 4 mm (¹⁄₆ in) 316
• Tensile loading capacity 12 kN
• Max. breaking load 20 kN
Rope 6 mm (¹⁄₄ in) PA>steel
• Tensile loading capacity 12 kN
• Max. breaking load 20 kN
FMP57
Rope 4 mm (¹⁄₆ in) 316
• Tensile loading capacity 12 kN
• Max. breaking load 20 kN
Rope 6 mm (¹⁄₄ in) 316
• Tensile loading capacity 30 kN
• Max. breaking load 42 kN
Rope 6 mm (¹⁄₄ in) PA>steel
• Tensile loading capacity 12 kN
• Max. breaking load 20 kN
Rope 8 mm (¹⁄₃ in) PA>steel
• Tensile loading capacity 30 kN
• Max. breaking load 42 kN
Lateral loading capacity (flexural strength) of rod probes
FMP57
Rod 16 mm (0.63 in) 316L
Flexural strength 30 Nm
6.1.4 Information concerning the process connection
Probes are mounted on the process connection with threaded connections or flanges.
If there is the danger with this installation that the probe end moves so much that it
occasionally touches the vessel floor or cone, the probe may need to be shortened at
the lower end and fixed in place.
Threaded connection

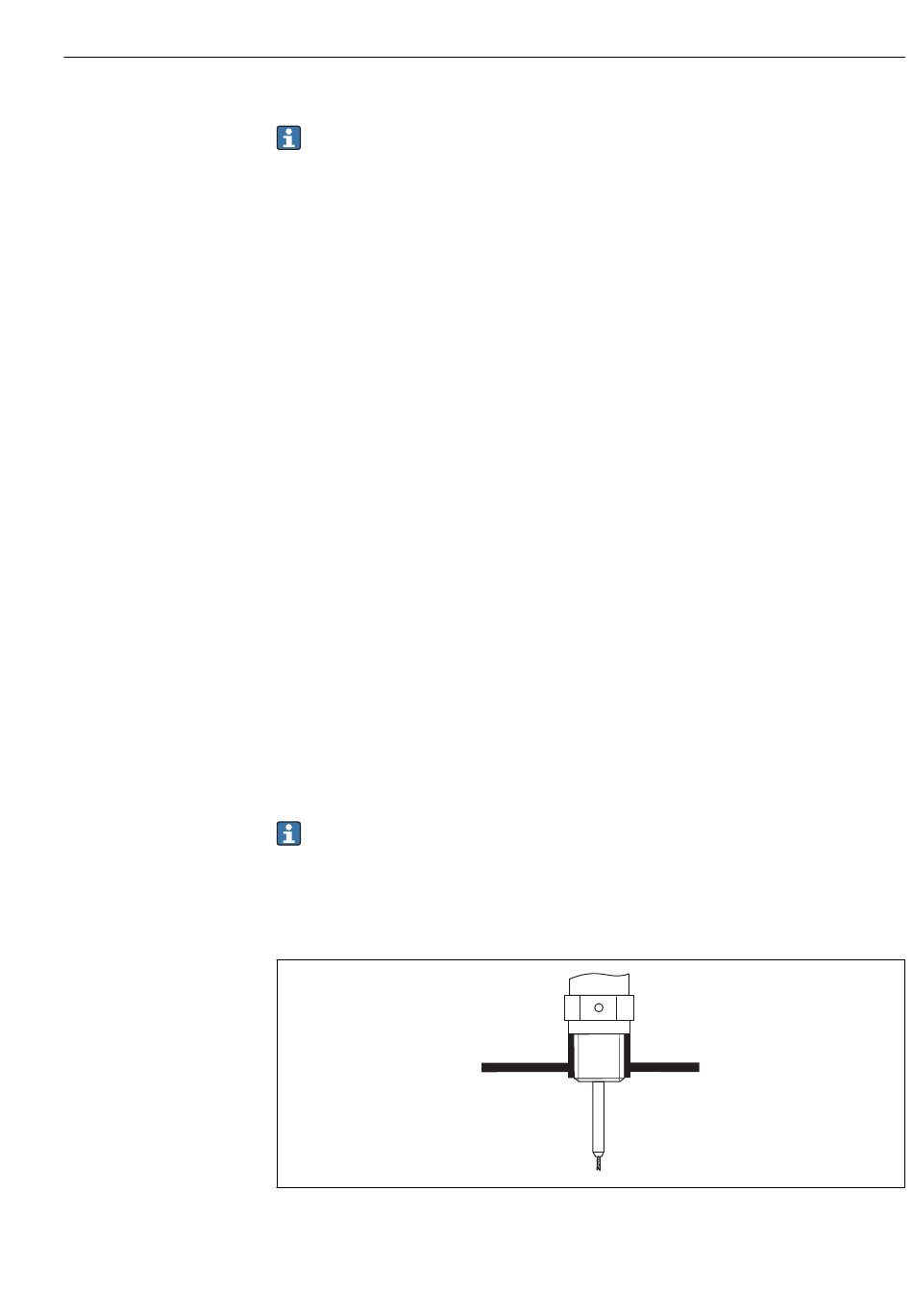

 8 Mounting with threaded connection; flush with the vessel ceiling
Installation
A0015121
