Installation
26

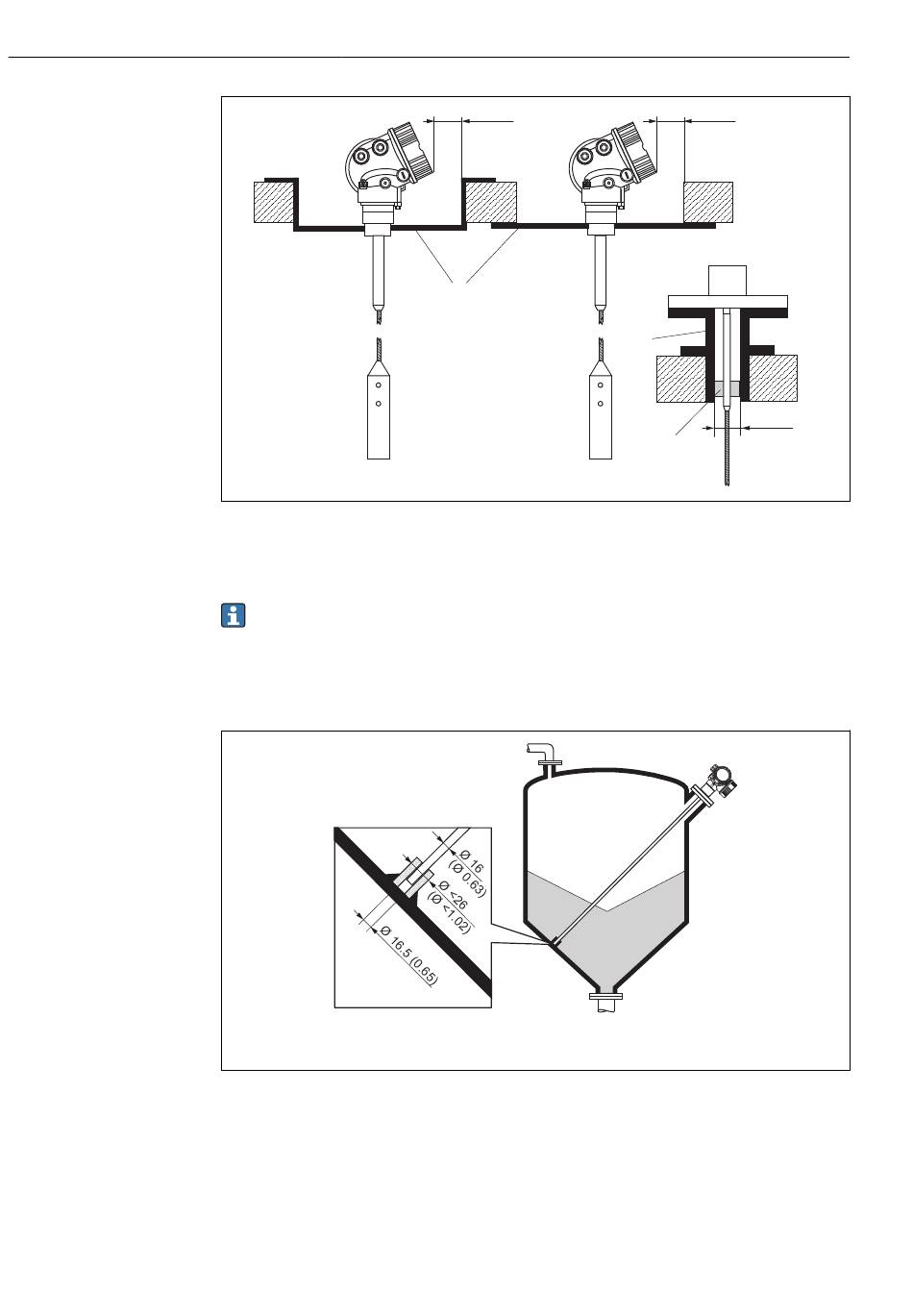

1 Metal plate
2 Metal pipe
3 Rod extension/centering device HMP40 (see "Accessories")
Installation with rod extension/centering device (accessory):
Strong dust generation can lead to build-up behind the centering disk. This can result
in interference echoes. For other installation options, please contact Endress+Hauser.
Mounting from the side
• If installation from above is not possible, the device can also be mounted from the side
• Always secure the rope probe in this case
• Support the rod and coaxial probe if the lateral load-bearing capacity is exceeded
• Only secure rod probes at the end of the probe
Levelflex FMP56, FMP57 HART
100
≥
4
≥
1
100
≥
4
≥
2
ø80...150
(ø3.2...6)
3
mm (in)
mm (in)
