Configuration Tools

6.1

MyDrive® Insight is a platform-independent software tool for the commissioning, engineering, and monitoring drives. MyDrive® Insight is

also used to configure the parameters of the drive.

MyDrive® Insight is the only tool to set up the standard safety-related functions and features of iC7 drives. Advanced safety functions and

safe fieldbuses require MyDrive® Insight.

For detailed information on MyDrive® Insight features, see the online help in MyDrive® Insight.

6.2

iC7 drives are equipped with mandatory and configurable security features that prevent unauthorized access to the drive, ensure secure

connectivity to the drive, and protect the drive against unauthorized software modifications.

For more details on the security features included in the application software, refer to application software documentation.

Configurable security features can be adjusted according to application requirements. The parameters related to safety are password-

protected.

6.3

Use these instructions to connect the drive or several drives to a PC with an RJ45 cable.

Connect an RJ45 cable to the PC.

To connect several drives at the same time, use an Ethernet switch between the PC and the control unit.

Ethernet switch

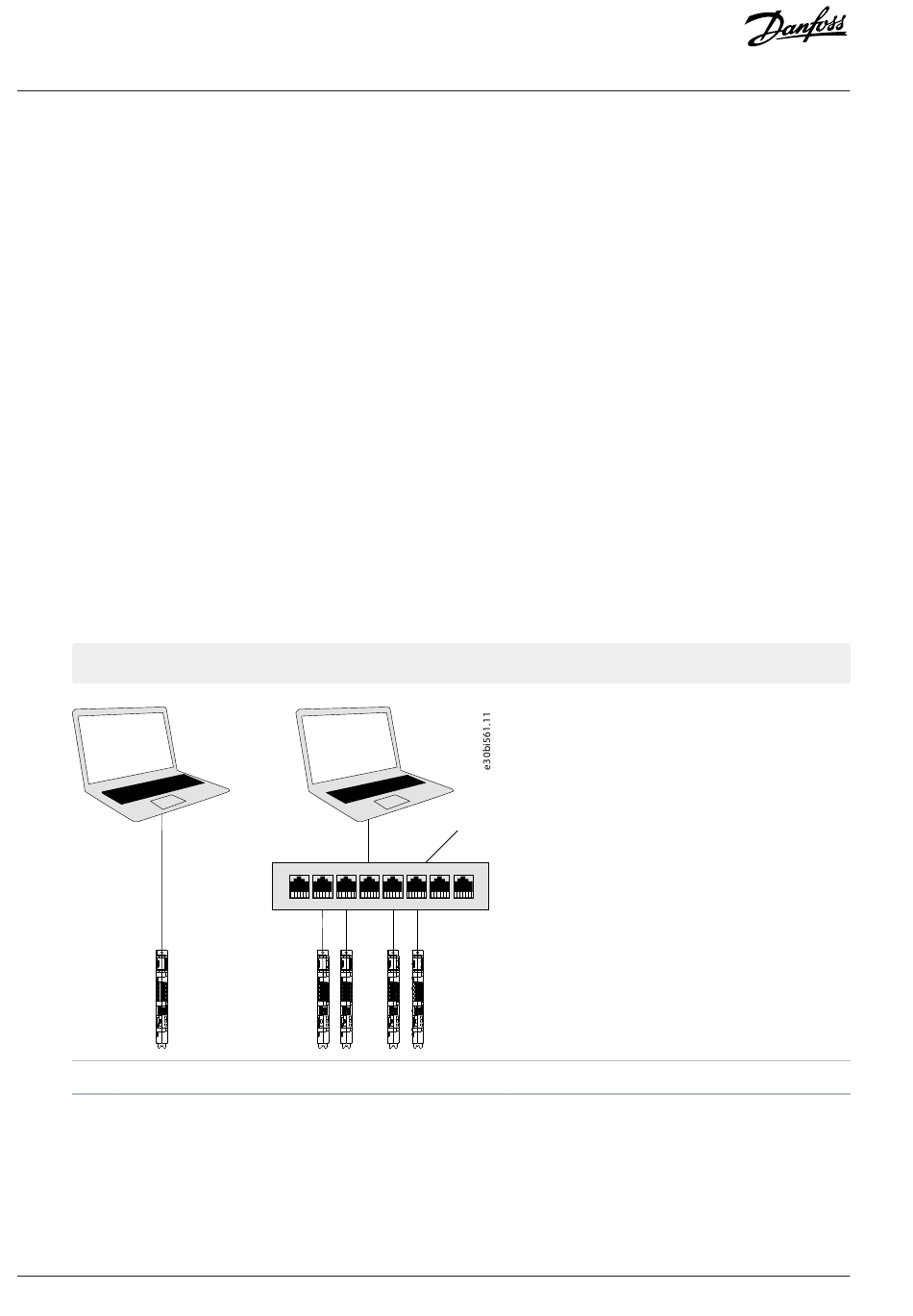

Figure 8: Connecting the Drive to a PC

Connect the cable coming from the PC or from the Ethernet switch to the Ethernet port X0 on the control unit of the drive.

See the Application Guide for information on the next steps.
