Chapter 4 — Media Load
28 EasyCoder PF2i Bar Code Label Printer User's Guide (Fingerprint Version)

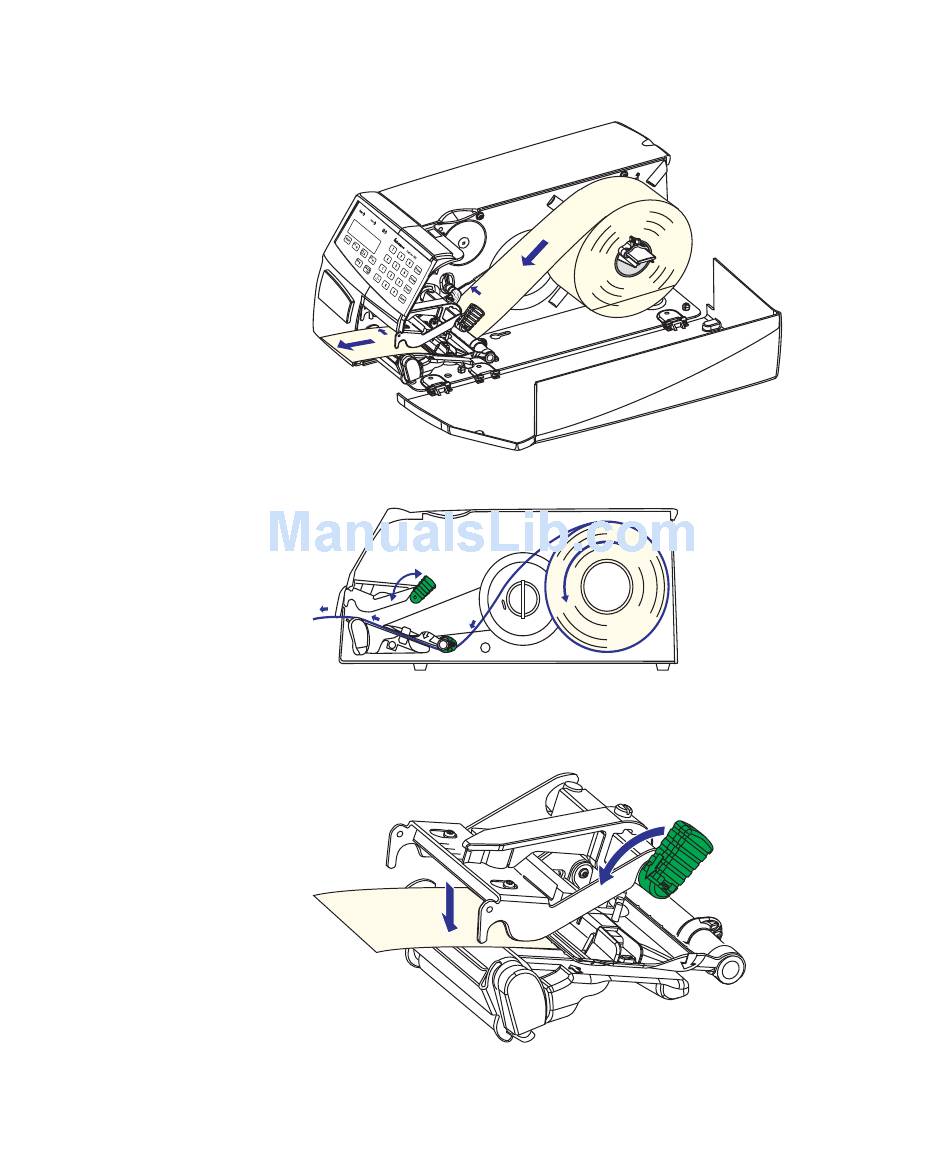

5 Route the media through the print mechanism. Then push it
inwards as far as it will go.
6 This diagram shows the media path.
7 Turn the printhead lift lever counterclockwise to engage the
printhead.
