Media

Non-Adhesive Strip

EasyCoder PF2i Bar Code Label Printer User's Guide (Fingerprint Version)
The maximum recommended media thickness is 175μm (0.007
inches). Thicker media may be used, but print quality will be
reduced. The stiffness is also important and must be balanced
against thickness to maintain print quality.
Media rolls to be loaded inside the printer should be wound with
the printable side facing outwards.
The media supply must not be exposed to dust, sand, grit, etc.
Any hard particles, however small, can damage the printhead.
⇐ ⇒

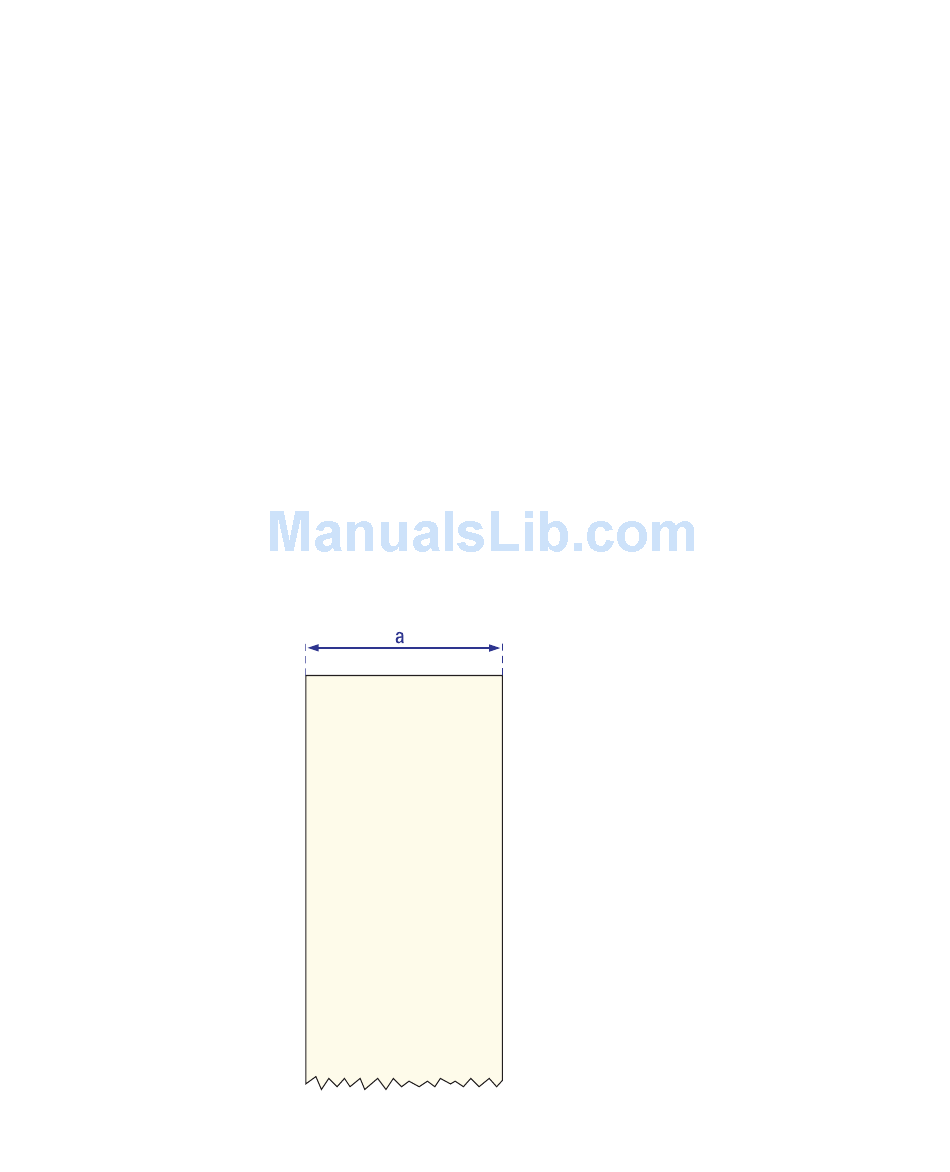

a Media Width
Maximum: 60.0 mm (2.36 inches)
Minimum (standard): 25.0 mm (1.00 inches)
Minimum (quick-load): 40.0 mm (1.57 inches)
Media Type Setup
• Fix length strip
• Var length strip
NON-ADHESIVE
STRIP
Appendix B — Media Specifications
135
