Chapter 11 — Maintenance
108 EasyCoder PF2i Bar Code Label Printer User's Guide (Fingerprint Version)
Isopropyl alcohol [(CH 3)2CHOH; CAS 67-63-0] is a highly
flammable, moderately toxic, and mildly irritating substance.

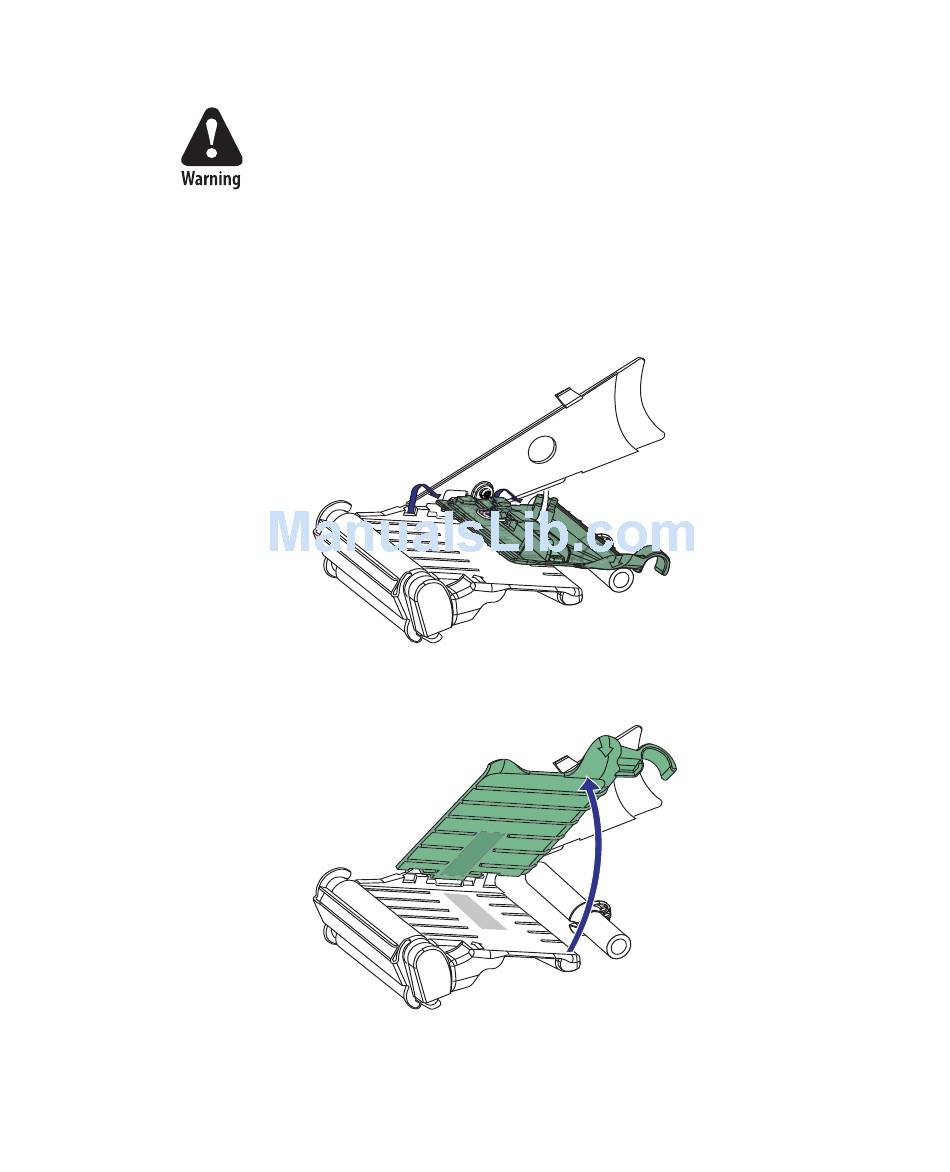

To clean the media guides
1 Lift the inner part of the upper guide and pull it outwards,
disengaging it from the lower guide. Take care not to damage
the cable.
2 Tilt the upper guide upwards and clean the areas marked with
gray. After cleaning, reassemble in reverse order.
